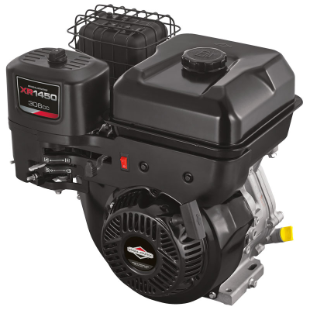

XR1450

Briggs & Stratton general purpose horizontal shaft engines are built to be tough, reliable and efficient. Feature for feature, they offer you the best value available. The XR1450 engine is ideal for tillers, generators, pressure washers, and water pumps.

FIND A DEALER

Product Details

Lo-Tone™ Muffler

Delivers low noise and good tonal quality

Magnetron® Electronic Ignition System

Ensures maintenance-free, easy starting

Cartridge Air Cleaner with foam pre-cleaner (dual element)

Provides improved protection against airborne debris entering the engine

Mechanical Governor

Controls the engine speed to deliver more usable power under heavy usage

Cast Iron Sleeve

Adds integrity and durability that withstand wear and abuse while providing improved oil control.

OHV Technology

Optimized performance that delivers longer engine life and improved fuel economy

Optional Electric Start

Provides simple key starting

Dual Ball Bearings

Provides added durability and extends engine life

For More Information

Visit our Glossary of Engine Terms

Higher Torque

Provides more power resulting in improved equipment productivity

19.66 Gross Torque*
Engine Technology Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number 19N1
Gross Torque* (Nm) @ 2'600 rpm 19.66
Displacement (cc) 306
Cylinder Cast Iron Sleeve
Bore (mm) 82.0
Stroke (mm) 52.0
Fuel Tank Capacity (l) 5.3
Oil Capacity (l) 1.1
Dry Weight (kg) 25.0
Dimensions Length (mm) 327
Dimensions Width (mm) 309
Dimensions Height (mm) 442

* Power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
** Power levels are stated gross power (horsepower) per SAE J1940 as rated by Briggs & Stratton.
