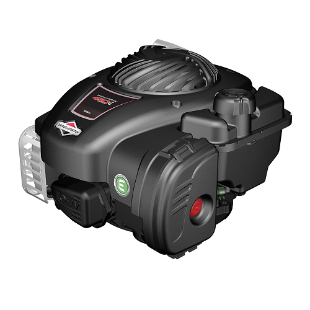

450E Series™

The 400E - 500E SERIES engine provides the best-in-class performance in this category of engines. It incorporates the latest engine design technologies ensuring optimal torque and efficiency, resulting in lower emissions. These engines are ideal for powering lawnmowers for gardens up to 600 square meters.

briggsandstratton /

Product Details

Oiled Foam Air Cleaner

Provides protection against airborne debris entering the engine

Lo-Tone™ Muffler

Delivers low noise and good tonal quality

OHV Technology

Optimized performance that delivers longer engine life and improved fuel economy

Magnetron® Electronic Ignition System

Ensures maintenance-free, easy starting

For More Information

Visit our Glossary of Engine Terms

Mechanical Governor

Controls the engine speed to deliver more usable power under heavy usage

Low Permeation Fuel Lines

More environmentally friendly

Splash Lubrication

Ensures adequate lubrication throughout the crankcase during normal operating conditions.

Float Feed Carburetor

Optimized fuel delivery for improved startability and superior performance

6.10 Gross Torque*
Engine Technology Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number 08P5
Gross Torque* (Nm) @ 2'600 rpm 6.10
Displacement (cc) 125
Cylinder Aluminum
Bore (mm) 60.0
Stroke (mm) 44.5
Fuel Tank Capacity (l) 0.8
Oil Capacity (l) 0.47
Dry Weight (kg) 8.2
Dimensions Length (mm) 347
Dimensions Width (mm) 310
Dimensions Height (mm) 244

* Power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
** Power levels are stated gross power (horsepower) per SAE J1940 as rated by Briggs & Stratton.
