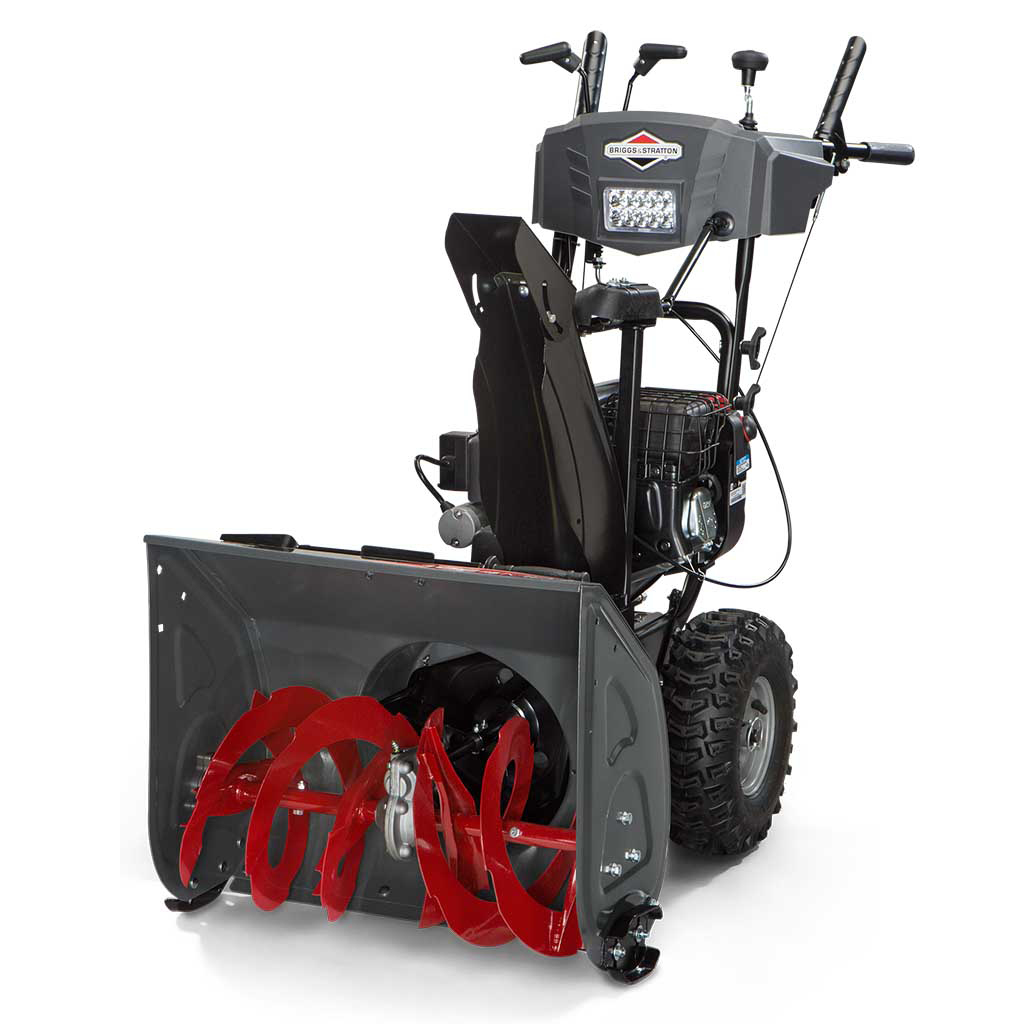

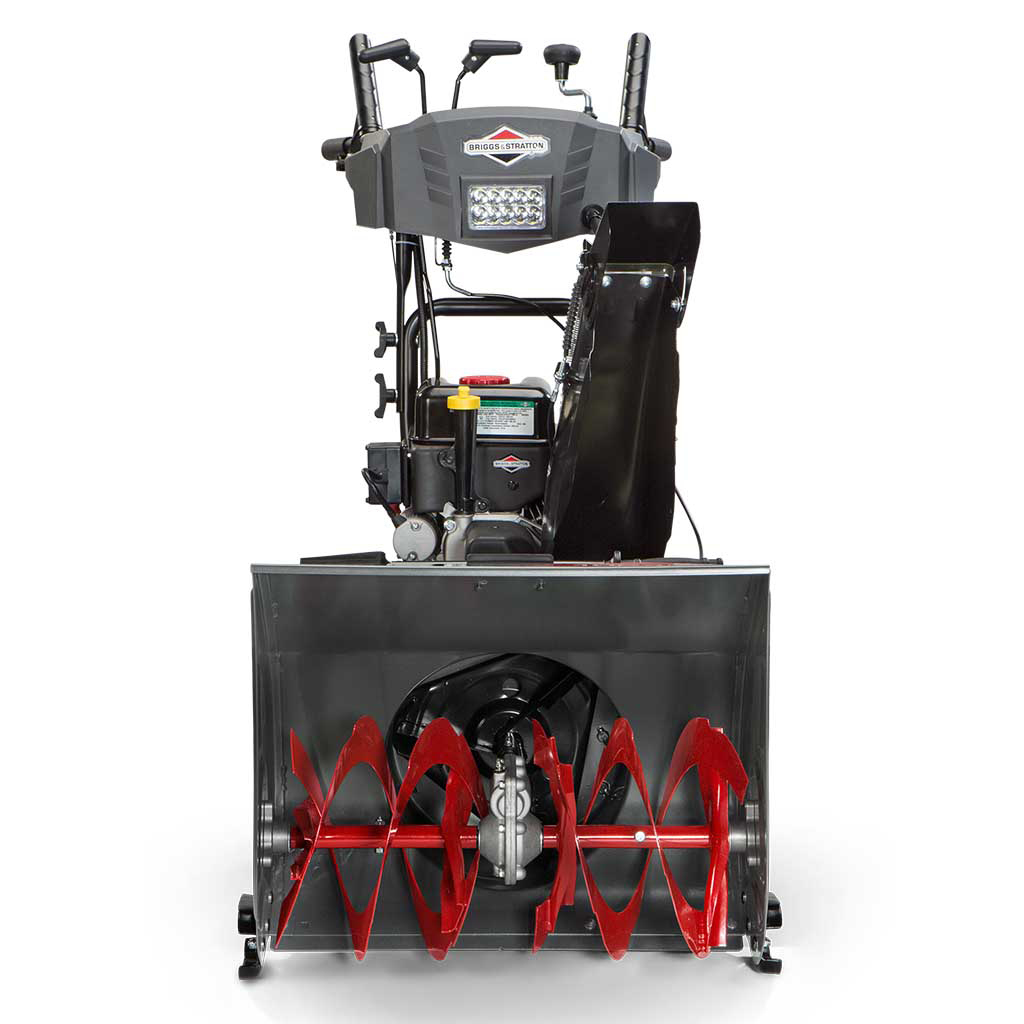

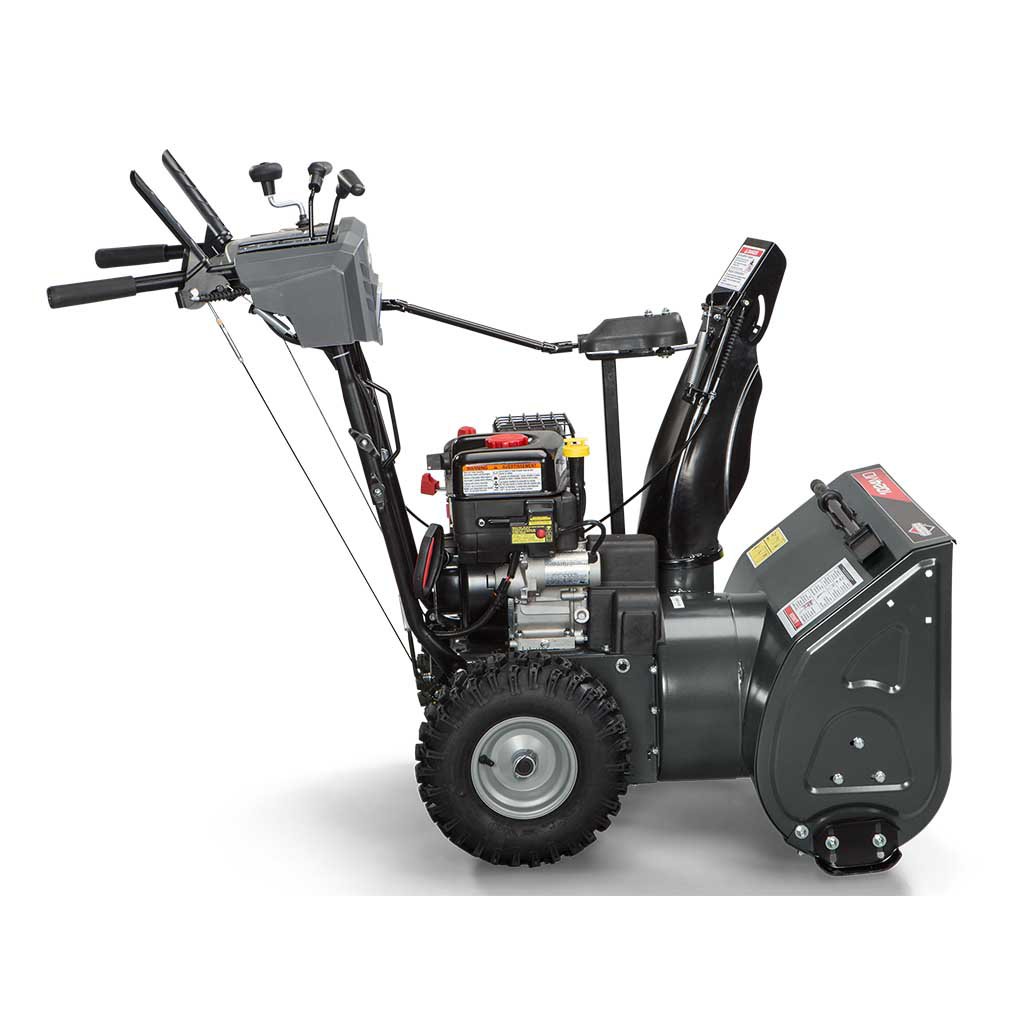

24" / 9.5 TP* / Free Hand™ Control
Dual-Stage Snow Blower
Equipped with a Briggs & Stratton 950 Snow Series™ Engine, the 24” Standard Series two-stage snow blower is perfect for moderate to heavy snow on medium driveways and pathways.Gross Torque (ft-lbs)
9.5
Clearing Width
24"
Throwing Distance
40'
Engine Displacement
208cc
Features
Briggs & Stratton 950 Snow Series™ Engine
Specially designed to start strong (down to -20°F**) and power through in the toughest winter conditions, this engine offers uncompromised power and displacement to help you get the job done. Plus, oversized controls provide mitten-friendly operation.
Manual Chute Rotation
Chute rotation control is located on the control panel and easily adjust the direction the snow is thrown from left-to-right.
Push Button Electric Start
Push button electric starting makes for quick and easy starting down to -20°F***.

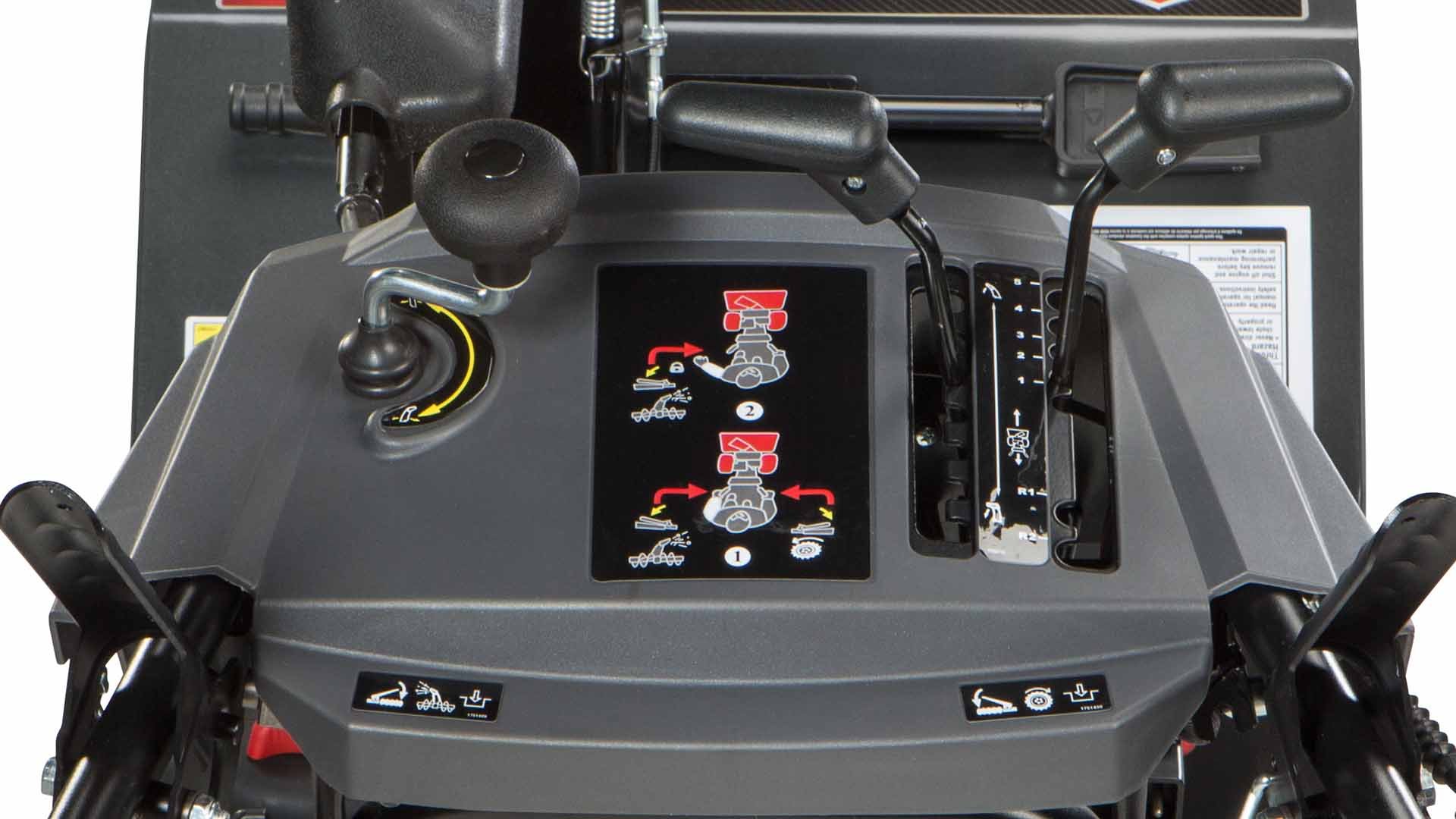

Friction Disc Drive Transmission
This is a self-propelled snowblower with six forward and two reverse speeds.
LED Headlight
An LED headlight is integrated into the controls and provides better visibility.
Free Hand™ Control
Free Hand™ Control offers one-handed operation of the snowblower, allowing you a free hand to rotate the chute or adjust the speed.
Sturdy Construction
Durable steel frame and chute and notched steel auger can take on snow and ice with ease.
Specifications
| 1696614 | |
| Fuel Tank Capacity (gal) | 0.8 |
| Engine Brand | Briggs & Stratton |
| Torque (ft-lbs) | 9.5 |
| Displacement (cc) | 208.0 |
| US MSRP (Manufacturer Suggested Retail Price) | 999 |
| Clearing Width (in) | 24.0 |
| Throwing Distance (ft) | 40.0 |
| Intake Height (in) | 20.0 |
| Auger Diameter (in) | 12.0 |
| Impeller Diameter (in) | 12.0 |
| Auger Type | Notched Steel |
| Auger Gear Case Material | Aluminum |
| Number of Impeller Blades | 3.0 |
| Skid Shoes | Poly Reversible |
| Chute Material | Steel |
| Chute Deflector | Remote |
| Chute Rotation | 200° Dash Mount Crank |
| Drive Type | Friction Disc Drive |
| Ground Speed Fwd (mph) | 6.0 |
| Ground Speed Rev (mph) | 2.0 |
| Tire Size/Thread (in) | 14 x 4 |
| FreeHand™ Control | Standard |
| Dual Trigger Steering | No |
| Headlight | Single LED |
| Storage Cover | Optional |
| Commercial Warranty (Product) | 90-Day |
| Consumer Warranty (Product) | 3 Year |
