24" / 9.5 Gross Torque* / Friction Disc Drive

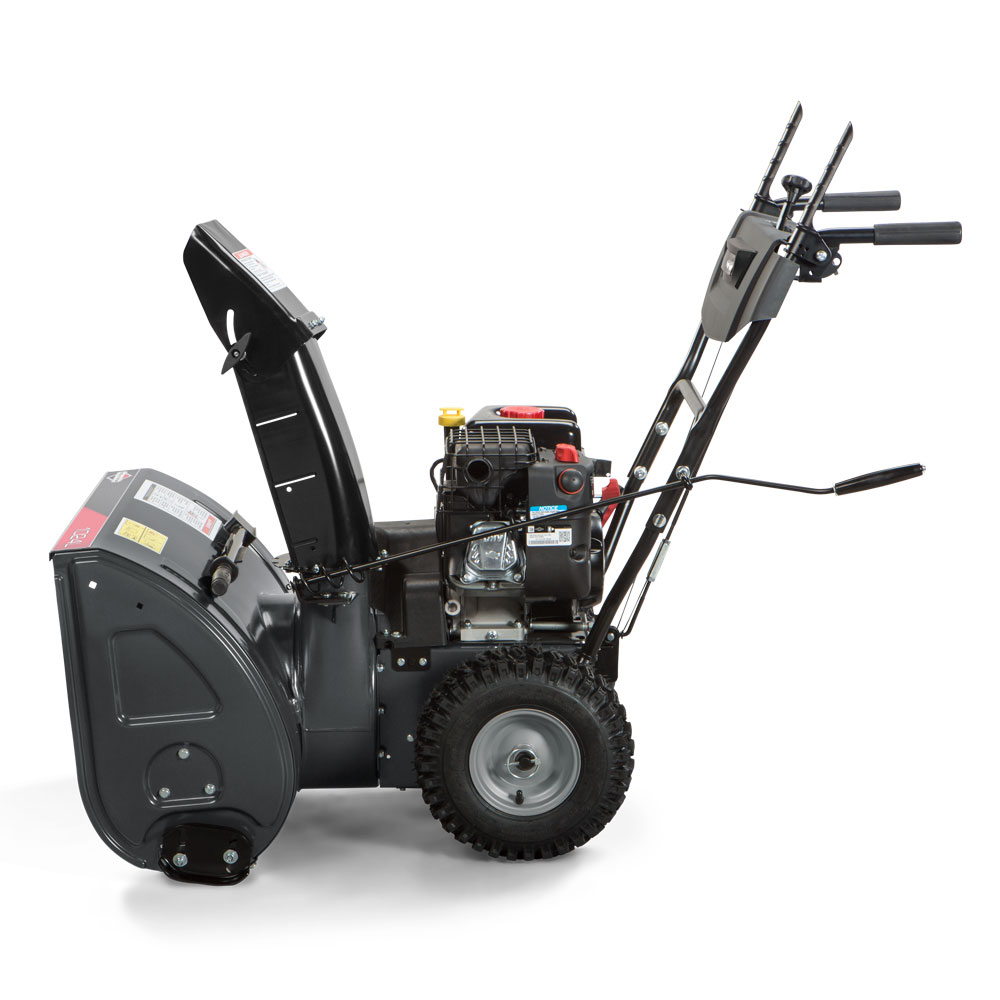

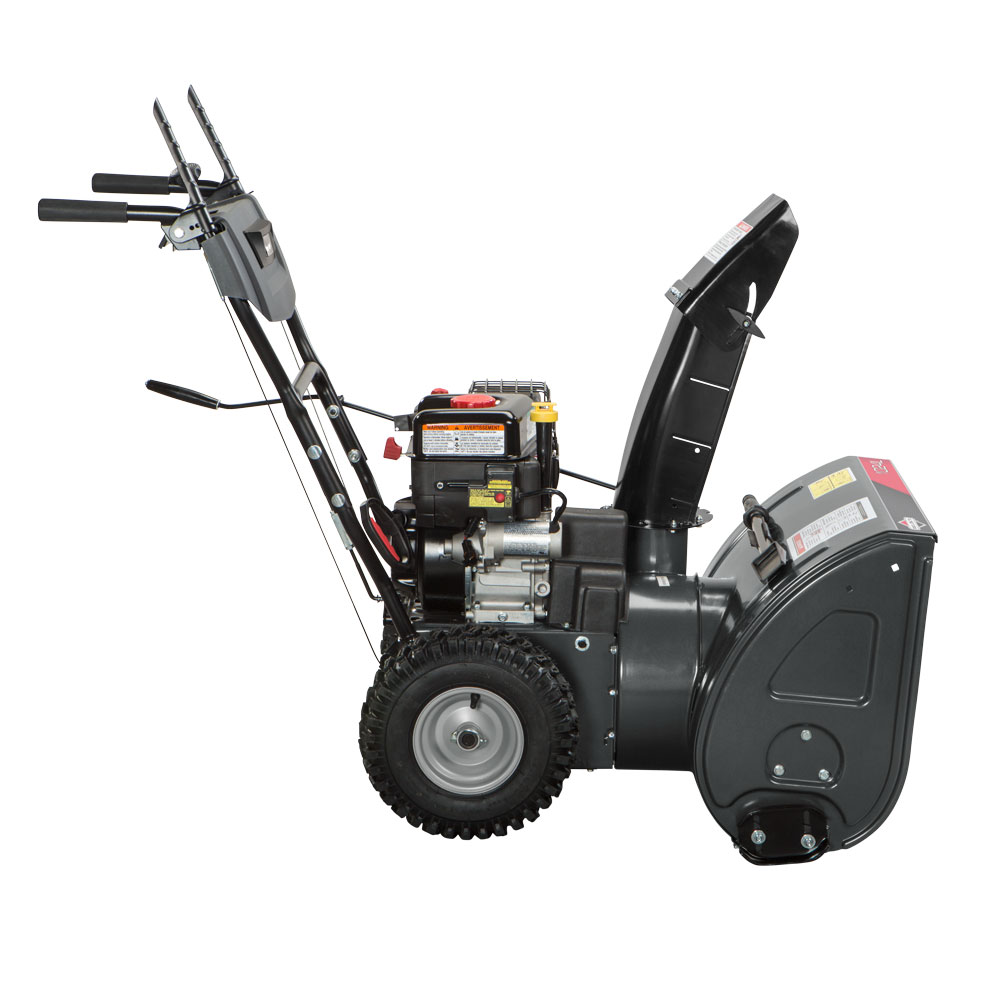

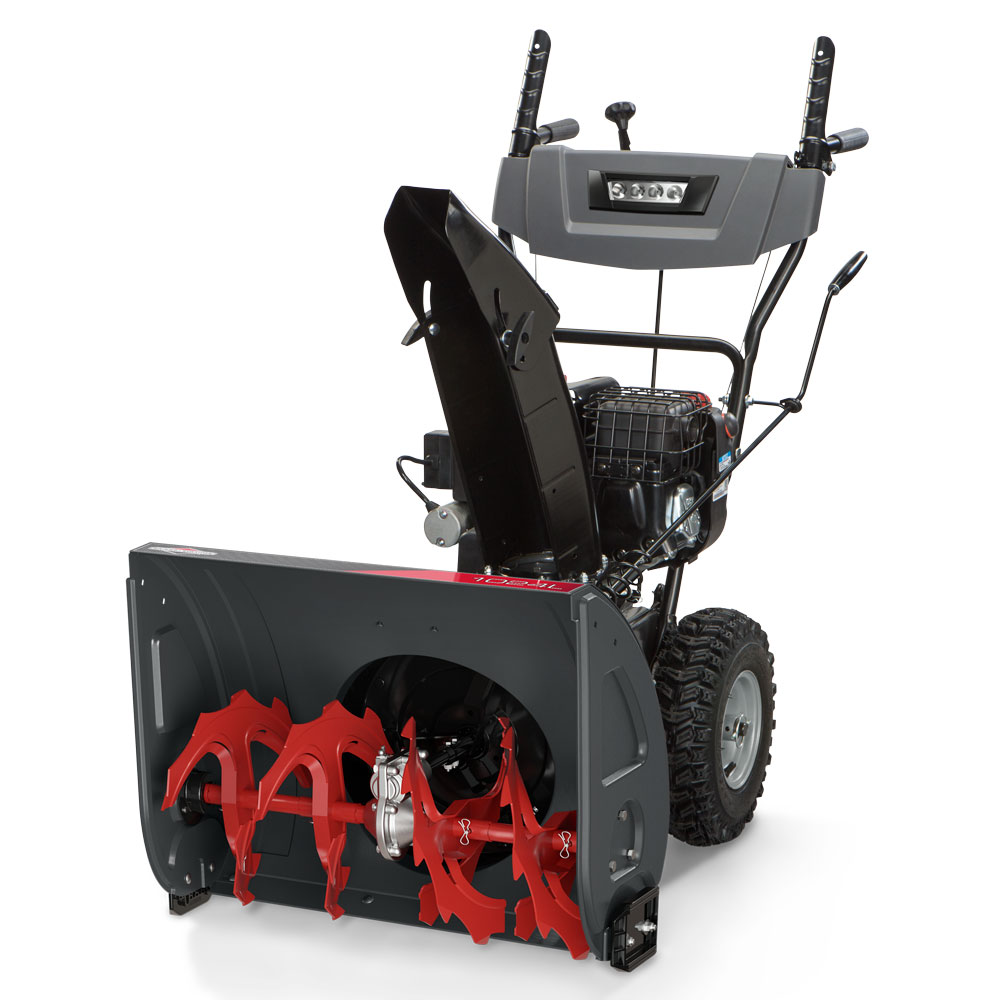

Two-Stage Snow Blower
With more power than a single-stage, the 24" Standard Series two-stage snow blower is perfect for frequent light and medium snowfalls, helping you tackle your small to medium driveways and pathways with ease.Gross Torque (ft-lbs)
9.5
Clearing Width
24"
Throwing Distance
35'
Engine Displacement
208cc
Features
Briggs & Stratton 950 Snow Series™ Engine
Specially designed to start strong (down to -20°F†) and power through in the toughest winter conditions, this engine offers uncompromised power and displacement to help you get the job done. Plus, oversized controls provide mitten-friendly operation.

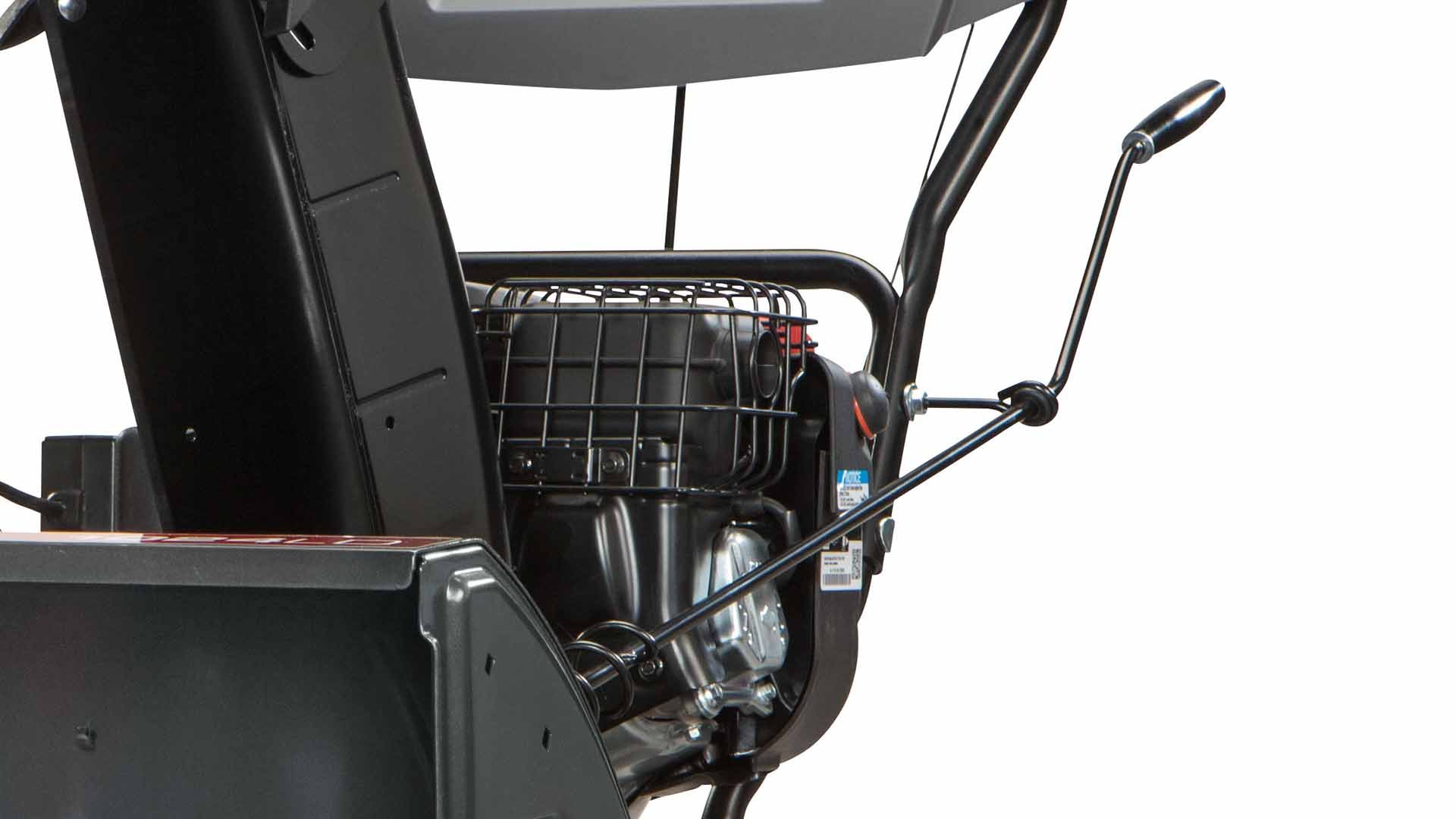

Manual Chute Rotation
Adjust the direction the snow is thrown from left-to-right with the left side chute crank.
Push Button Electric Start
Push button electric starting makes for quick and easy starts down to -20°F†.

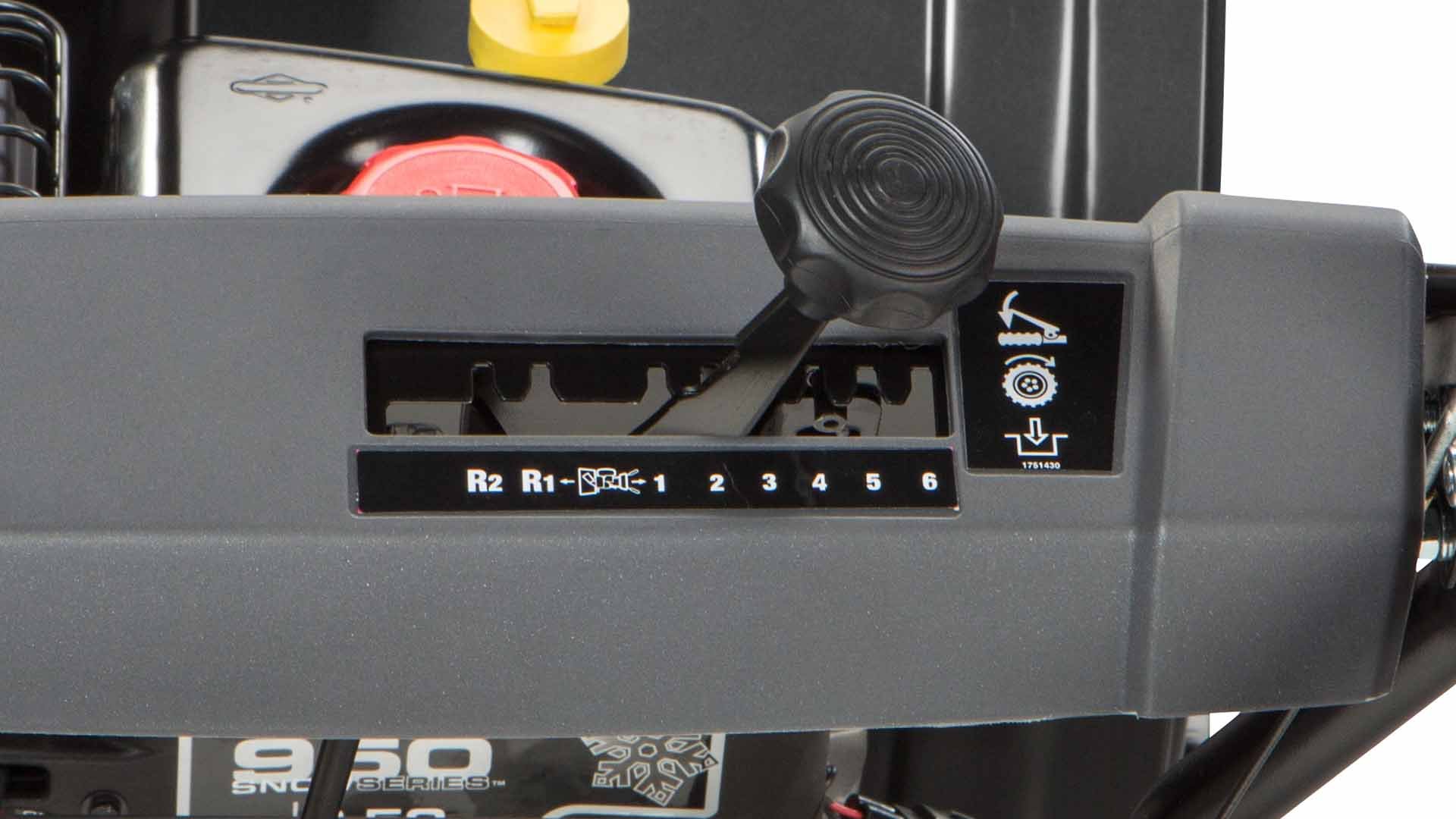

Friction Disc Drive Transmission
This is a self-propelled snow blower with six forward and two reverse speeds.
Sturdy Construction
Durable steel frame and chute and notched steel auger can take on snow and ice with ease. A durable aluminum gear box provides long life.
LED Headlight
Integrated LED headlight provides better visibility in low light.
Specifications
| 1697439 | |
| Fuel Tank Capacity (gal) | 0.8 |
| Engine Brand | Briggs & Stratton |
| Torque (ft-lbs) | 9.5 |
| Displacement (cc) | 208.0 |
| Clearing Width (in) | 24.0 |
| Throwing Distance (ft) | 35.0 |
| Intake Height (in) | 20.0 |
| Auger Diameter (in) | 12.0 |
| Impeller Diameter (in) | 12.0 |
| Auger Type | Notched Steel |
| Auger Gear Case Material | Stamped X-Auger |
| Number of Impeller Blades | 3.0 |
| Skid Shoes | Poly Reversible |
| Chute Material | Steel |
| Chute Deflector | Manual |
| Chute Rotation | 200° Left Side Crank |
| Drive Type | Friction Disc Drive |
| Ground Speed Fwd (mph) | 6.0 |
| Ground Speed Rev (mph) | 2.0 |
| Tire Size/Thread (in) | 13 x 5 |
| Dual Trigger Steering | No |
| Headlight | Yes |
| Storage Cover | Optional |
| Commercial Warranty (Product) | 90-Day |
| Consumer Warranty (Product) | 3 Year |
