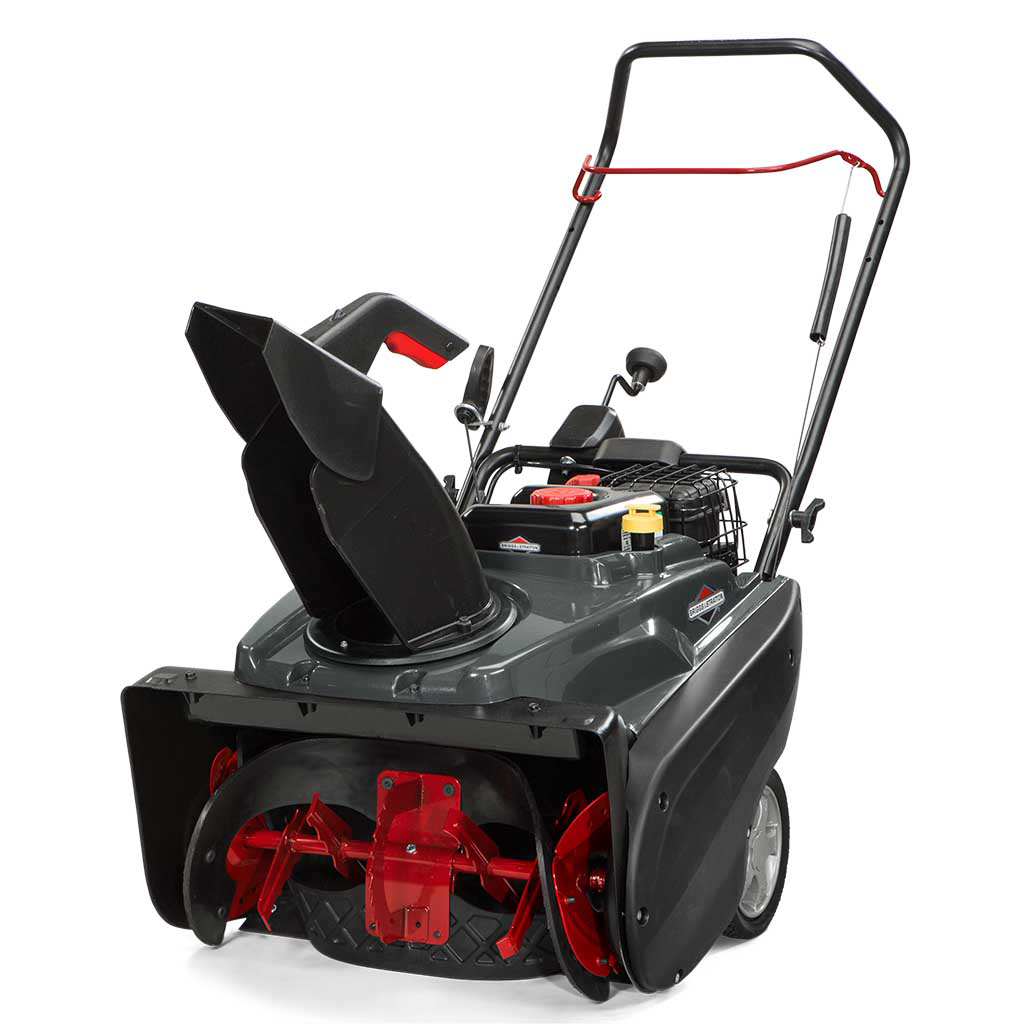

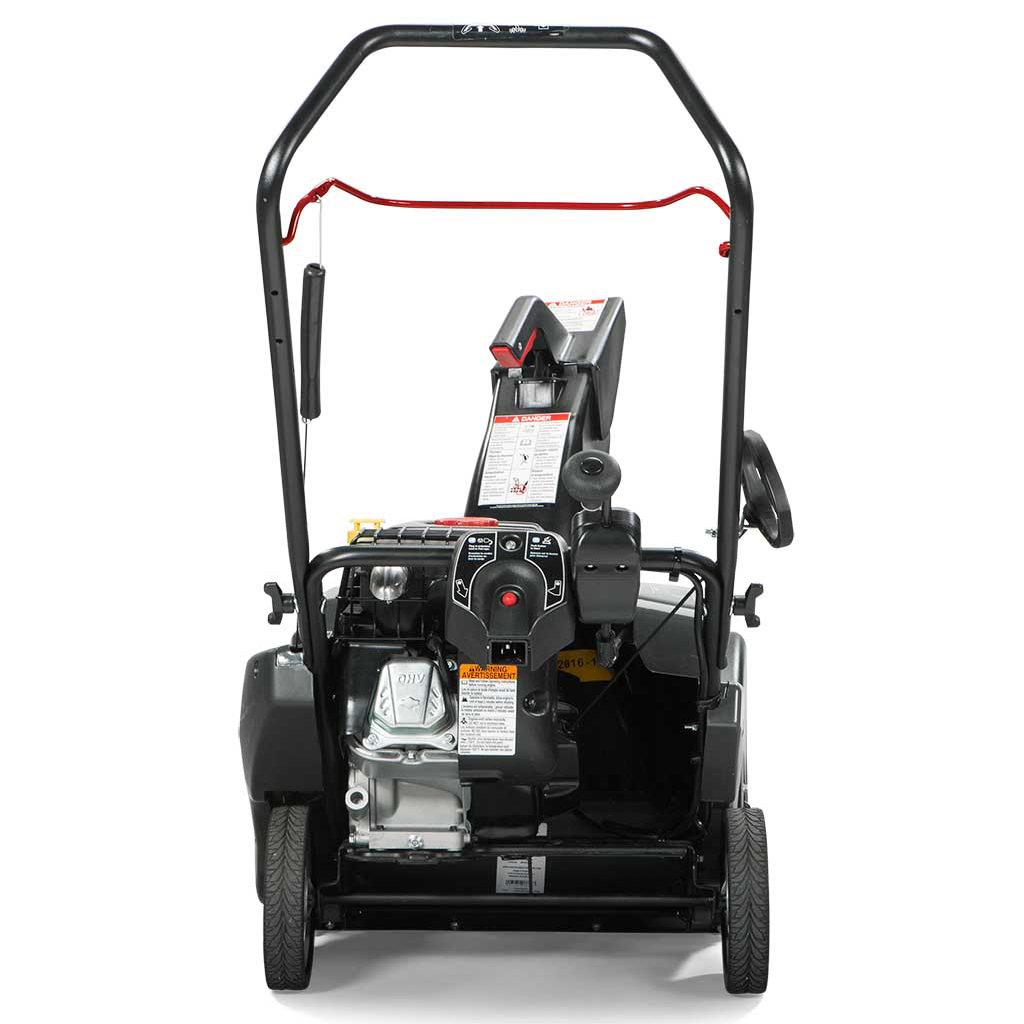

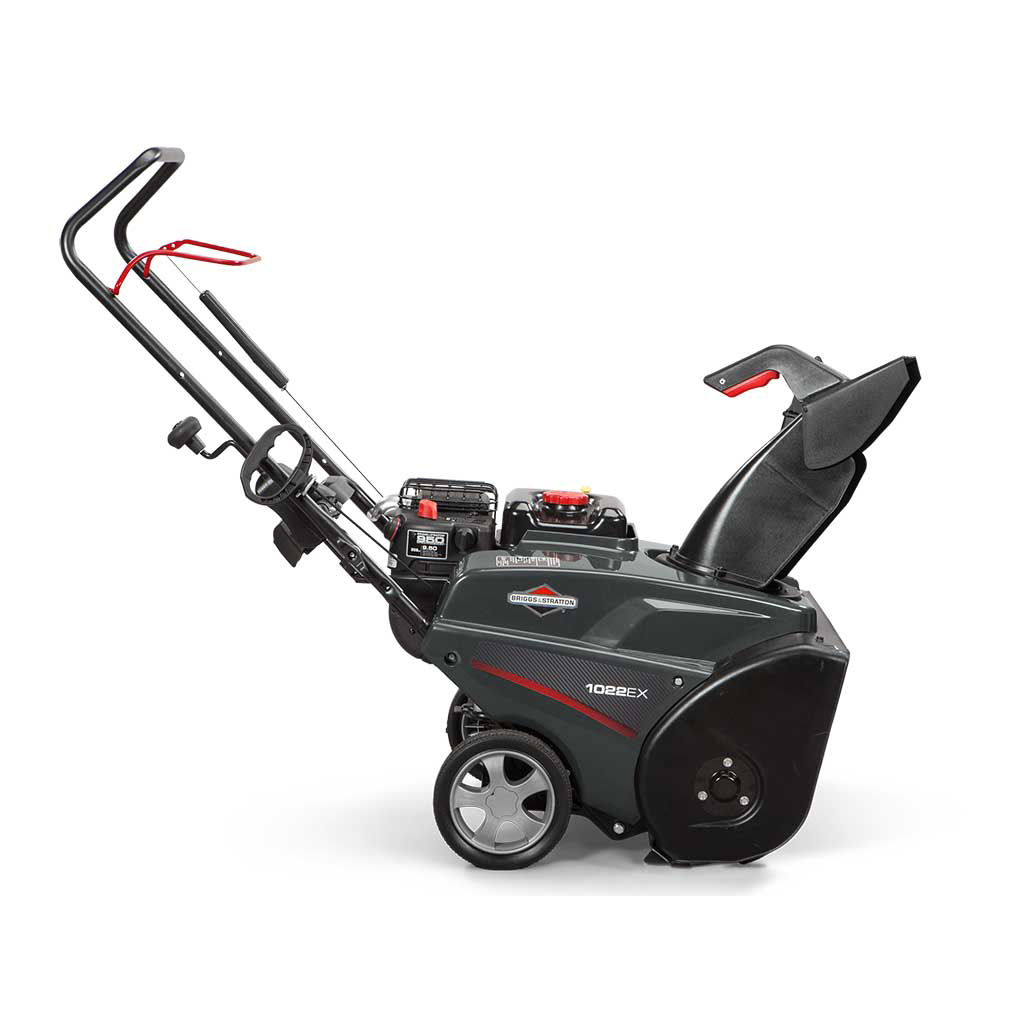

22” / 9.5TP* / SnowShredder™

Single-Stage Snow Blower

Tackle light to moderate snowfalls, including the tough and compacted end-of-driveway snow left behind by the snow plow. Powered by a durable Briggs & Stratton^® engine with push button electric start, this snow blower has easy-to-use features such as a remote chute rotation crank and quick-adjust deflector.

9.5

Gross Torque (ft-lbs)

22"

Clearing Width

30'

Throwing Distance

208cc

Displacement

Features

Briggs & Stratton Snow Series Engine

Specially designed to start strong (down to -20°F***) and help you power through the toughest winter conditions, this 950 Snow Series Engine offers uncompromised power to help you get the job done.

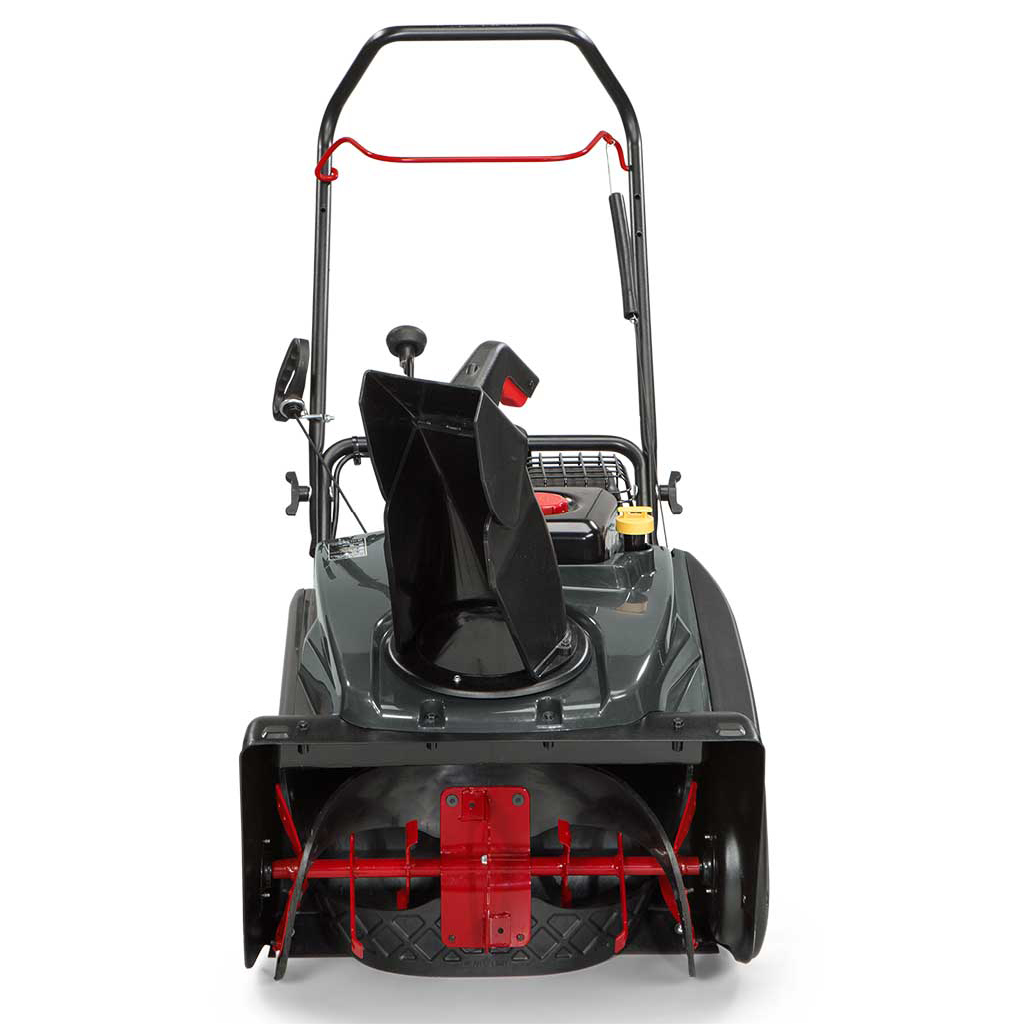

SnowShredder Serrated Auger

Clear heavy and wet snow down to the pavement with SnowShredder Serrated Auger Technology. Multiple serrated surfaces provide advanced ice chopping and snow clearing power.

Self-Propelled Auger Drive System

The self-propelled auger clears down to the pavement with little effort and helps propel the unit forward.

Push Button Electric Start

Push button electric starting makes for quick and easy starts down to -20°F***.

On-the-Go Chute Rotation

Easily rotate the chute 200 degrees from left-to-right with the remotely located chute rotation crank.

Sturdy Construction

One-piece auger housing with ball bearings provides extra long life.

Easy to Maneuver

More maneuverable and easier to control size - plus it saves space in your garage or shed.

Specs

Model Number

1697292

US MSRP (Manufacturer Suggested Retail Price)†

$669.00

Clearing Width (in)

22.0

Throwing Distance**

Intake Height (in)

12.5

Auger Diameter (in)

10.0

Auger Type

Thermal Plastic Urethane with Serrated Blades

Auger Gear Case Material

N/A

Number of Impeller Blades

N/A

Skid Shoes

N/A

Engine Brand

Briggs & Stratton

Engine Series

950 Snow Series

Engine Displacement (cc)

208

Torque (ft-lbs, gross)*

9.5

Fuel Tank Capacity (qts)

3.2

Chute Material

Plastic

Chute Deflector

Quick Deflector

Chute Rotation

200° Remote Crank

Drive Type

Auger Propelled

Ground Speed Fwd (mph)

N/A

Ground Speed Rev (mph)

N/A

Tire Size/Thread (in)

8 x 2

FreeHand™ Control

Heated Hand Grips

Headlight

Storage Cover

Consumer Warranty (Product) ***

3-Year

Commercial Warranty (Product) ***

90-Days

Snow Cab

Panel Type

Gull Wing

^{*All power levels are stated gros torque at 3060 RPM per SAE J1940 as rated by Briggs & Stratton
**Capacity and throwing distances can be greatly affected by conditions
***See Operator's Manual for complete warranty details}
^{†MSRP Price is Manufacturer Suggested Retail Price. Prices vary by dealer. Taxes, freight, set-up and delivery not included.}
