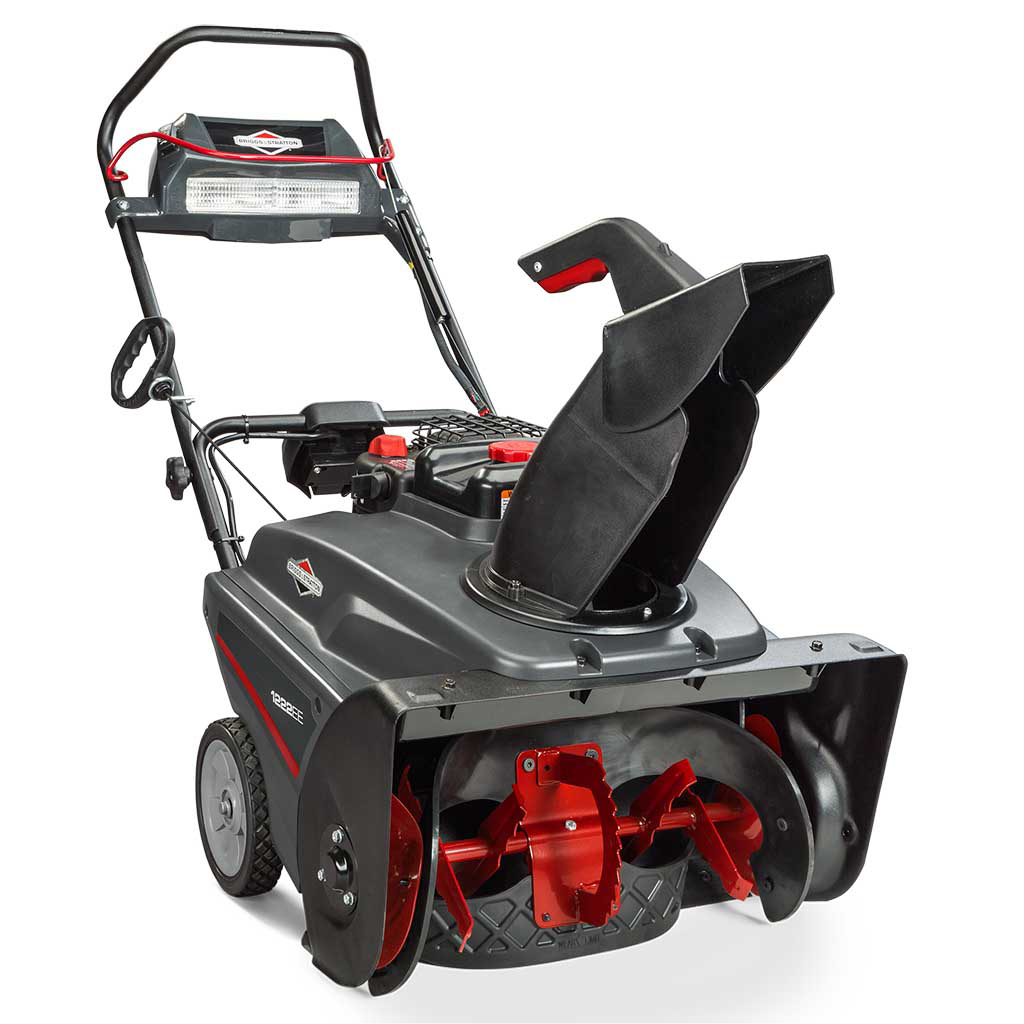

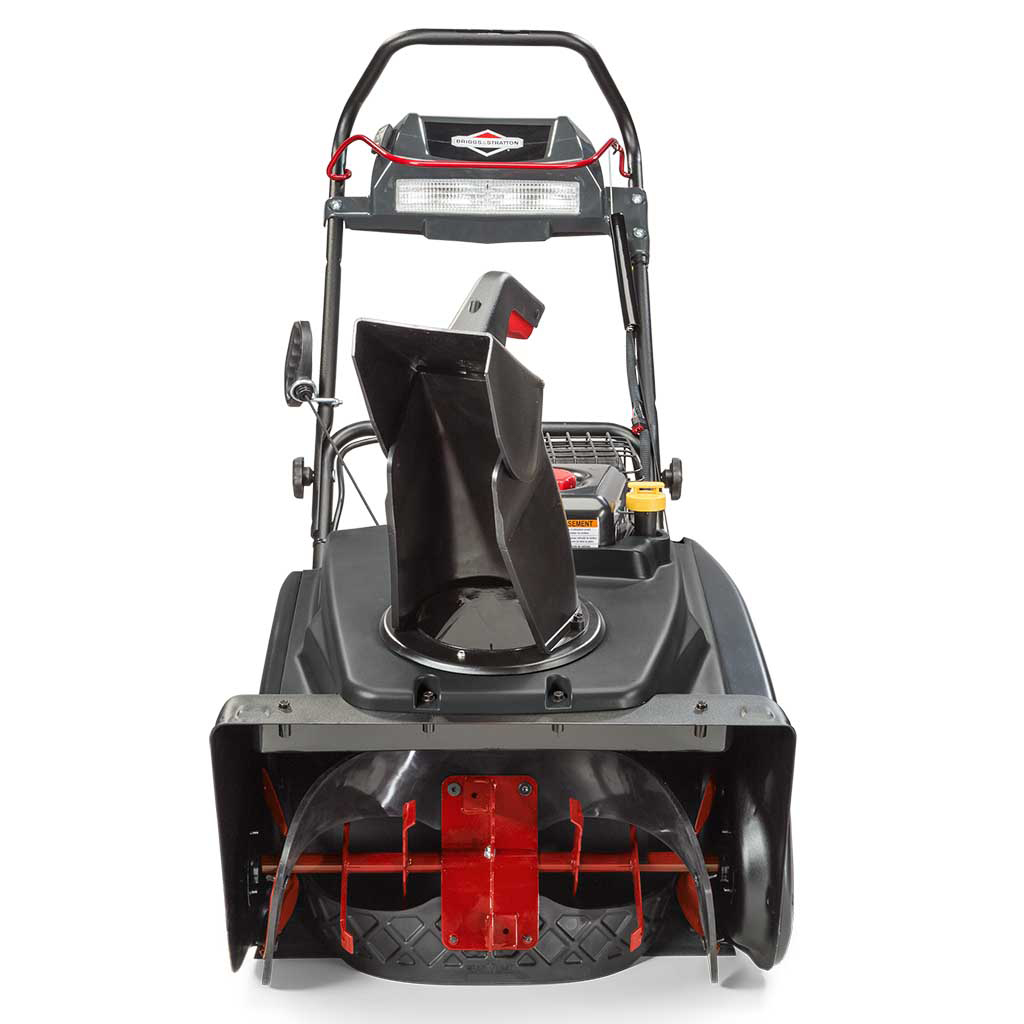

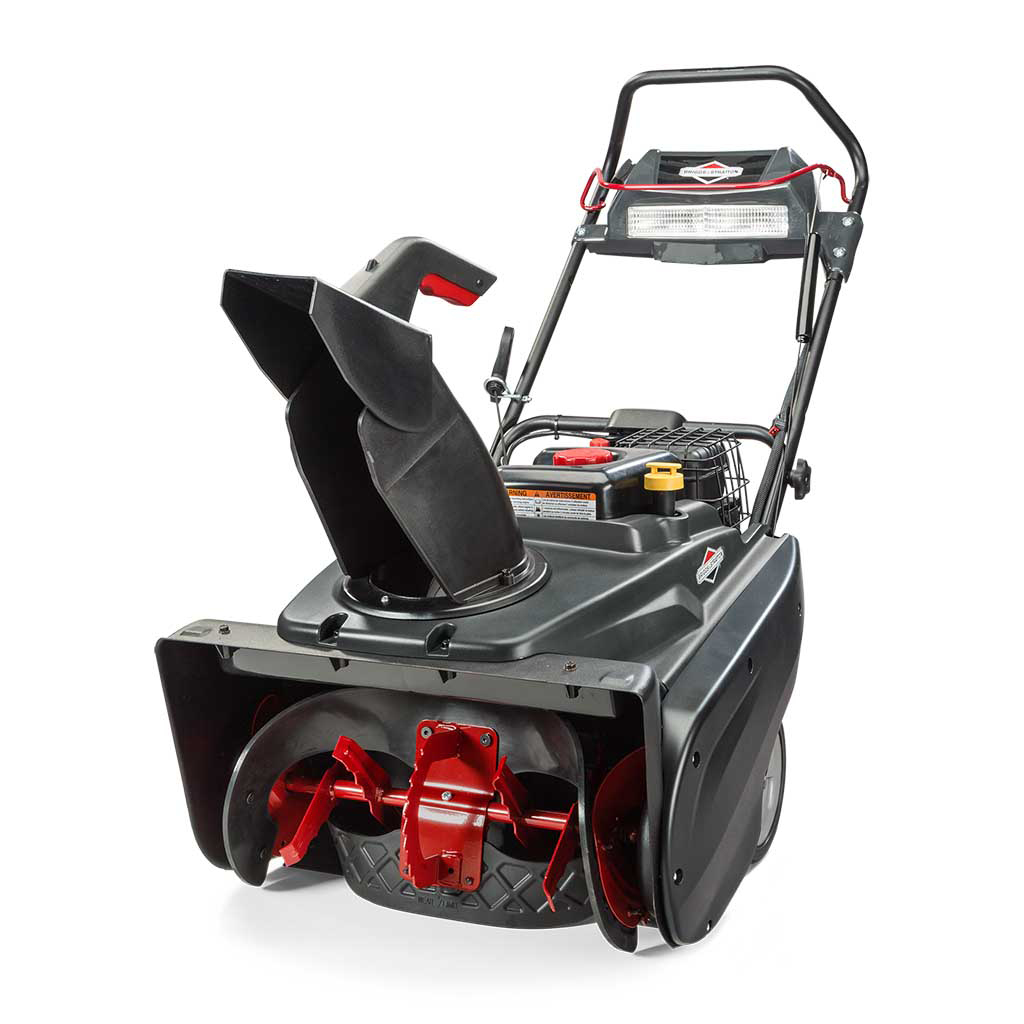

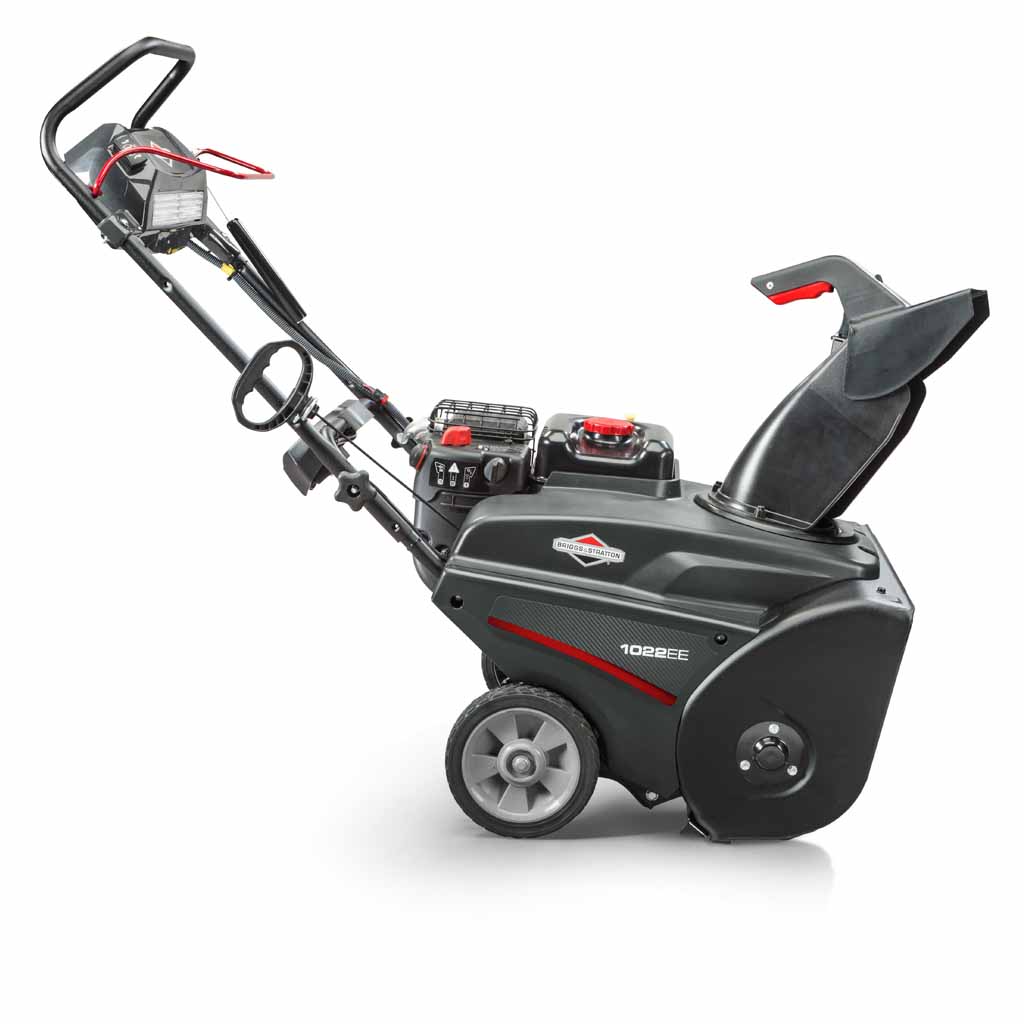

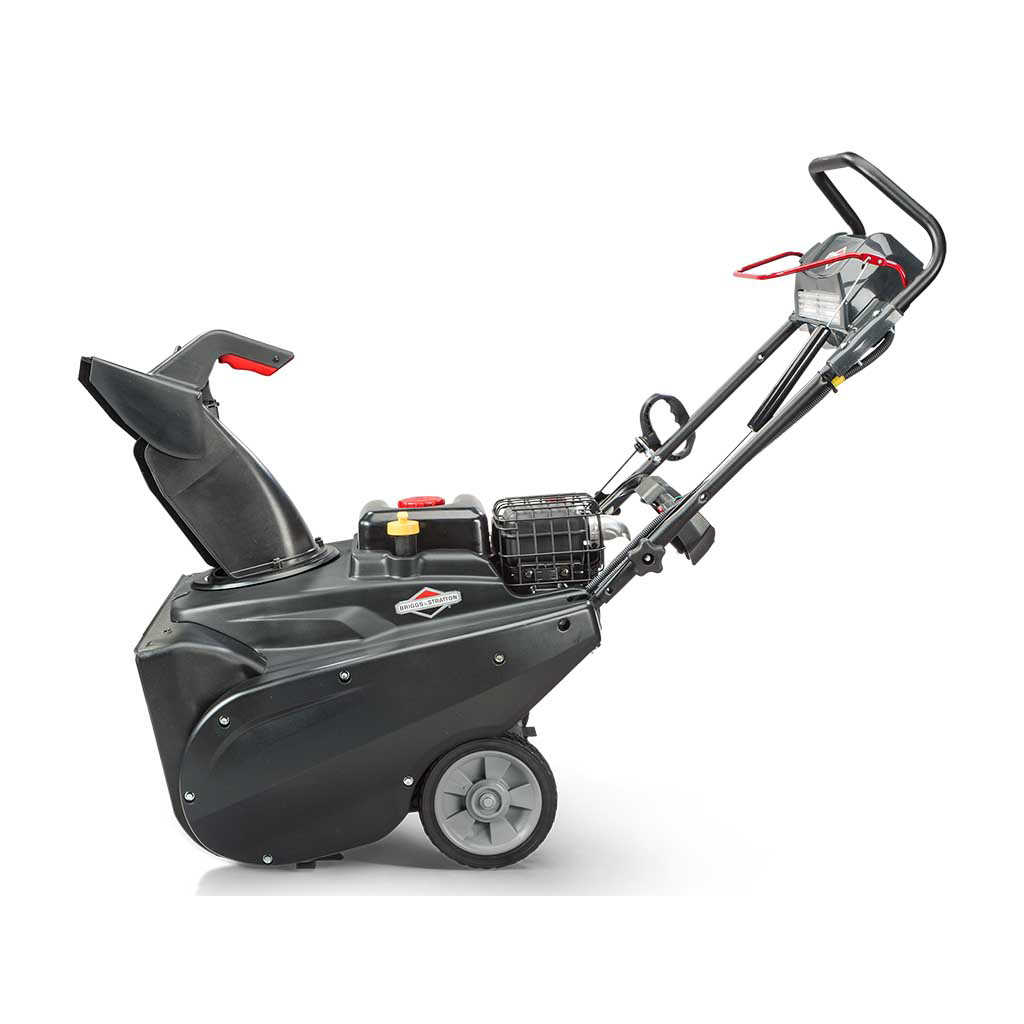

22” / 11.5TP* / SnowShredder™

Single-Stage Snow Blower

Tackle the upcoming snowfalls with ease, including the tough and compacted end-of-driveway snow left behind by the snow plow. Powered by the most powerful engine in the single-stage class, with push button electric start, this snow blower also has easy-to-use features such as electric chute rotation, quick-adjust deflector and convenient headlight.

11.5

Gross Torque (ft-lbs)

22"

Clearing Width

30'

Throwing Distance

250cc

Displacement

Features

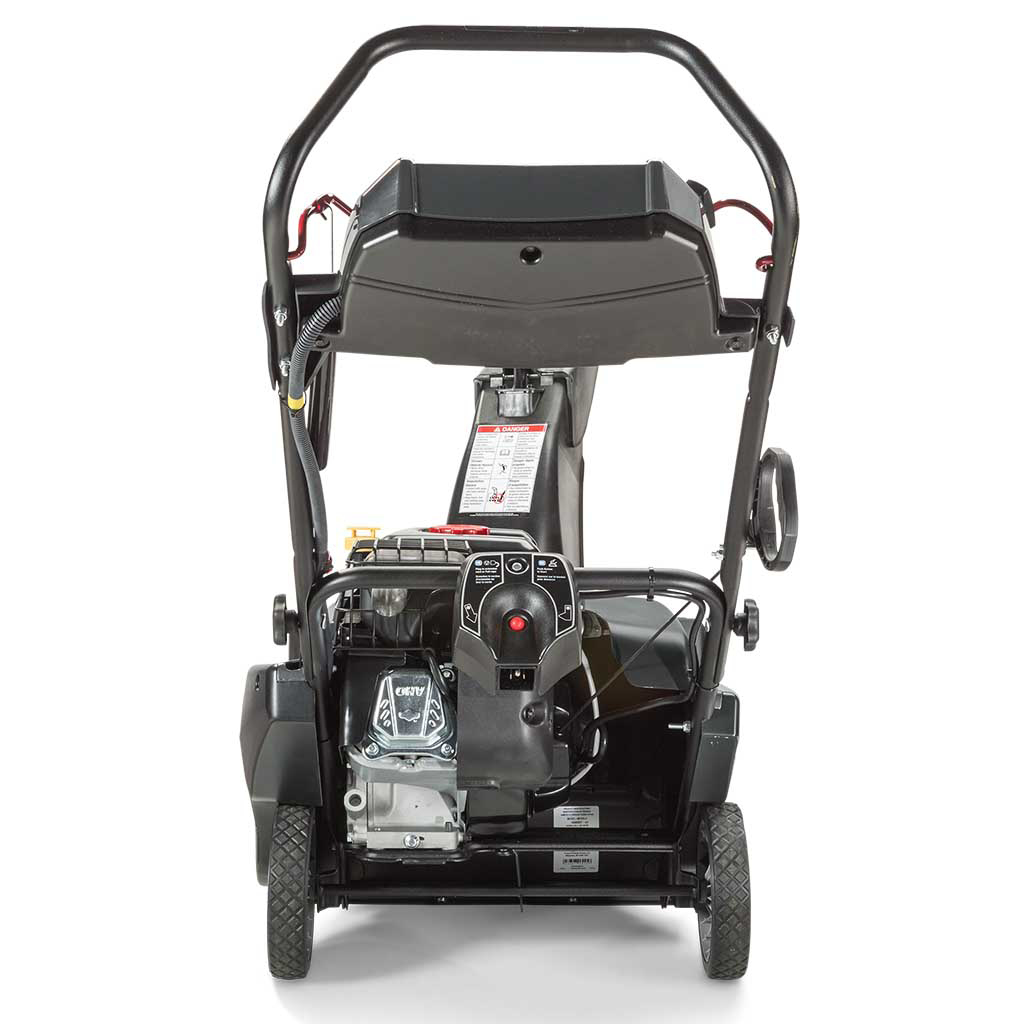

Briggs & Stratton 1150 Snow Series Engine

Specially designed to start strong (down to -20°F***) and power through in the toughest winter conditions, this engine offers uncompromised power and displacement to help you get the job done. Plus, oversized controls provide mitten-friendly operation.

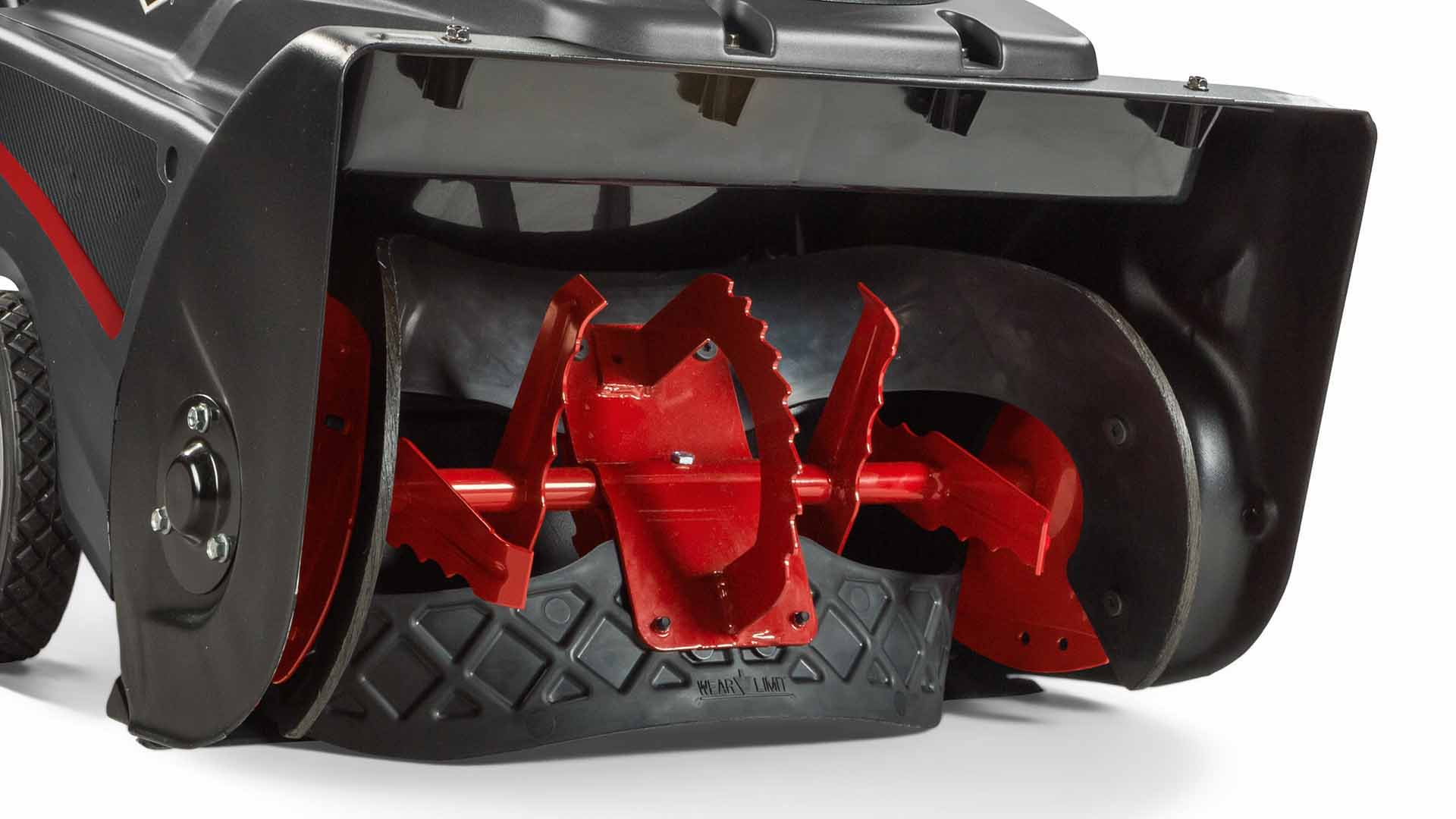

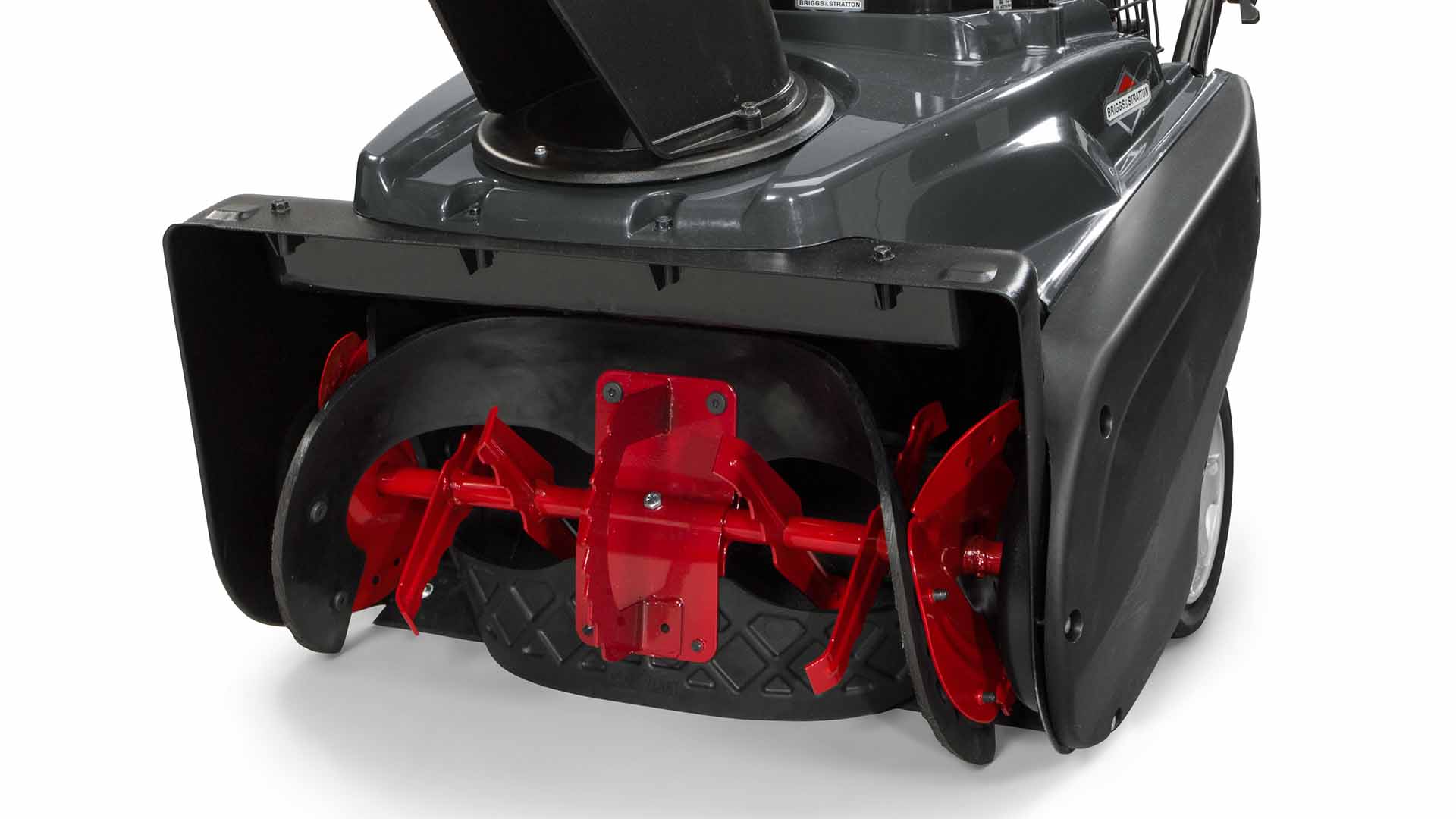

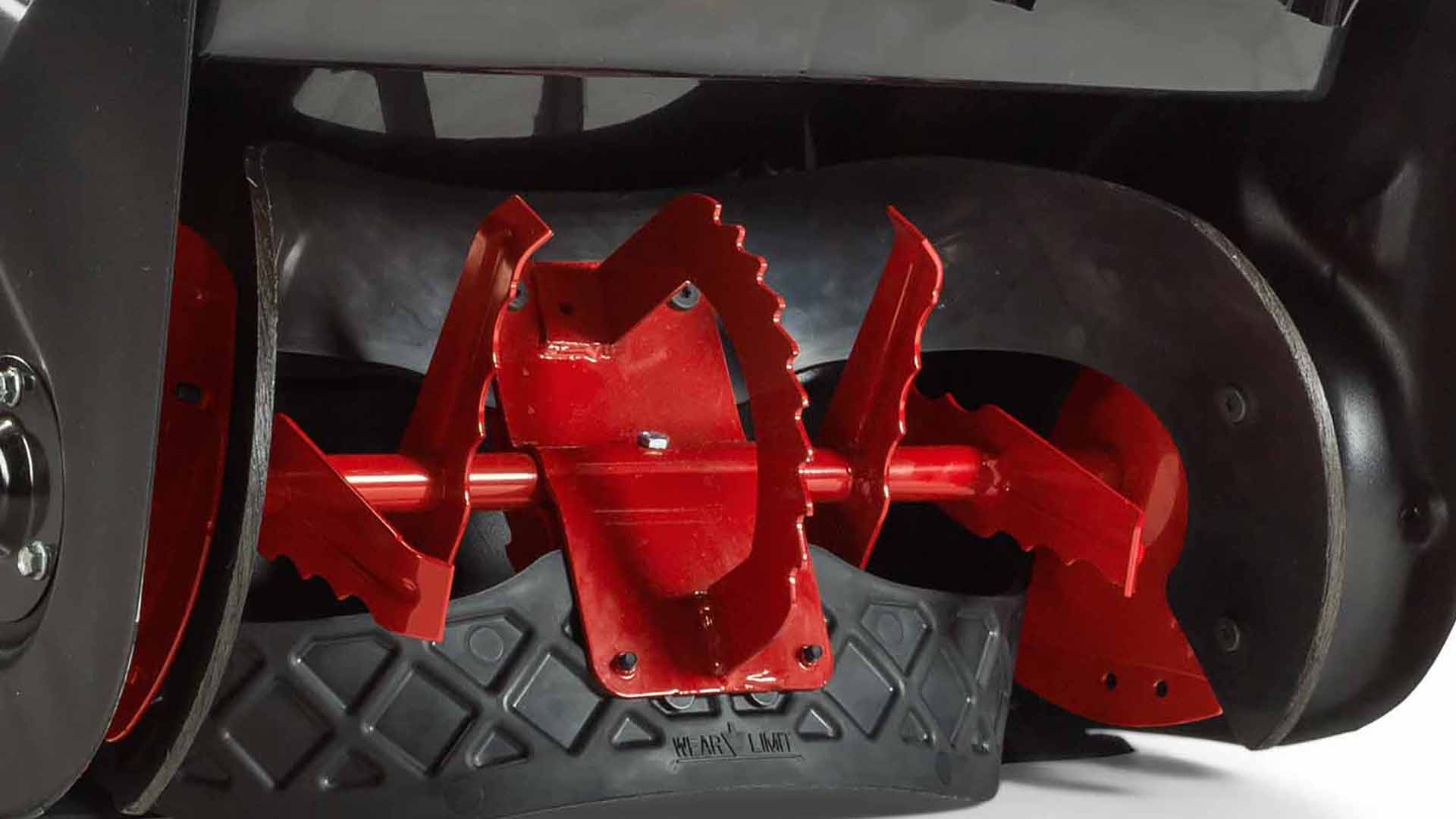

SnowShredder Serrated Auger

Easily clears more heavy and wet snow in less time with a patent-pending SnowShredder Serrated Auger. Serrated surfaces provide advanced ice chopping and snow clearing power.

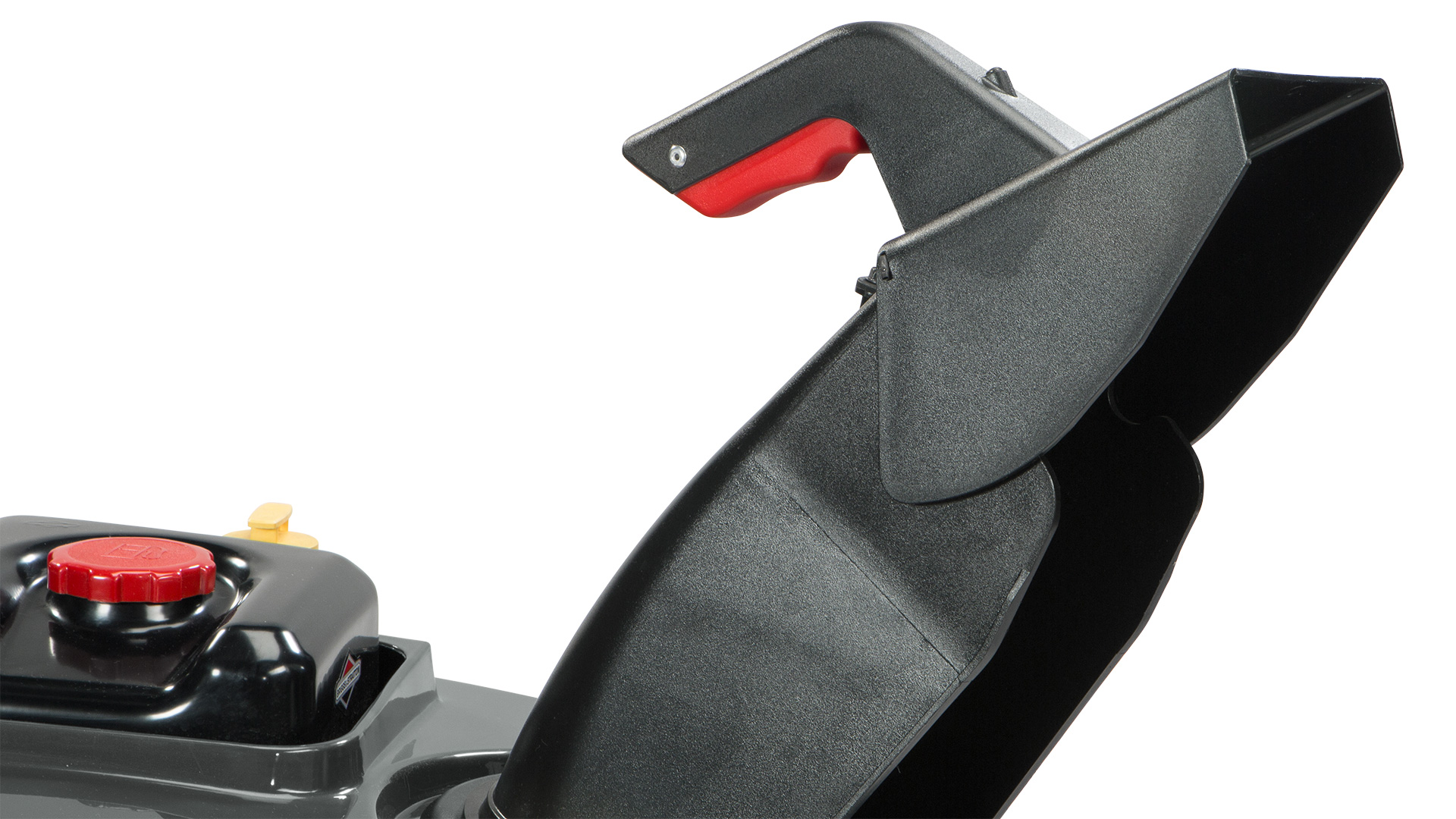

Quick-Adjust Deflector

Easily change the height and distance snow is thrown with a simple squeeze of the chute mounted handle.

Push Button Electric Start

Push button electric starting makes for quick and easy starts down to -20°F***.

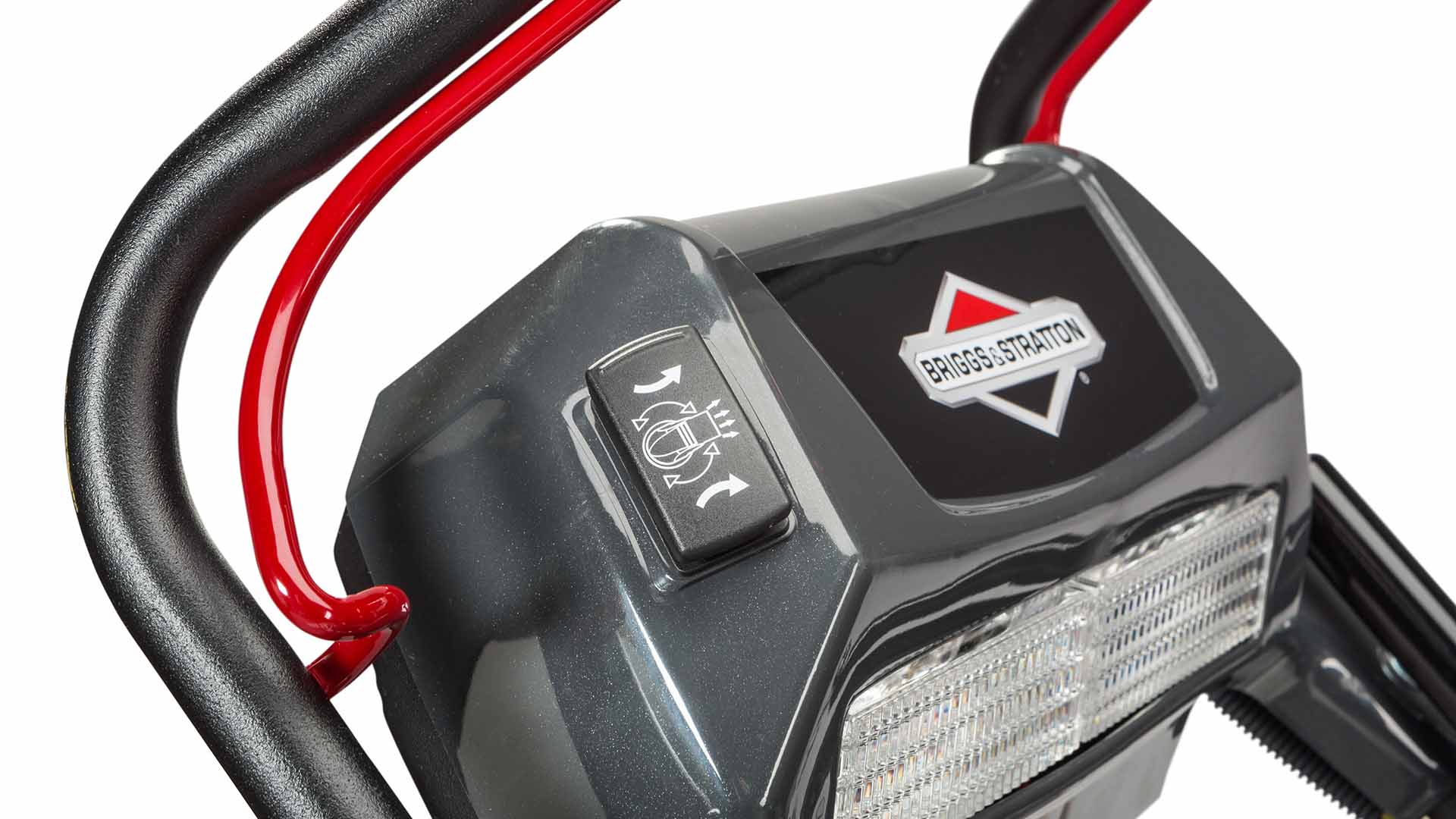

Electric Chute Rotation

Easily change the direction the snow is thrown with the push of a button.

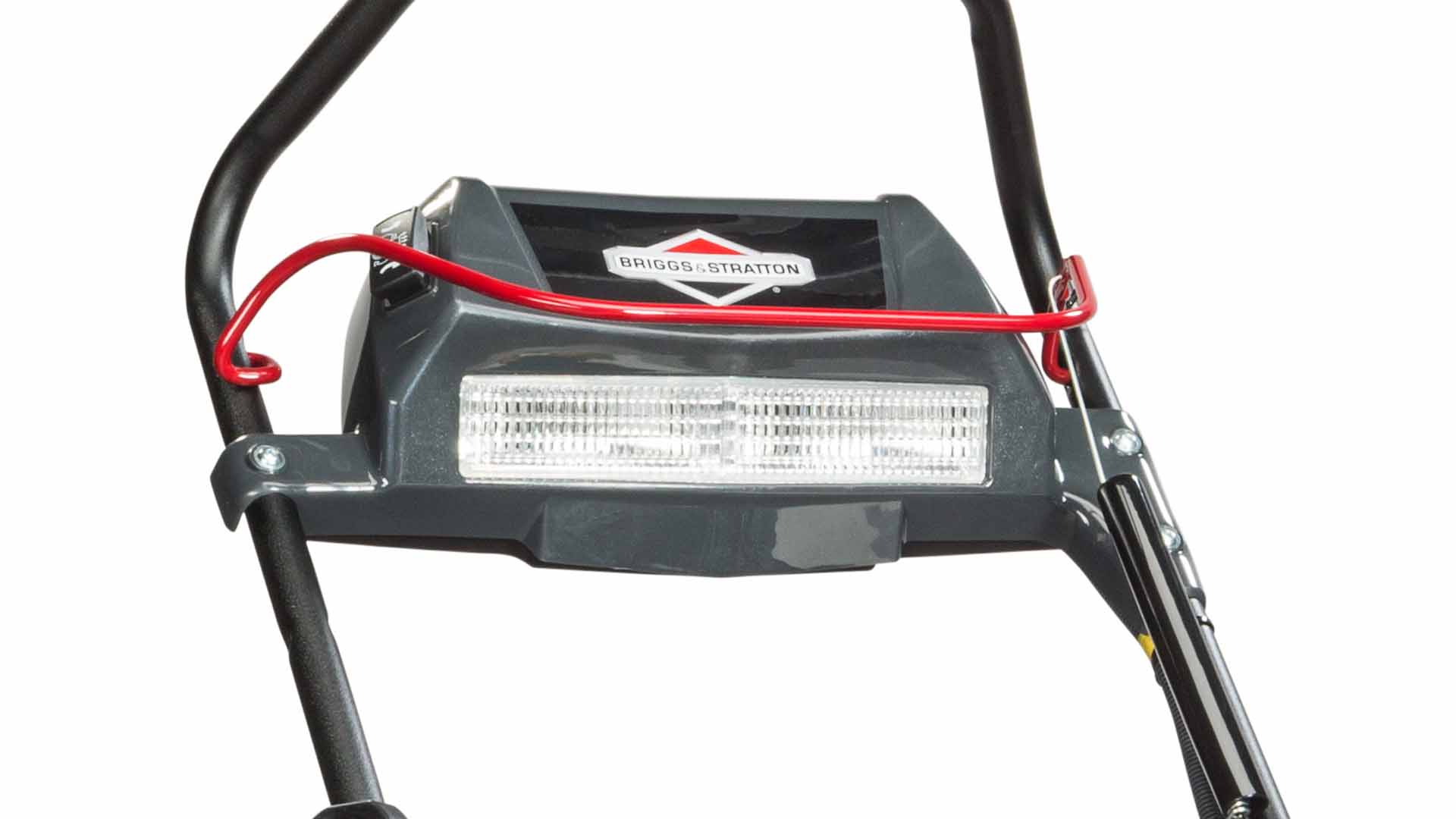

Integrated Incandescent Headlight

Dual incandescent headlights are integrated into the controls and provide better visibility.

Self-Propelled Auger Drive System

The self-propelled auger clears down to the pavement with little effort and helps propel the unit forward.

Sturdy Construction

One-piece auger housing with ball bearings provides extra long life.

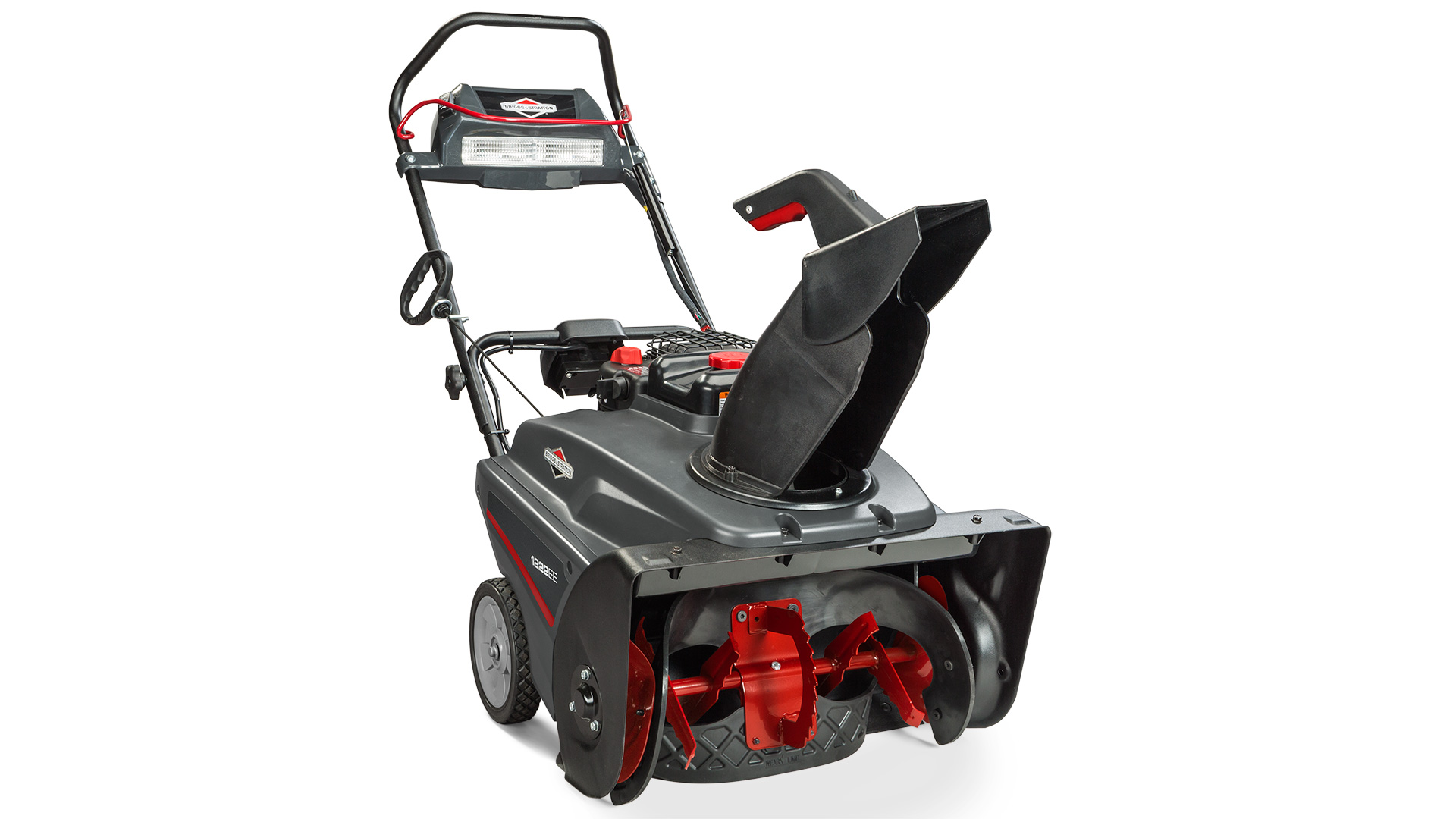

Easy To Control

More maneuverable and easier to control size - plus it saves space in your garage or shed.

Specs

Model Number

1697293

US MSRP (Manufacturer Suggested Retail Price)†

$799.00

Clearing Width (in)

22.0

Throwing Distance**

Intake Height (in)

12.5

Auger Diameter (in)

10.0

Auger Type

Thermal Plastic Urethane with Serrated Blades

Auger Gear Case Material

N/A

Number of Impeller Blades

N/A

Skid Shoes

N/A

Engine Brand

Briggs & Stratton

Engine Series

950 Snow Series

Engine Displacement (cc)

250

Torque (ft-lbs, gross)*

11.5

Fuel Tank Capacity (qts)

3.2

Chute Material

Plastic

Chute Deflector

Quick Deflector

Chute Rotation

200° Electric Remote Crank

Drive Type

Auger Propelled

Ground Speed Fwd (mph)

N/A

Ground Speed Rev (mph)

N/A

Tire Size/Thread (in)

8 x 2

FreeHand™ Control

Heated Hand Grips

Headlight

Dual Incandescent

Storage Cover

Consumer Warranty (Product) ***

3-Year

Commercial Warranty (Product) ***

90-Days

Snow Cab

Panel Type

Gull Wing, Dash Panel w/ Chute Switch

^{*All power levels are stated gros torque at 3060 RPM per SAE J1940 as rated by Briggs & Stratton
**Capacity and throwing distances can be greatly affected by conditions
***See Operator's Manual for complete warranty details}
^{†MSRP Price is Manufacturer Suggested Retail Price. Prices vary by dealer. Taxes, freight, set-up and delivery not included.}
