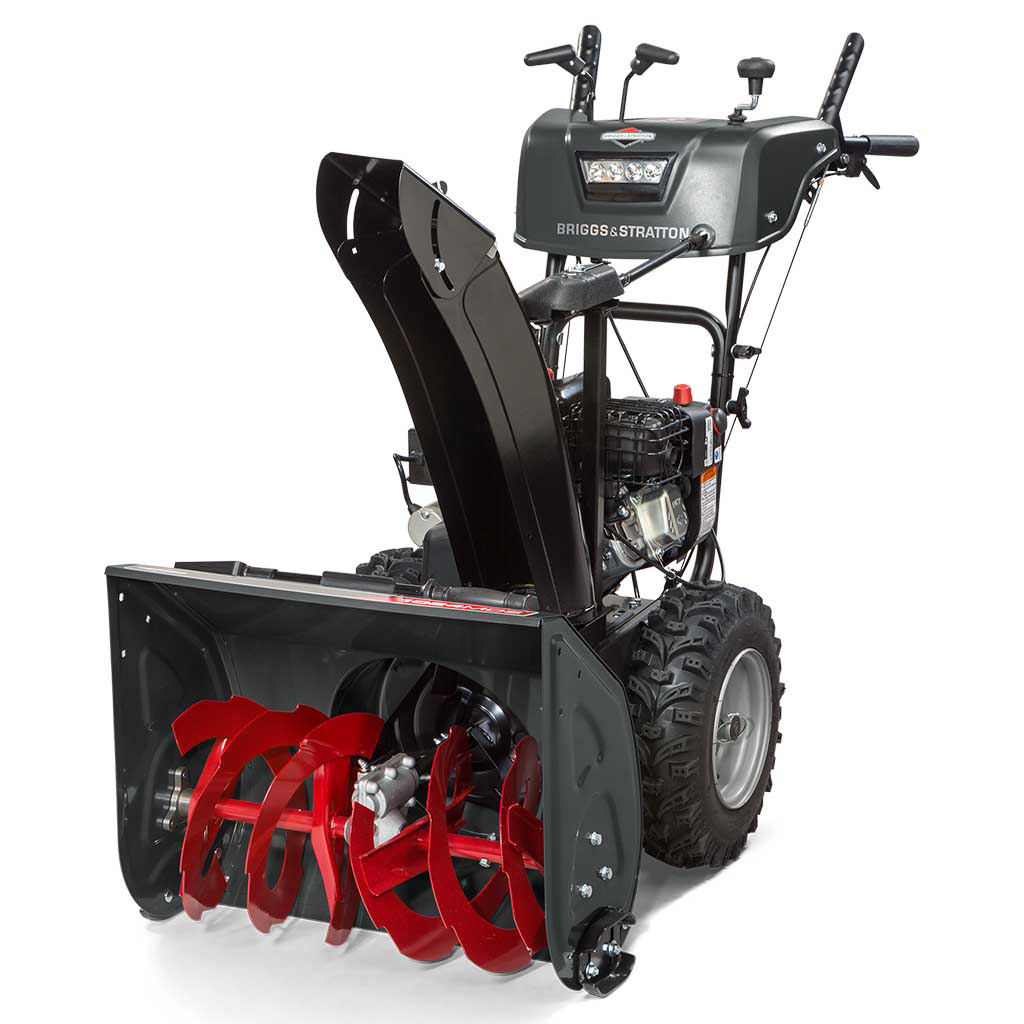

24" / 9.50 TP* / Dual-Trigger Steering

24" / 9.50 TP* / Dual-Trigger Steering

Two-Stage Snow Blower

Tackling moderate to heavy snow on medium driveways and pathways can be a breeze with a snow blower equipped with a powerful Briggs & Stratton 950 Snow Series™ Engine, dual-trigger steering for making easy turns and heated hand grips to keep hands warmer on cold winter days.

9.50

Gross Torque (ft-lbs)

24"

Clearing Width

40'

Throwing Distance

208cc

Displacement

Features

Briggs & Stratton 950 Snow Series™ Engine

Specially designed to start strong (down to -20°F***) and power through in the toughest winter conditions, this engine offers uncompromised power and displacement to help you get the job done. Plus, oversized controls provide mitten-friendly operation.

Push Button Electric Start

Push button electric starting makes for quick and easy starts down to -20°F***.

Effortless Turns

Dual-Trigger Steering makes tight turns effortless. Simply pull a trigger to release the left or right wheel to help make tight turns.

Heated Hand Grips

Heated hand grips with an on/off switch keep your hands warmer while clearing away the cold snow.

Free Hand™ Control

Free Hand™ Control offers one-handed operation of the snow blower, allowing you a free hand to rotate the chute, adjust the deflector or change the speed.

LED Headlight

Integrated LED headlight provides better visibility in low light.

Sturdy Construction

Durable steel frame and chute and notched steel auger can take on snow and ice with ease.

Superior Traction

Designed for snow applications, large 16" x 5" tires will provide you with superior traction.

Specs

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
1696807-02
US MSRP (Manufacturer Suggested Retail Price)†
$1,279.00
Type
Elite Series Two-Stage
Clearing Width (in)
24.0
Throwing Distance**
40
Intake Height (in)
20
Auger Diameter (in)
12.0
Impeller Diameter (in)
12.0
Auger Type
Notched Steel
Auger Gear Case Material
Aluminum
Number of Impeller Blades
3
Skid Shoes
Poly Reversible
Engine Brand
Briggs & Stratton
Engine Series
Snow Series™
Engine Displacement (cc)
208
Torque (ft-lbs, gross)*
9.50
Fuel Tank Capacity (qts)
3.2
Chute Material
Steel
Chute Deflector
Remote
Chute Rotation
200° Dash Mount Crank
Drive Type
Friction Disc Drive
Ground Speed Fwd (mph)
6
Ground Speed Rev (mph)
2
Tire Size/Thread (in)
16 x 5
FreeHand™ Control
Standard
Dual Trigger Steering
true
Heated Hand Grips
Standard
Headlight
LED
Storage Cover
Optional
Consumer Warranty (Product) ***
3-Year
Commercial Warranty (Product) ***
90-Day
Snow Cab
Aftermarket - Model #490-241-0032

*All power levels are stated ft.-lbs. gross torque at 2600 RPM per SAE J1940 as rated by Briggs & Stratton
**Capacity and throwing distances can be greatly affected by conditions
***See Operator's Manual for complete warranty details

†MSRP Price is Manufacturer Suggested Retail Price. Prices vary by dealer. Taxes, freight, set-up and delivery not included.
