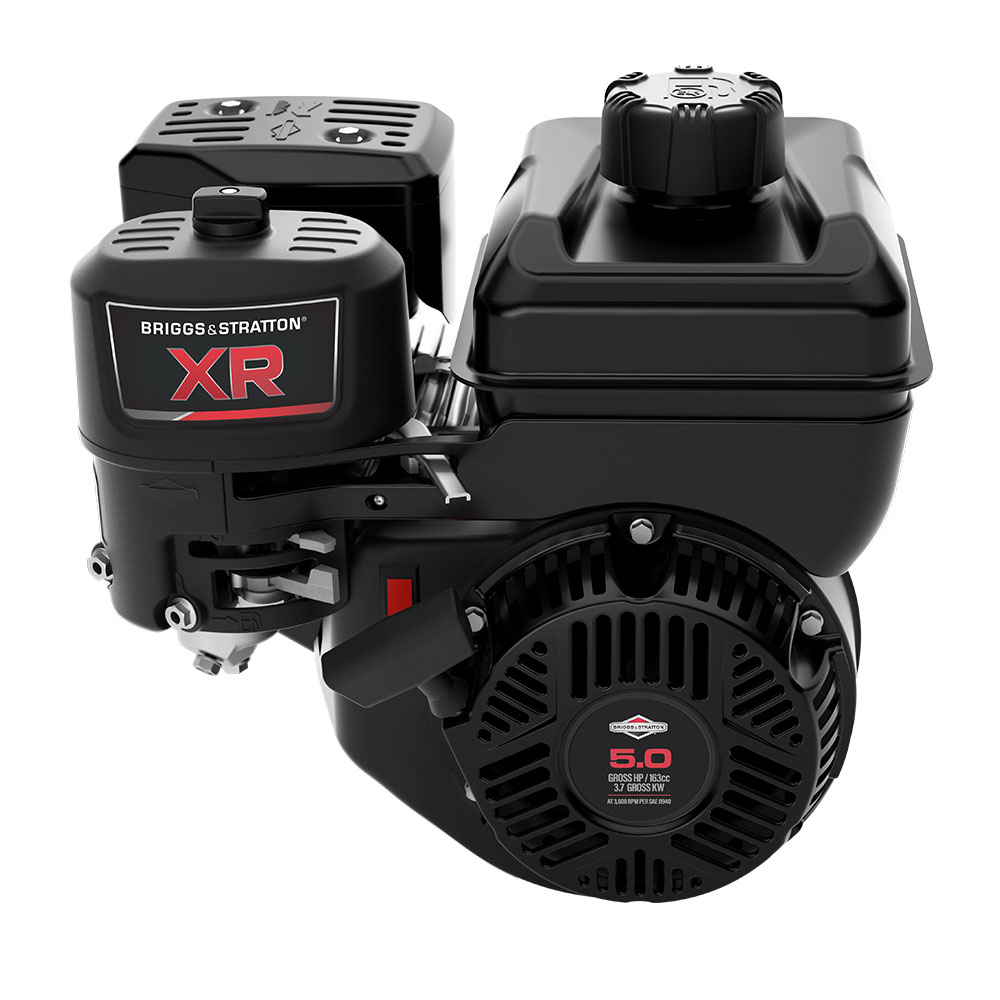

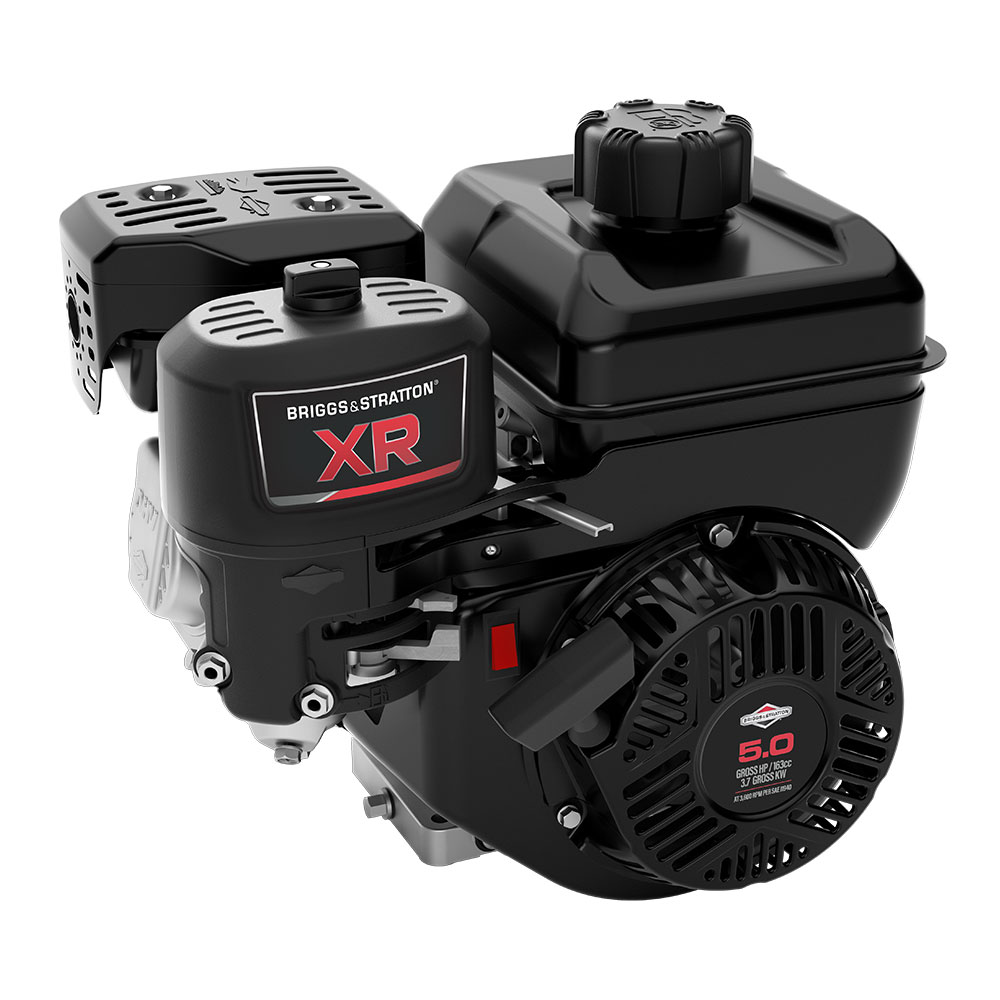

XR 5.0

XR 5.0

High Performance and Extended Durability

  • Dura-Bore™ Cast Iron Sleeve
  • Cartridge Air Cleaner with Standard Pre-Cleaner

5.0

Horsepower (HP)

163cc

Displacement

Gasoline

Engine Fuel

Manual Choke

Starter

Features

Qualified 3x the Life

Qualified 3x the life of the CR engine. *When compared to the expected life standards of the Briggs & Stratton CR Series engine.

XR Professional Warranty

2-Year Commercial Warranty, 2-Year Consumer Warranty

Forged Crankshaft and Dura-Bore™ Cast Iron Sleeve

Combining a Forged Crankshaft that gives you a longer engine life and a Dura-Bore™ Cast Iron Sleeve that helps withstand the wear and abuse delivers durability.

Specs

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
1062
Horsepower (HP, gross)*
5.0
Torque (ft-lbs, gross)*
7.5
Engine Displacement (cc)
163
Number of Cylinders
Single
Engine Configuration
Horizontal Shaft
OHV Engine
true
Length (in)
11.3
Width (in)
14.6
Height (in)
14.0
Weight (lbs)
33.6
Bore (in)
2.68
Stroke (in)
1.77
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
0.8
Lubrication System
Dura-Lube Splash Lubrication
Oil Capacity (oz)
20
Oil Filter
N/A
Starter
Manual Choke
Air Filter
Flat Panel or Dual Element Cartridge
Muffler
Lo-Tone™
Certified Power Rating

*Power levels are stated gross horsepower per SAE J1940 as rated by Briggs & Stratton.
