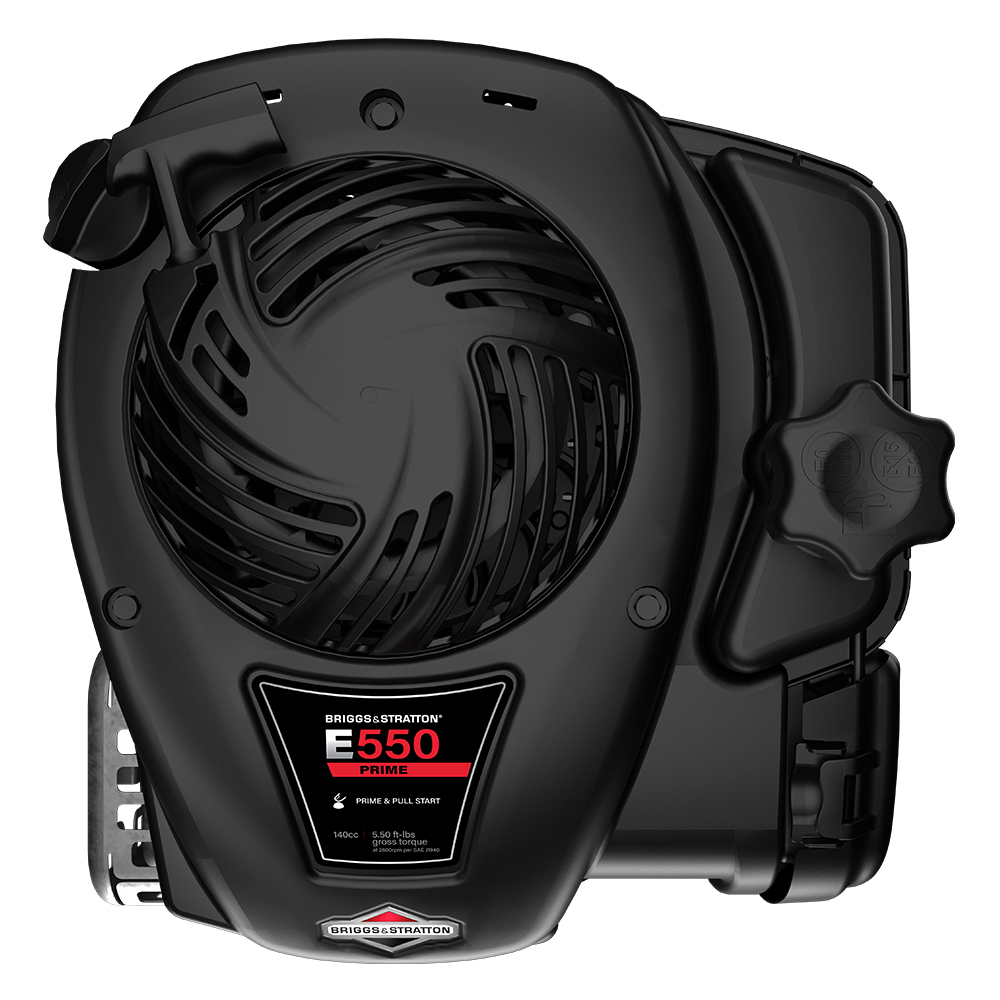

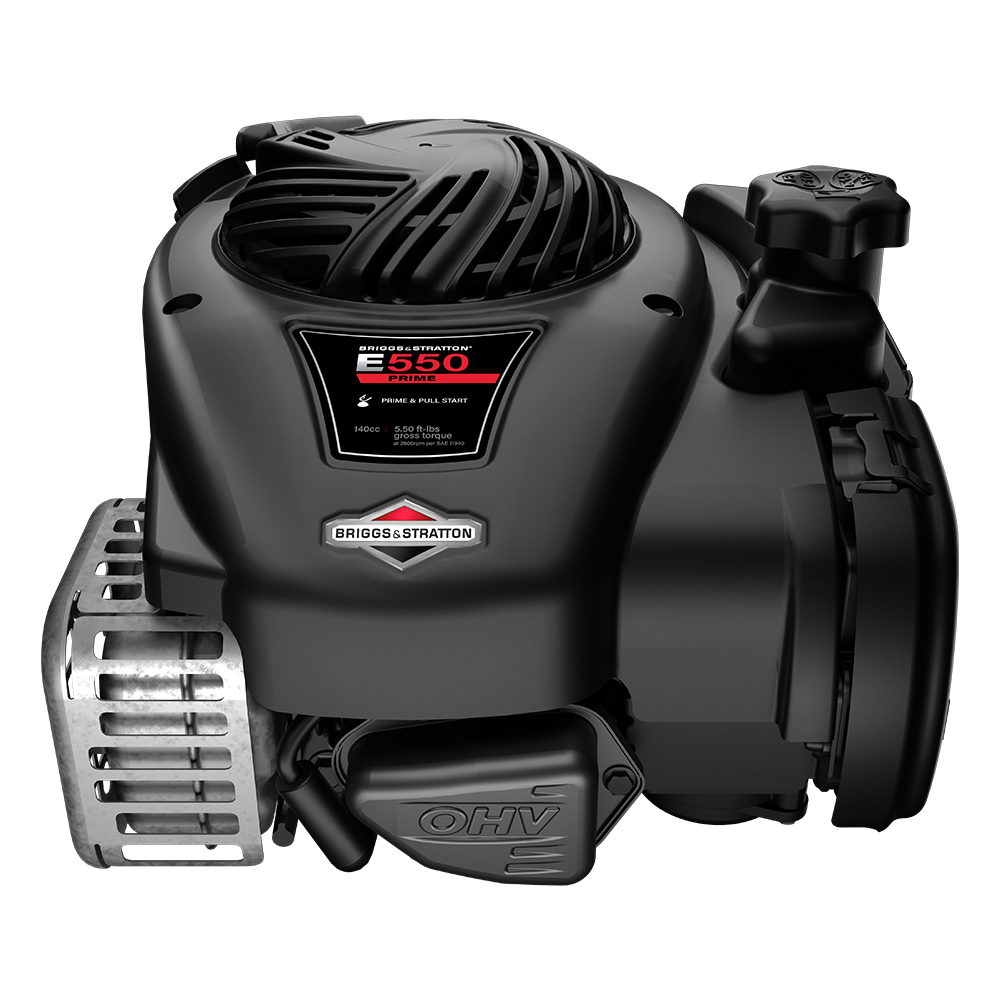

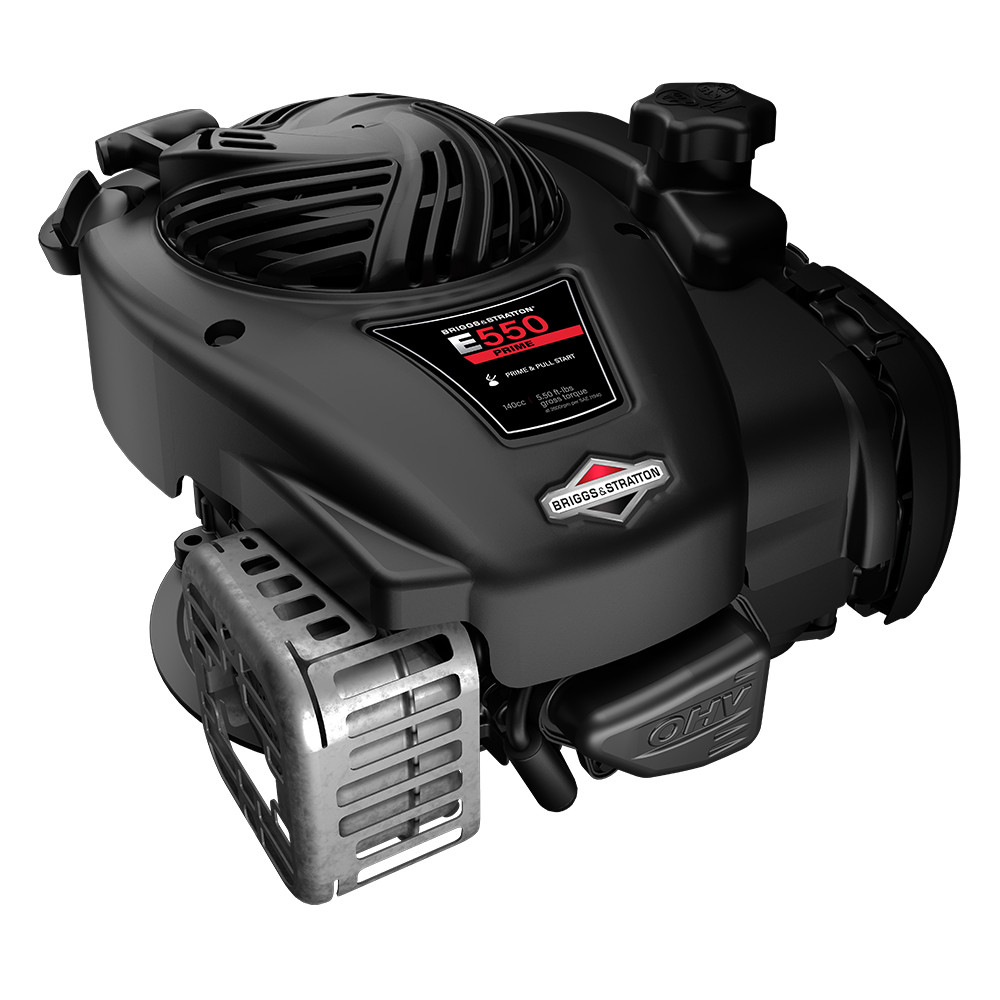

E Series™ Engines

E Series™ Engines

Easy to use. Exceptional value.

Powerful and lightweight, our E Series™ push mower engines are not only easy to use, but also an exceptional value. Made in the USA with US and global parts, our engines are designed to give you the performance and value you need to get the job done quickly.

  • Featuring Prime n' Pull Start for ease of use; skip the choke, just prime and pull for power.

4.50 - 5.50

Gross Torque (ft-lbs)

125 - 140cc

Displacement

Gas

Engine Fuel

Prime n' Pull™

Starter

Features

Made in the USA

Made in the USA of US and global parts.

Prime n' Pull Start

Skip the choke; just prime and pull for power.

Specs

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
08P5
Torque (ft-lbs, gross)*
4.5
Engine Displacement (cc)
125
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
Yes
Length (in)
13.8
Width (in)
12.2
Height (in)
9.6
Weight (lbs)
17
Bore (in)
2.36
Stroke (in)
1.75
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
0.2
Oil Capacity (oz)
15
Lubrication System
Dura-Lube Splash Lubrication
Oil Filter
N/A
Starter
Prime n' Pull™
Air Filter
Oiled Foam
Muffler
Lo-Tone™
Fuel Shutoff Valve
N/A
Certified Power Rating

*All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
09P6
Torque (ft-lbs, gross)*
5
Engine Displacement (cc)
140
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
Yes
Length (in)
13.8
Width (in)
12.2
Height (in)
9.6
Weight (lbs)
17
Bore (in)
2.50
Stroke (in)
1.75
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
0.2
Oil Capacity (oz)
15
Lubrication System
Dura-Lube Splash Lubrication
Oil Filter
N/A
Starter
Prime n' Pull™
Air Filter
Oiled Foam or Dual-Sealing Paper
Muffler
Lo-Tone™ or Super Lo-Tone™
Fuel Shutoff Valve
N/A
Certified Power Rating

*All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
09P7
Torque (ft-lbs, gross)*
5.5
Engine Displacement (cc)
140
Number of Cylinders
Single
Engine Configuration
Vertical Shaft
OHV Engine
Yes
Length (in)
13.8
Width (in)
12.2
Height (in)
9.6
Weight (lbs)
17
Bore (in)
2.50
Stroke (in)
1.75
Engine Fuel
Gasoline
Fuel Tank Capacity (gal)
0.2
Oil Capacity (oz)
15
Lubrication System
Dura-Lube Splash Lubrication
Oil Filter
N/A
Starter
Prime n' Pull™
Air Filter
Oiled Foam or Dual-Sealing Paper
Muffler
Lo-Tone™ or Super Lo-Tone™
Fuel Shutoff Valve
N/A
Certified Power Rating

*All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.

Model Number
08P5
09P6
09P7
Torque (ft-lbs, gross)*
4.5
5
5.5
Engine Displacement (cc)
125
140
140
Number of Cylinders
Single
Single
Single
Engine Configuration
Vertical Shaft
Vertical Shaft
Vertical Shaft
OHV Engine
Yes
Yes
Yes
Length (in)
13.8
13.8
13.8
Width (in)
12.2
12.2
12.2
Height (in)
9.6
9.6
9.6
Weight (lbs)
17
17
17
Bore (in)
2.36
2.50
2.50
Stroke (in)
1.75
1.75
1.75
Engine Fuel
Gasoline
Gasoline
Gasoline
Fuel Tank Capacity (gal)
0.2
0.2
0.2
Oil Capacity (oz)
15
15
15
Lubrication System
Dura-Lube Splash Lubrication
Dura-Lube Splash Lubrication
Dura-Lube Splash Lubrication
Oil Filter
N/A
N/A
N/A
Starter
Prime n' Pull™
Prime n' Pull™
Prime n' Pull™
Air Filter
Oiled Foam
Oiled Foam or Dual-Sealing Paper
Oiled Foam or Dual-Sealing Paper
Muffler
Lo-Tone™
Lo-Tone™ or Super Lo-Tone™
Lo-Tone™ or Super Lo-Tone™
Fuel Shutoff Valve
N/A
N/A
N/A

*All power levels are stated gross torque at 2600 rpm per SAE J1940 as rated by Briggs & Stratton.
**All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
