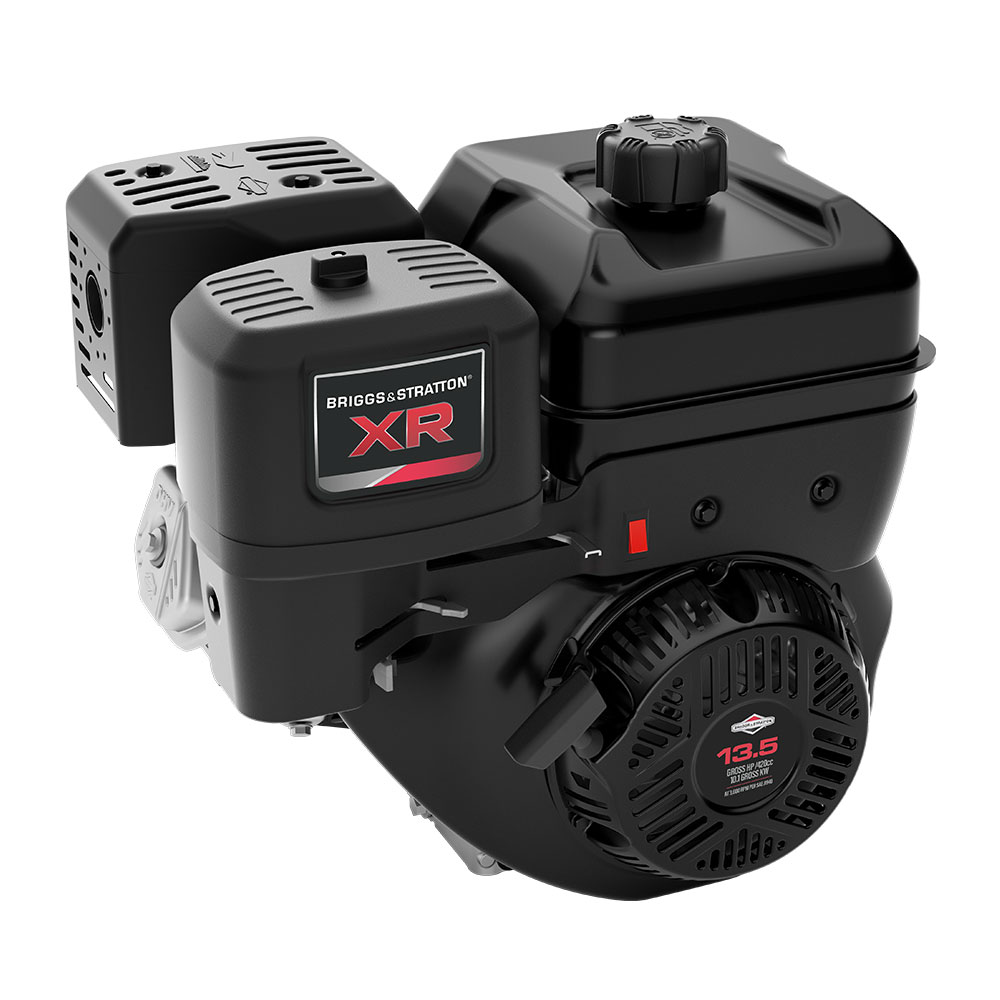

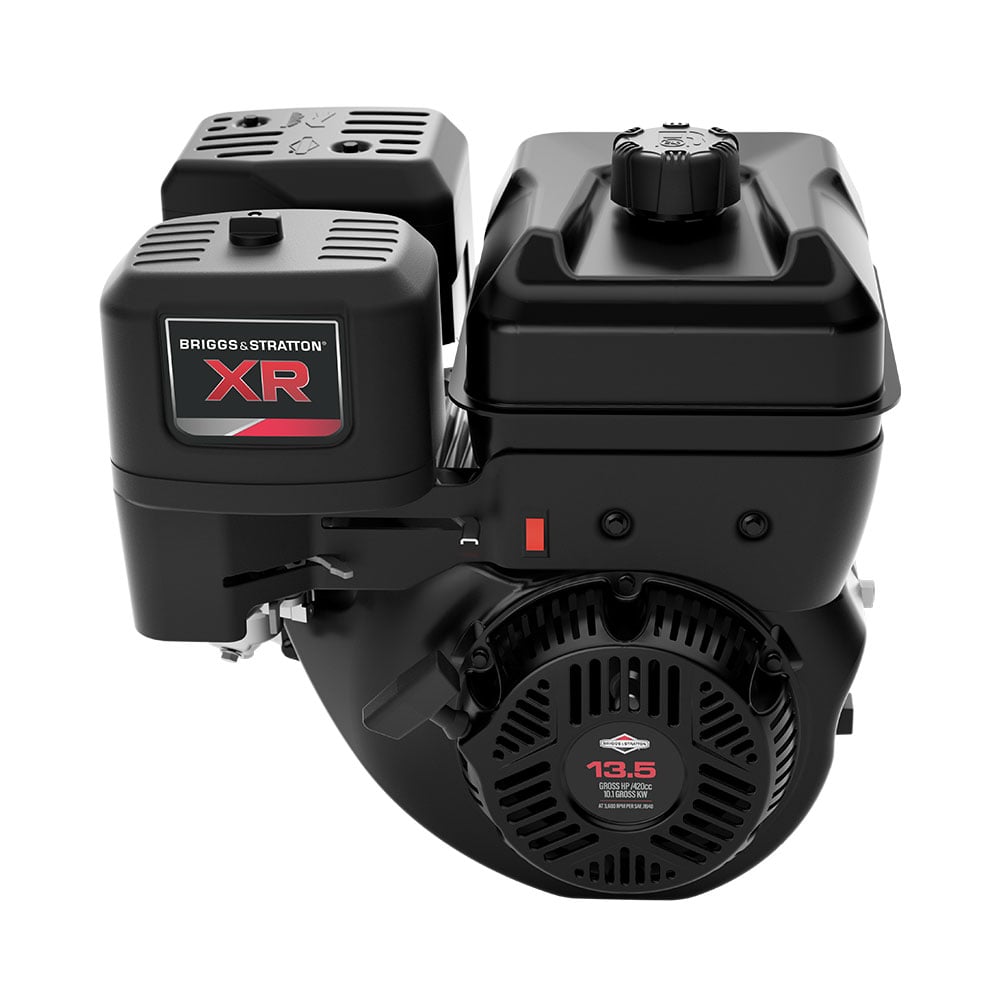

XR 13.5
- Dura-Bore™ Cast Iron Sleeve- Cartridge Air Cleaner with Standard Pre-Cleaner
Horsepower (HP)
13.5
Displacement
420cc
Engine Fuel
Gas
Starter
Manual
Features
Qualified 3x the Life
Qualified 3x the life of the CR engine.
*When compared to the expected life standards of the Briggs & Stratton CR Series engine.
XR Professional Warranty
2-Year Commercial Warranty, 2-Year Consumer Warranty
Forged Crankshaft and Dura-Bore™ Cast Iron Sleeve
Combining a Forged Crankshaft that gives you a longer engine life and a Dura-Bore™ Cast Iron Sleeve that helps withstand the wear and abuse delivers durability.
Specifications
| XR 13.5 | |
| Engine Configuration | Horizontal Shaft |
| Start Type | Manual Choke with Optional Electric Start |
| Engine Fuel | Gas |
| Length (in) | 14.5 |
| Width (in) | 18.1 |
| Height (in) | 18.3 |
| Weight (lbs) | 71.6 |
| Bore (in) | 3.54 |
| Stroke (in) | 2.6 |
| Oil Capacity (oz) | 37 |
| Lubrication System | Dura-Lube Splash Lubrication |
| Air Filter | Dual Element Cartridge |
| Muffler | Lo-Tone™ |
| Fuel Tank Capacity (gal) | 1.709 |
| Warranty | 2 Years |
