22" / 9.50 TP* / Remote Chute

22" / 9.50 TP* / Remote Chute

Single-Stage Snow Blower

Equipped with easy-to-use push button start, a powerful Briggs & Stratton 950 Snow Series™ Engine and a convenient remote chute rotation crank, this snow blower has what it takes to tackle this winter’s snowfall with ease.

9.50

Gross Torque (ft-lbs)

22"

Clearing Width

30'

Throwing Distance

208cc

Displacement

Features

Briggs & Stratton Snow Series™ Engine

The Snow Series engine was designed to deliver optimum power in extreme winter conditions to help you tackle the snowfall quickly and easily. Plus, it includes oversized controls for mitten-friendly operation.

Quick-Adjust Chute Deflector

Easily change the height and distance snow is thrown with a simple squeeze of the chute-mounted handle.

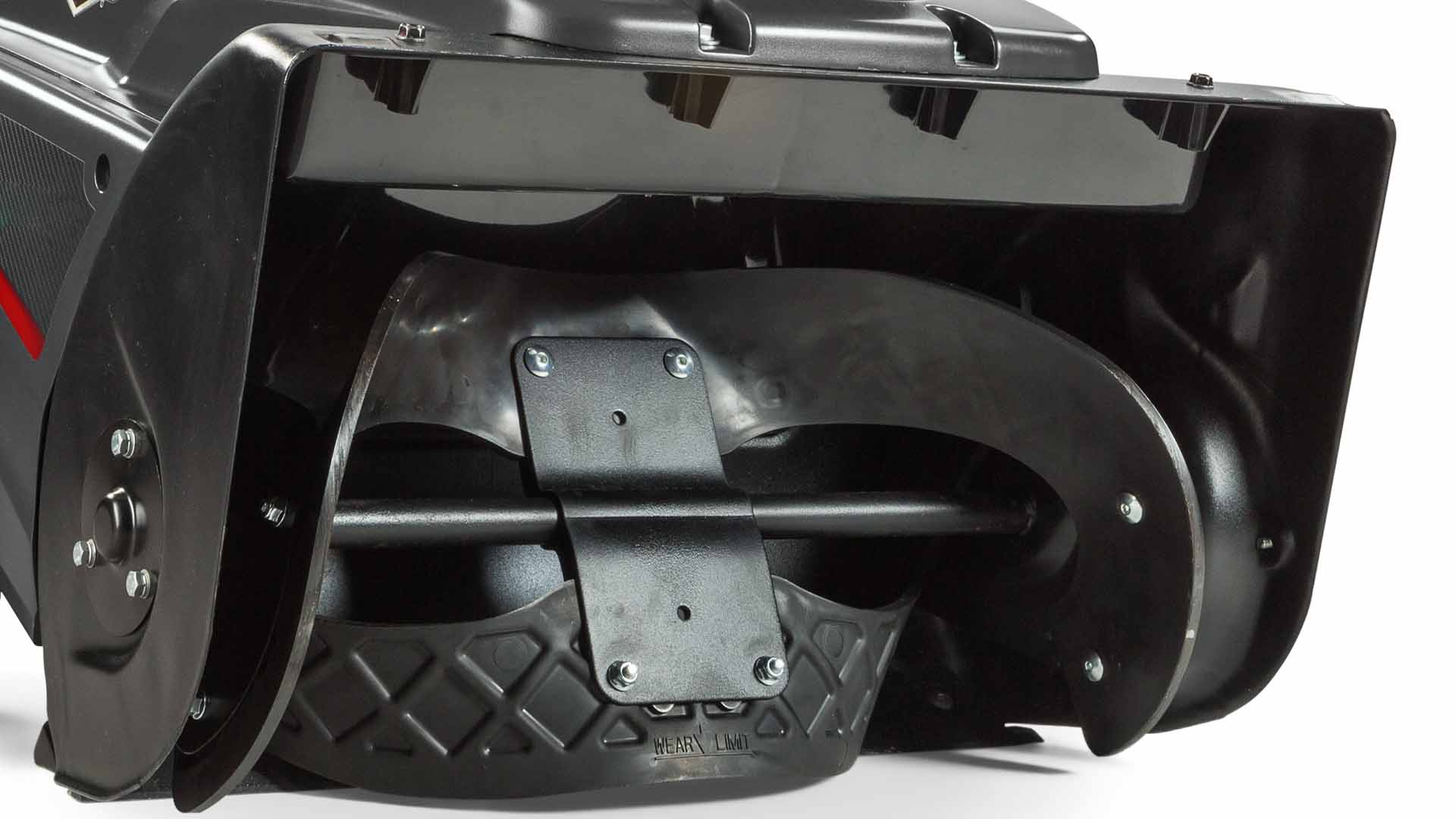

Auger-Assist Drive System

The wear-resistant rubber edged auger cleans snow down to the pavement and helps propel the snow blower forward.

On-the-Go Chute Rotation

Easily rotate the chute 200 degrees from left-to-right with the remotely located chute rotation crank.

Electric Push Button Start

Push button electric starting makes for quick and easy starts down to -20°F***.

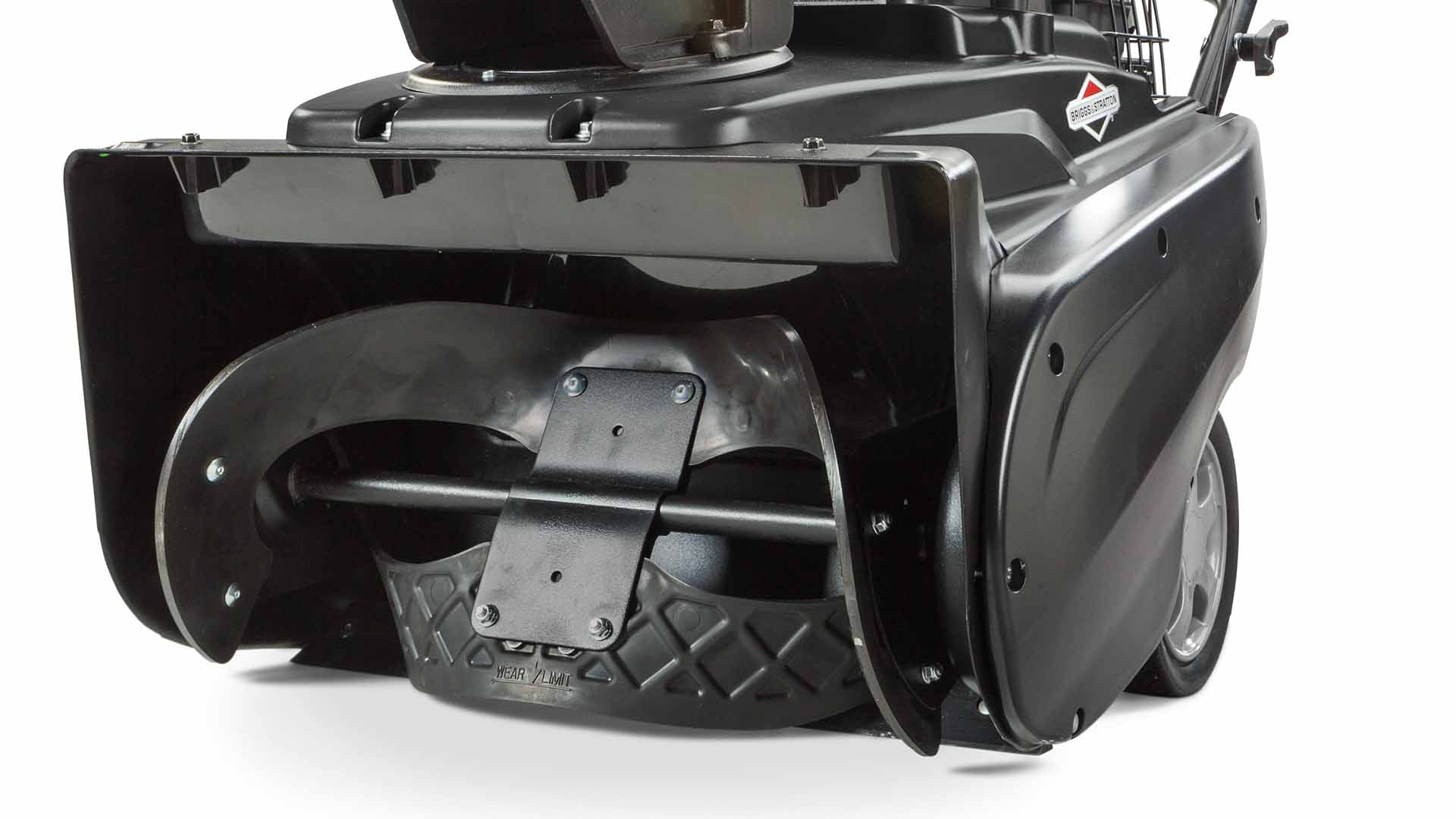

Sturdy Construction

One-piece auger housing with ball bearings provides extra long life.

Compact Size

More maneuverable and easier to control size - plus it saves space in your garage or shed.

Specs

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
1696727-01
US MSRP (Manufacturer Suggested Retail Price)†
$629.00
Type
Single-Stage
Clearing Width (in)
22.0
Throwing Distance**
30
Intake Height (in)
12.5
Auger Diameter (in)
10.0
Auger Type
Thermal Plastic Urethane
Auger Gear Case Material
NA
Number of Impeller Blades
NA
Skid Shoes
NA
Engine Brand
Briggs & Stratton
Engine Series
Snow Series™
Engine Displacement (cc)
208
Torque (ft-lbs, gross)*
9.50
Fuel Tank Capacity (qts)
3.2
Chute Material
Plastic
Chute Deflector
Quick Adjust
Chute Rotation
200° Remote Manual Crank
Drive Type
Auger Propelled
Ground Speed Fwd (mph)
NA
Ground Speed Rev (mph)
NA
Tire Size/Thread (in)
8 x 2
FreeHand™ Control
NA
Dual Trigger Steering
false
Heated Hand Grips
NA
Headlight
NA
Storage Cover
NA
Consumer Warranty (Product) ***
3-Year
Commercial Warranty (Product) ***
90-Day

*All power levels are stated ft.-lbs. gross torque at 2600 RPM per SAE J1940 as rated by Briggs & Stratton
**Capacity and throwing distances can be greatly affected by conditions
***See Operator's Manual for complete warranty details

†MSRP Price is Manufacturer Suggested Retail Price. Prices vary by dealer. Taxes, freight, set-up and delivery not included.
