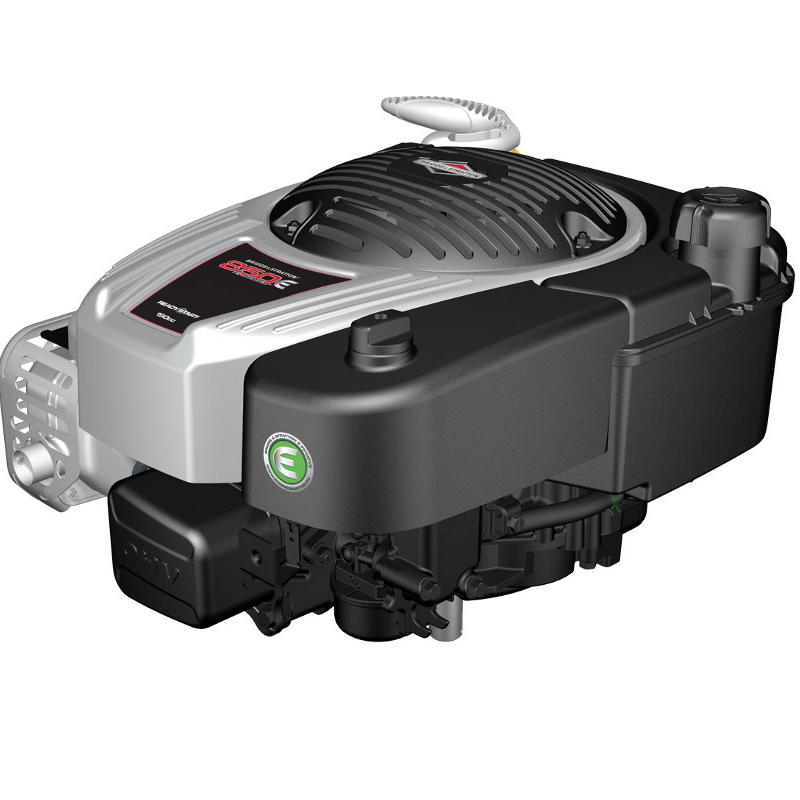

875EX Series™

The 850EX Series engine family utilizes Over Head Valve (OHV) technology, which runs cooler and cleaner - delivering more power, longer engine life and improved fuel economy.

190

Displacement (cc)

Features

Dual Element Air Cleaner

Extra protection

Mechanical Governor

Better performance

Splash Lubrication

Durability

Magnetron® Electronic Ignition System

Easy starting

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
122S02
Engine Displacement (cc)
190
Bore (mm)
68.3
Fuel Tank Capacity (L)
1.1.0
Weight (kg)
11.2
Width (mm)
11.2
Cooling Air Liquid
Air-Cooled
OHV Engine
Yes
Gross Torque* (Nm) @ 3060 rpm
11.9.00
Cylinder
Aluminum
Stroke (mm)
51.8
Oil Capacity (L)
0.7
Length (mm)
397
Height (mm)
238
Number of Cylinders
Single

* All power levels are stated per SAE J1940 as rated by Briggs & Stratton.
