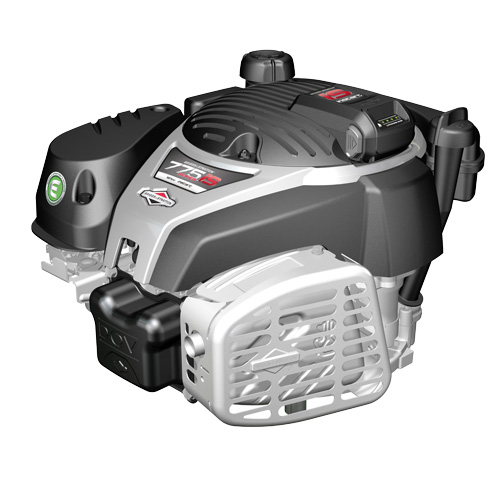

750iS Series™

The 750iS Series™ InStart® engine represents the ultimate performance package in the engine line-up. They naturally incorporate the heritage attributes of power, performance and reliability, but add the most innovative and easiest starting ever seen on a lawnmower. iS SERIES engines use Lithium-lon batteries to provide repeated and reliable starting without the need of a rope-pull. Effortless ingenious starting.The 750iS SERIES engines are ideal to power lawnmowers for gardens up to 1000 square meters.The smarter way to start!

9.8

Gross Torque (Nm) @ 3060 rpm

163

Displacement (cc)

1

Fuel Tank Capacity (L)

Gas

Fuel Type

Features

Super Lo-Tone™ Engine Muffler

A quieter lawn mowing experience.

Magnetron® Electronic Ignition

Fast, reliable and maintenance-free starting.

ReadyStart® Engine Starting System

No prime, no choke, no worries. Just pull for power.

Splash Lubrication System

Delivers superior lubrication to the engine to ensure long life and reliability

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
104M
Gross Torque* (Nm) @ 3060 rpm
9.8.00
Cylinder
Aluminium
Stroke (mm)
44.5
Oil Capacity (L)
0.44
Length (mm)
335
Height (mm)
256
Engine Configuration
Single cylinder, OHV (Overhead Valve), 4-stroke, air-cooled
Engine Displacement (cc)
163
Bore (mm)
68.3
Fuel Tank Capacity (L)
1.0
Weight (kg)
8.5
Width (mm)
213
Commercial Limited Warranty†
90 Day Commercial Limited
Warranty Consumer Engine Info
2 Year Domestic Limited

*Power levels are stated gross torque at 2600rpm per SAE J1940 as rated by Briggs & Stratton.

†See briggsandstratton.com for warranty details.
