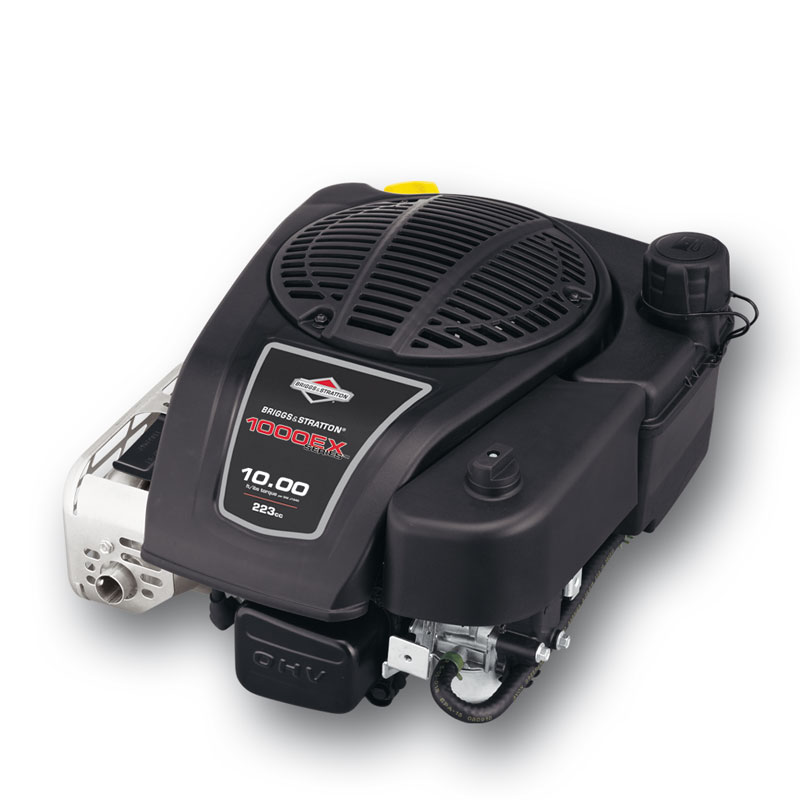

1000EX Series™

Performance and value in one unbeatable package. You’ll love the smooth handling of the lightweight, yet powerful EX Series lawn mower engines. Equipped with the ReadyStart® Starting System-no prime, no choke, just pull for power, a best-in-class torque-to-weight ratio, reduced vibration and quieter operation, all while increasing comfort and extending engine life. The EX Series Engines are a great solution to your lawn care challenges.

briggsandstratton /

Product Details

1000EX Series™
Engine Type Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number 14D9
Gross Torque (Nm) @ 3060 rpm 10ft-lbs or 13.6Nm*
Engine Displacement (cc) 223
Cylinder Aluminium
Bore (mm) 74
Stroke (mm) 51.3
Fuel Tank Capacity (L) 1.1
Oil Capacity (L) 0.7
Dry Weight (kg) 14.1
Length (mm) 401
Width (mm) 339
Height (mm) 257

*Power levels are stated gross torque at 2600rpm per SAE J1940 as rated by Briggs & Stratton.

†See briggsandstratton.com for warranty details.


Not available for repower.
