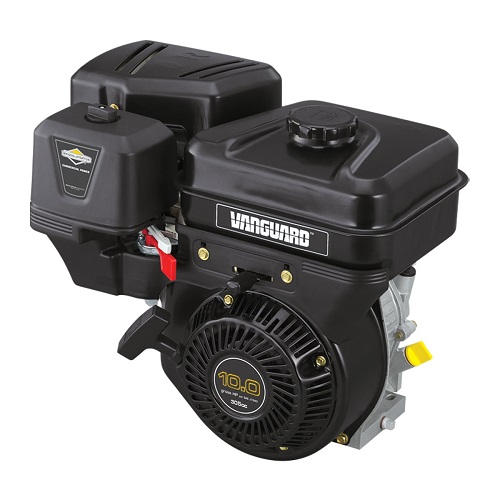

Vanguard™ 8-10 Gross HP

The premium VANGUARD™ horizontal engine range has been designed and application engineered to deliver the most durable performance. The premium engine range offers a full 3-Year limited global warranty for commercial use which demonstrates our commitment to deliver the best performing products.

8

Gross Horsepower

305

Displacement (cc)

0.8

Oil Capacity (L)

3 Year

Warranty

Features

Super Lo-Tone™ Engine Muffler

A quieter lawn mowing experience.

Magnetron® Electronic Ignition

Fast, reliable and maintenance-free starting.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Type
Single cylinder, 4-stroke, air-cooled,OHV
Engine Displacement (cc)
305
Bore (mm)
79
Oil Capacity (L)
0.8
Width (mm)
464.5
Commercial Limited Warranty
3 Year
Warranty Commercial Engine Info
3 Year Commercial Limited†
Gross HP* (kW) @ 3’600 rpm
8*
Cylinder
Cast Iron Sleeve
Stroke (mm)
62
Length (mm)
420.5
Height (mm)
466
Fuel Tank Capacity
3.6
Assembled Weight
25.9
Warranty Commercial Product Info
3 Year Commercial Limited†
Engine Type
Single cylinder, 4-stroke, air-cooled,OHV
Engine Displacement (cc)
305
Bore (mm)
79
Oil Capacity (L)
0.8
Width (mm)
464.5
Commercial Limited Warranty
3 Year
Warranty Commercial Engine Info
3 Year Commercial Limited†
Gross HP* (kW) @ 3’600 rpm
10*
Cylinder
Cast Iron Sleeve
Stroke (mm)
62
Length (mm)
420.5
Height (mm)
466
Fuel Tank Capacity
3.6
Assembled Weight
25.9
Warranty Commercial Product Info
3 Year Commercial Limited†

*Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.
†See briggsandstratton.com for warranty details

Engine Type
Single cylinder, 4-stroke, air-cooled,OHV
Single cylinder, 4-stroke, air-cooled,OHV
Single cylinder, 4-stroke, air-cooled,OHV
Gross HP* (kW) @ 3’600 rpm
10*
8*
10*
Engine Displacement (cc)
305
305
305
Cylinder
Cast Iron Sleeve
Cast Iron Sleeve
Cast Iron Sleeve
Bore (mm)
79
79
79
Stroke (mm)
62
62
62
Oil Capacity (L)
0.8
0.8
0.8
Length (mm)
420.5
420.5
420.5
Width (mm)
464.5
464.5
464.5
Height (mm)
466
466
466
Commercial Limited Warranty
3 Year
3 Year
3 Year
Fuel Tank Capacity
3.6
3.6
3.6
Assembled Weight
25.9
25.9
25.9
Warranty Commercial Engine Info
3 Year Commercial Limited†
3 Year Commercial Limited†
3 Year Commercial Limited†
Warranty Commercial Product Info
3 Year Commercial Limited†
3 Year Commercial Limited†
3 Year Commercial Limited†

*Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.
†See briggsandstratton.com for warranty details
