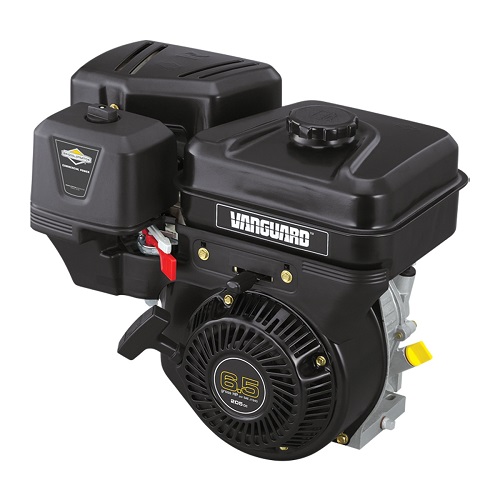

Vanguard™ 5.5-6.5 Gross HP

Vanguard™ 5.5-6.5 Gross HP

The premium VANGUARD™ horizontal engine range has been designed and application engineered to deliver the most durable performance. The premium engine range offers a full 3-Year limited global warranty for commercial use which demonstrates our commitment to deliver the best performing products.

5.5 - 6.5

Gross Horsepower

205

Displacement (cc)

0.6

Oil Capacity (L)

3 Year

Warranty

Features

Lo-Tone™ Muffler

Delivers low noise and good tonal quality.

Magnetron® Electronic Ignition

Fast, reliable and maintenance-free starting.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
13H1
Gross HP* (kW) @ 3’600 rpm
5.5.0
Cylinder
Cast Iron Sleeve
Stroke (mm)
56
Oil Capacity (L)
0.6
Width (mm)
388
Commercial Limited Warranty
3 Year
Fuel Tank Capacity
3.3
Assembled Weight
18.7
Engine Type
Single cylinder, 4-stroke, air-cooled,OHV
Engine Displacement (cc)
205
Bore (mm)
68
Number of Cylinders
Single
Length (mm)
275
Height (mm)
363
Engine Configuration
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number
13H3
Gross HP* (kW) @ 3’600 rpm
6.5.0
Cylinder
Cast Iron Sleeve
Stroke (mm)
56
Oil Capacity (L)
0.6
Width (mm)
388
Commercial Limited Warranty
3 Year
Fuel Tank Capacity
3.3
Assembled Weight
18.7
Engine Type
Single cylinder, 4-stroke, air-cooled,OHV
Engine Displacement (cc)
205
Bore (mm)
68
Number of Cylinders
Single
Length (mm)
275
Height (mm)
363
Engine Configuration
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Warranty Commercial Engine Info
3 year Commercial

*Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.
†See briggsandstratton.com for warranty details.

Model Number
13H3
13H1
13H3
Engine Type
Single cylinder, 4-stroke, air-cooled,OHV
Single cylinder, 4-stroke, air-cooled,OHV
Single cylinder, 4-stroke, air-cooled,OHV
Gross HP* (kW) @ 3’600 rpm
6.5.0
5.5.0
6.5.0
Engine Displacement (cc)
205
205
205
Cylinder
Cast Iron Sleeve
Cast Iron Sleeve
Cast Iron Sleeve
Bore (mm)
68
68
68
Stroke (mm)
56
56
56
Number of Cylinders
Single
Single
Single
Oil Capacity (L)
0.6
0.6
0.6
Length (mm)
275
275
275
Width (mm)
388
388
388
Height (mm)
363
363
363
Commercial Limited Warranty
3 Year
3 Year
3 Year
Engine Configuration
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Fuel Tank Capacity
3.3
3.3
3.3
Assembled Weight
18.7
18.7
18.7
Warranty Commercial Engine Info
3 year Commercial
3 year Commercial

*Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.
†See briggsandstratton.com for warranty details.
