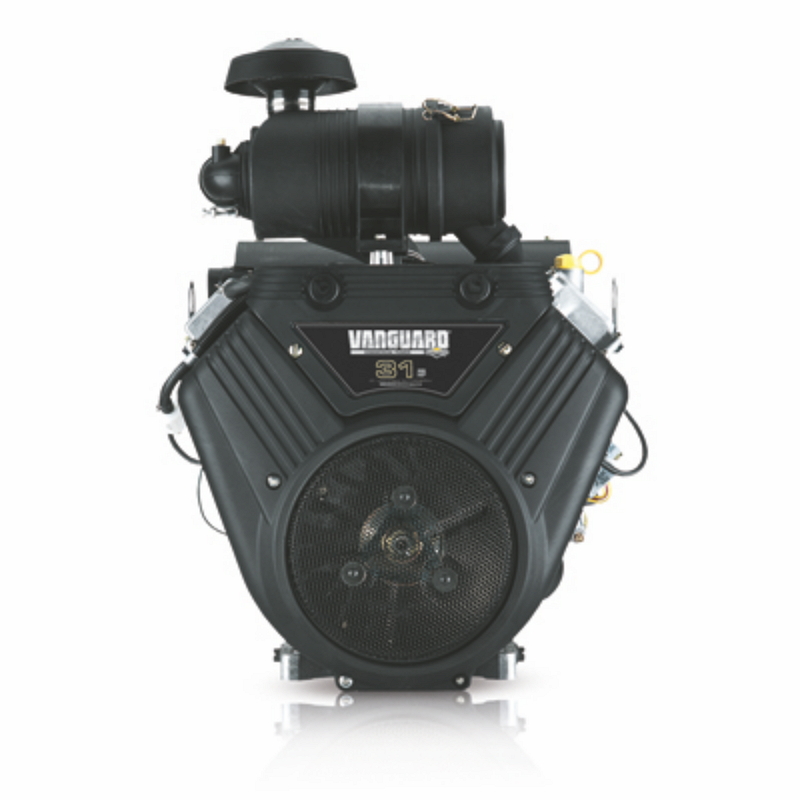

Vanguard™ 31 Gross HP

Vanguard™ 31 Gross HP

The Vanguard range Horizontal engines have been designed and application engineered to deliver the best value & performance, as well as setting the global standard for industrial grade petrol engines. The high end range offers 5.5-6.5, 8-10, 13, 14-16, 18, 21-23, 25-31, 33-35, 23.6, 26.5, and 31-34 HP. Briggs & Stratton Vanguard engines offer a 3-Year Limited Global Warranty for a full horsepower range of horizontal and vertical shaft air-cooled engines. For terms and conditions please visit www.vanguardengines.com.

Features

Optional Centrifugal Multi Stage Air Cleaner

Improved protection and durability.

Mechanical Governor

Better performance

Full Pressure Lubrication with Oil Filter

Durability

Cast Iron Sleeve

Withstands wear and abuse.

Magnetron® Electronic Ignition System

Easy starting

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
5434
Engine Type
V-Twin, 4-stroke, air cooled, OHV (Overhead Valve)
Gross HP* (kW) @ 3’600 rpm
31.0
Engine Displacement (cc)
896
Cylinder
Cast Iron Sleeve
Bore (mm)
86
Stroke (mm)
78
Number of Cylinders
V-Twin
Oil Capacity (L)
2.3
OHV Engine
Yes
Weight (kg)
56.8
Length (mm)
379
Width (mm)
496
Height (mm)
725
