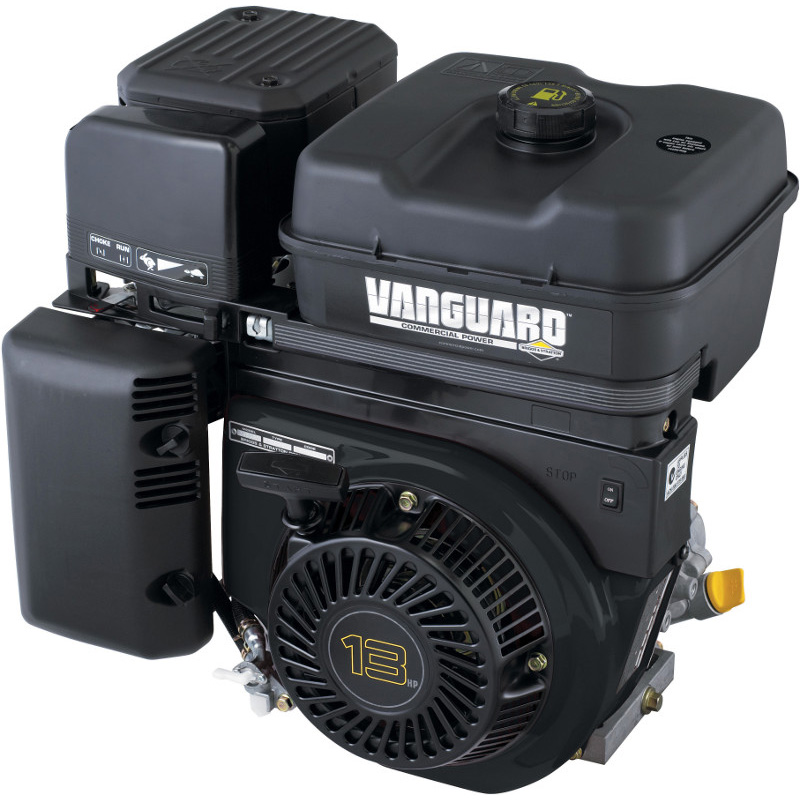

Vanguard™ 13 Gross HP

Vanguard™ 13 Gross HP

The Vanguard range Horizontal engines have been designed and application engineered to deliver the best value & performance, as well as setting the global standard for industrial grade petrol engines. The high end range offers 5.5-6.5, 8-10, 13, 14-16, 18, 21-23, 25-31, 33-35, 23.6, 26.5, and 31-34 HP. Briggs & Stratton Vanguard engines offer a 3-Year Limited Global Warranty for a full horsepower range of horizontal and vertical shaft air-cooled engines. For terms and conditions please visit www.vanguardengines.com.

13

Gross Horsepower

392

Displacement (cc)

1.4

Oil Capacity (L)

3 Years

Warranty

Features

Mechanical Governor

Better performance

Splash Lubrication System

Delivers superior lubrication to the engine to ensure long life and reliability.

Cast Iron Sleeve

Withstands wear and abuse.

Magnetron® Electronic Ignition

Fast, reliable and maintenance-free starting.

Dual Element Air Cleaner

Extra protection.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
2454
Engine Type
Single cylinder, 4-stroke, air-cooled, OHV
Gross HP* (kW) @ 3’600 rpm
13.0
Engine Displacement (cc)
392
Cylinder
Cast Iron Sleeve
Bore (mm)
89
Stroke (mm)
63
Number of Cylinders
Single
Oil Capacity (L)
1.4
OHV Engine
Yes
Weight (kg)
33.2
Length (mm)
420.5
Width (mm)
332
Height (mm)
446
Commercial Limited Warranty
3 Years
Engine Configuration
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Fuel Tank Capacity
7.9

* All power levels are stated per SAE J1940 as rated by Briggs & Stratton.
