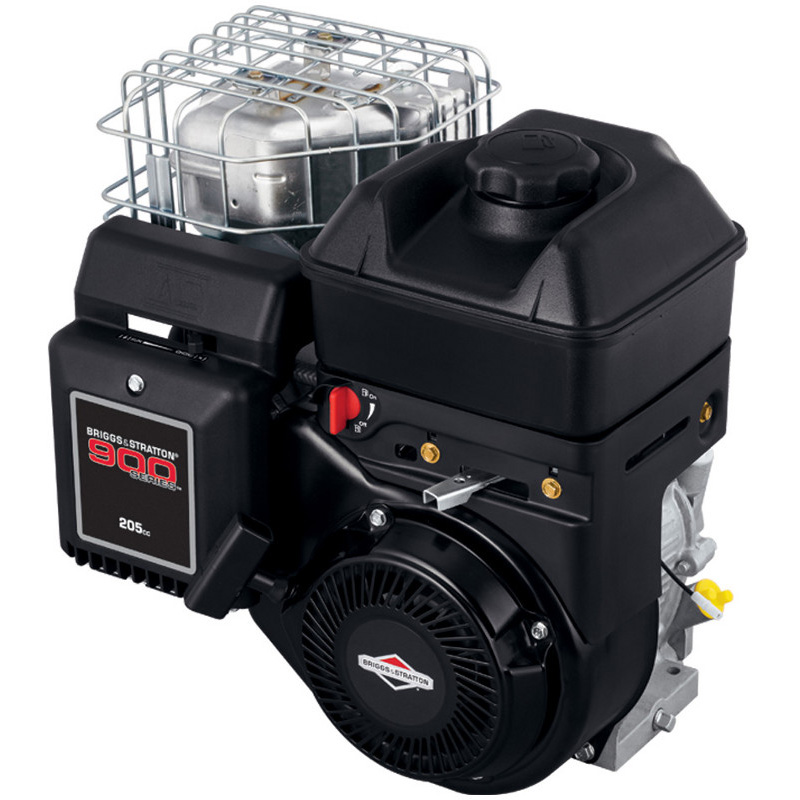

900 Series™

900 Series™

Briggs & Stratton® horizontal engines are tough, reliable and efficient. They offer the best value for entry market engines.

9

Gross Horsepower (kW) @3'600 rpm

205

Displacement (cc)

3.8

Fuel Tank Capacity (L)

Gas

Fuel Type

Features

Splash Lubrication System

Delivers superior lubrication to the engine to ensure long life and reliability.

Mechanical Governor

Better performance

Cast Iron Sleeve

Durability

Oiled Foam Air Cleaner

Protection

Magnetron® Electronic Ignition

Fast, reliable and maintenance-free starting.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
1220
Gross Power HP* (kW) @3'600 rpm
9.0
Cylinder
Cast Iron Sleeve
Stroke (mm)
55.9
Oil Capacity (L)
0.6
Height (mm)
386
Assembled Weight
15.3
Engine Configuration
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Engine Displacement (cc)
205
Bore (mm)
68.3
Fuel Tank Capacity (L)
3.8
Length (mm)
264
Legacy Item ID
12089286_BriggsAndStratton

* All power levels are stated per SAE J1940 as rated by Briggs & Stratton.
