750 Series™

750 Series™

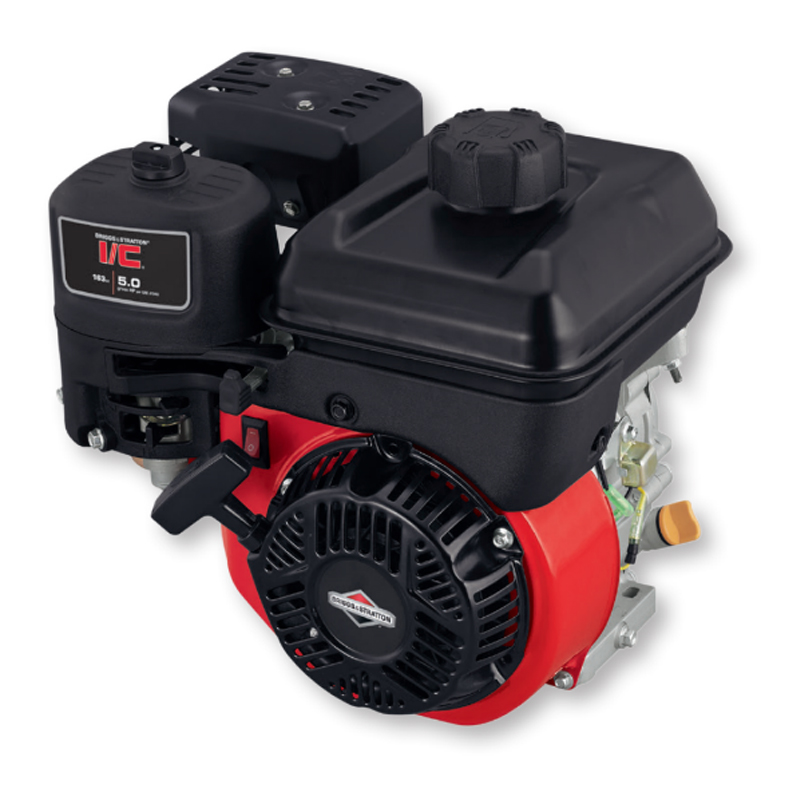

Briggs & Stratton® horizontal engines are tough, reliable and efficient. They offer the best value for entry market engines.

5.0

Gross Horsepower (kW) @3'600 rpm

163

Displacement (cc)

3.3

Fuel Tank Capacity (L)

Gas

Fuel Type

Features

Cast Iron Sleeve

Durability

Mechanical Governor

Better performance

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
1062
Engine Configuration
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Gross Power HP* (kW) @3'600 rpm
5.0
Engine Displacement (cc)
163
Cylinder
Cast Iron Sleeve
Bore (mm)
68.0
Stroke (mm)
45.0
Fuel Tank Capacity (L)
3.3
Oil Capacity (L)
0.61
Length (mm)
364
Width (mm)
385
Height (mm)
325
Gross Torque
7.0
Assembled Weight
13.0
Legacy Item ID
23084221_Briggs
Warranty Commercial Engine Info
1 Year
Warranty Consumer Product Info
2 Years

*Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.

†See briggsandstratton.com for warranty details.
