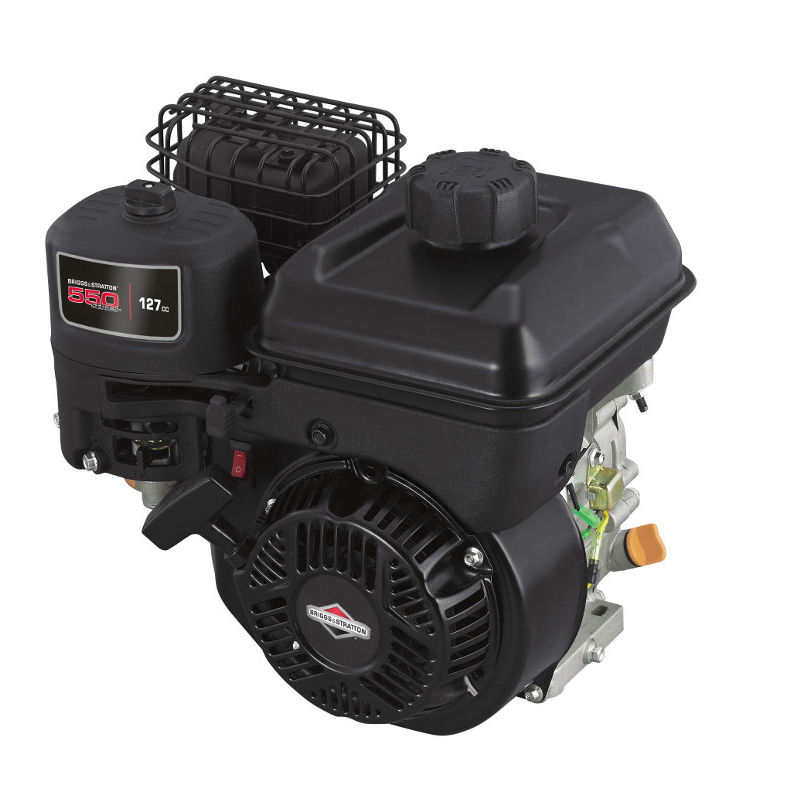

550 Series™

550 Series™

Briggs & Stratton® horizontal engines are tough, reliable and efficient. They offer the best value for entry market engines.

3.5

Gross Horsepower (kW) @3'600 rpm

127

Displacement (cc)

1.8

Fuel Tank Capacity (L)

Gas

Fuel Type

Features

Mechanical Governor

Better performance

Splash Lubrication System

Delivers superior lubrication to the engine to ensure long life and reliability.

Cast Iron Sleeve

Durability

Magnetron® Electronic Ignition

Fast, reliable and maintenance-free starting.

Dual Element Air Cleaner

Extra protection.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
83132
Engine Configuration
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Gross Power HP* (kW) @3'600 rpm
3.5.0
Engine Displacement (cc)
127
Cylinder
Cast Iron Sleeve
Bore (mm)
62
Stroke (mm)
42
Fuel Tank Capacity (L)
1.8
Oil Capacity (L)
0.6
Length (mm)
261
Width (mm)
347
Height (mm)
326
Weight (kg)
13
Assembled Weight
13.0
Legacy Item ID
12089272_BriggsAndStratton

* All power levels are stated per SAE J1940 as rated by Briggs & Stratton.
