SimpliPHI™ 6kW Inverter

Click and drag image to rotate.

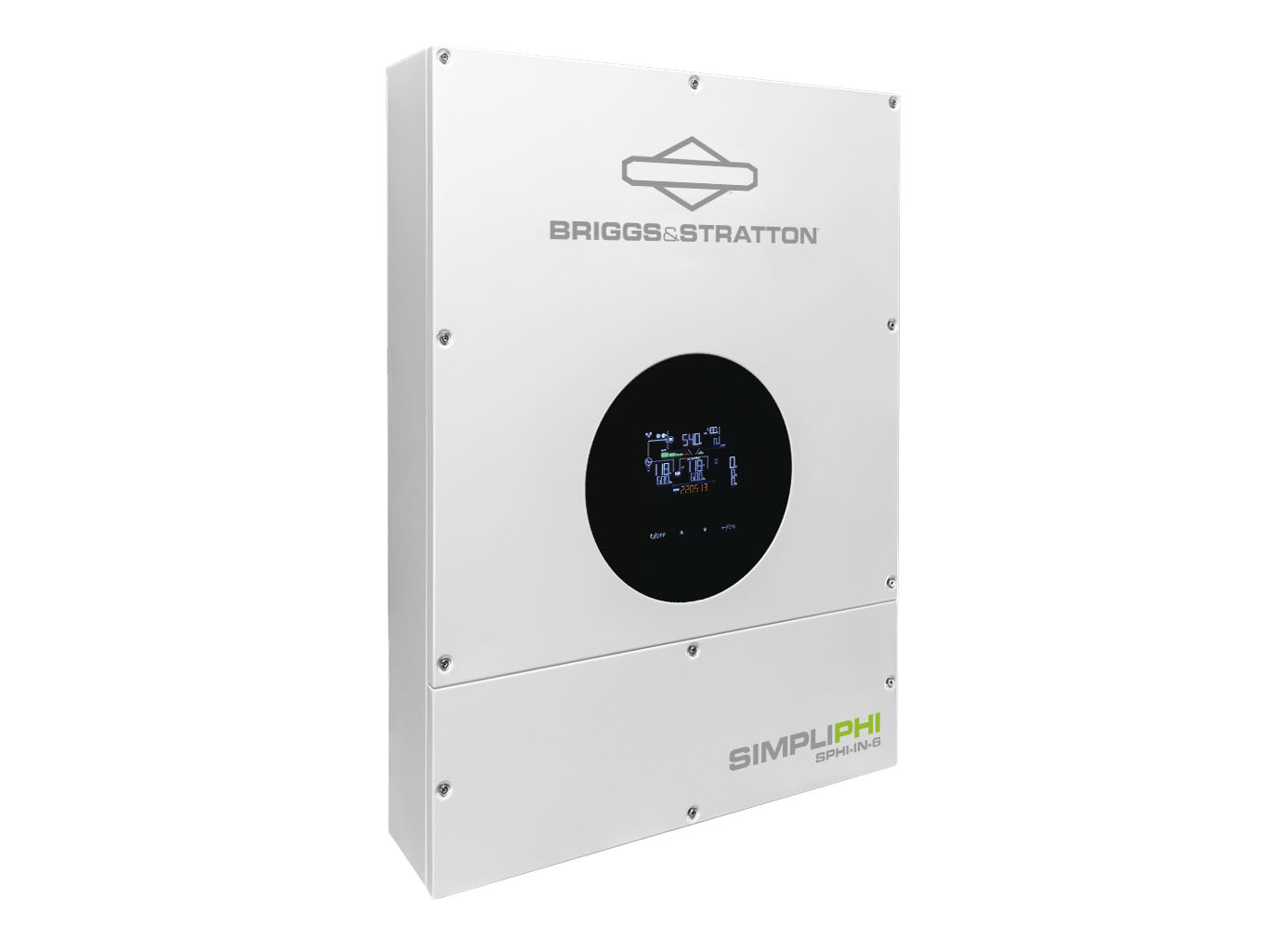

The SimpliPHI 6kW Hybrid Inverter is an efficient and easy-to-use hybrid inverter with integrated MPPT that seamlessly integrates with the SimpliPHI 4.9 kWh Battery. This unit is built smart, designed to pair with solar, generator or utility inputs in either AC or DC configurations – whether on the grid or off for any application requirement for a home or business.

Click here to view spec sheet.
Click here to view sell sheet.

Model Number : 053023-00

Features

Scalable for Any Application

Scalable up to 9 inverters or a total of 54 kW of power

Off-grid and grid-connected systems

Simple installation for both AC coupled retrofit and new DC coupled systems.

Versatile Installation Options

IP65 rating supports all weather conditions for both indoor or outdoor installations.

Warranty Coverage

10-year limited warranty.1

Seamless Transition

Less than 8 milliseconds of seamless transition protects sensitive electronics and minimizes downtime.

Simple Digital Interface

Easy programming and monitoring of primary system functions on the LCD inverter interface.

EnergyTrakTM Enabled

Peace of mind that your system is working optimality with remote monitoring all from an app.

1See operator’s manual or BRIGGSandSTRATTON.com for complete warranty details.

Specifications

At least one product must be displayed. Please select another option to remove this product

Model Number
SPHI-IN-6
Battery Input Voltage
48VDC
Safety Features
Rapid shutdown, Arc fault protection, PV reverse polarity protection, Ground fault monitoring, Residual current monitoring, Insulation resistor detection, Overcurrent protection, Short circuit protection
Rapid Shutdown Capable
Integrated Transmitter
Maximum Paired Solar (DC Input)
7.5 kW
Integrated MPPT Charge Controllers
2 inputs w/ 2 strings each
Loads Supported
120/240 VAC
Maximum Continuous Power
6,000 VA
Maximum Output Power
6 kW
Instantaneous Power (100ms)
12,000 VA
Surge Power (5s)
9,000 VA
CEC Weighted Efficiency
96.50%
Parallel Stacking
9 Inverters
Warranty Period
10-Year Limited Warranty1
Battery Compatibility
Lithium-ready
Automatic Generator Start
Included
Monitoring
Briggs & Stratton EnergyTrak
Certifications
UL 1741 SA, UL 1741 SB (in process), IEEE 1547.1-2020, IEC/EN 62109-1&2, EN 61000-6-2&3, EN 61000-3-11&12
Dimensions (W x H x D)
20.28 x 27.55 x 8.50 in (515 x 700 x 215.5 mm)
Weight
86 lb (39 kg)
Back Panel Dimensions (W x H x D)
20.07 x 14.9 x 1.2 in (509.7 x 378.4 x 30.4 mm)
Installation Manual
Manuals

1See operator’s manual or BRIGGSandSTRATTON.com for complete warranty details.
*All specifications listed are typical/nominal and subject to change without notice.
**Engineered and Manufactured in California, USA
***BS1384 - 5/22
