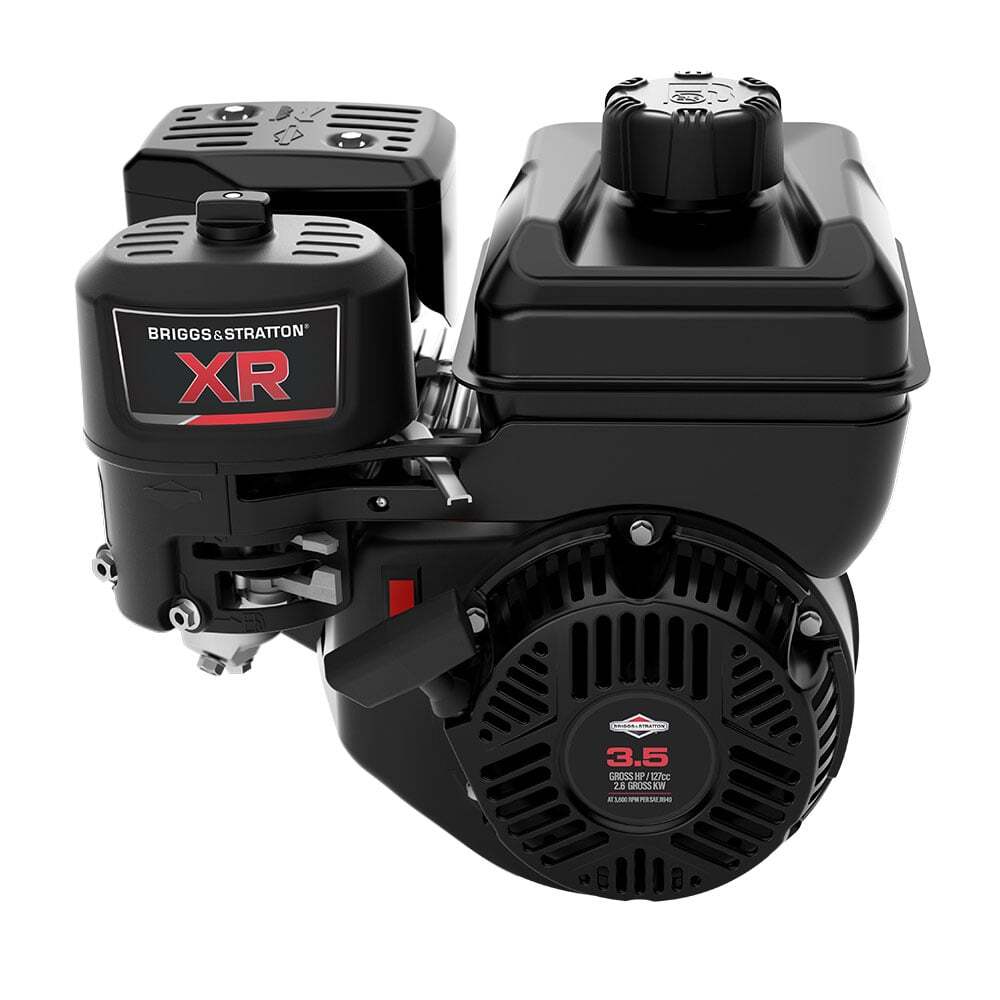

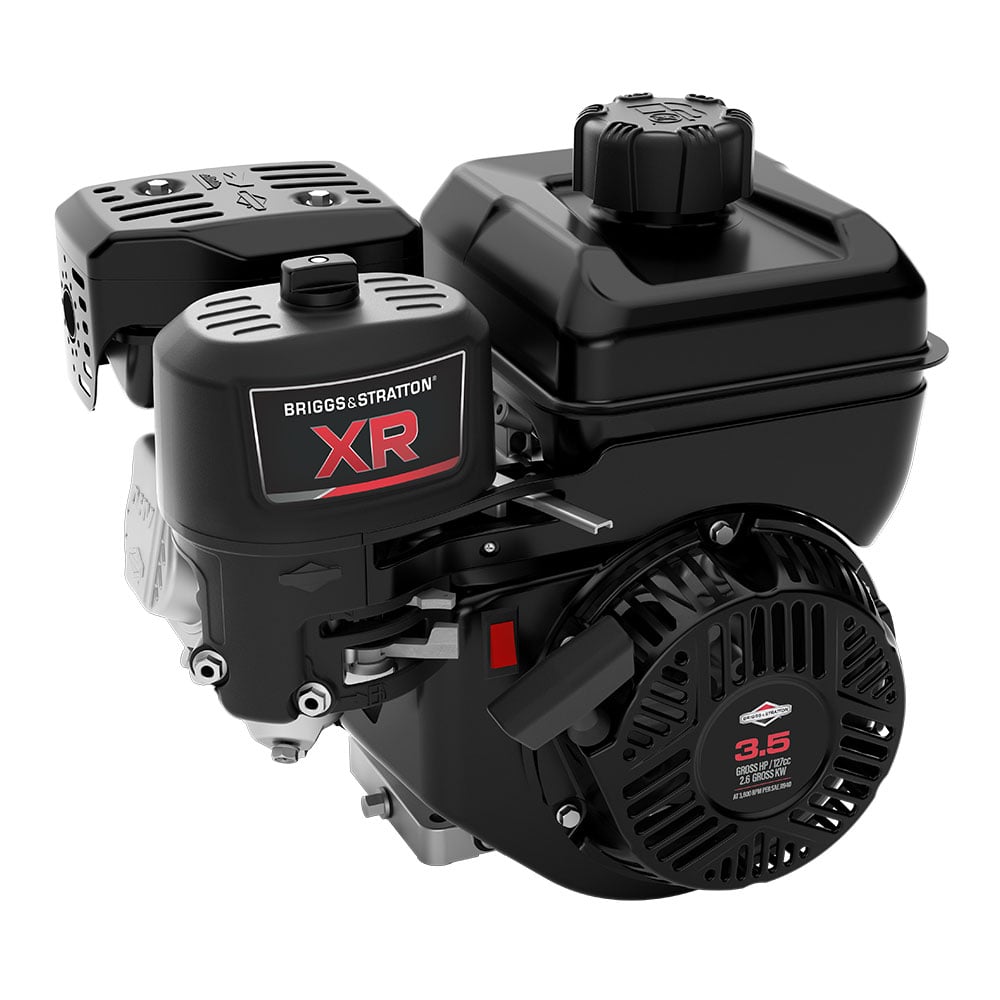

XR® 3.5 HP Gasoline Engine
The XR® 3.5-13.5 HP Gasoline Engines deliver easy starting, quieter operation, and life-extending features. With OHV technology coupled with a Lo-Tone muffler, these engines save on fuel economy with optimal power, greater torque, and improved sound and tonal quality.Displacement
127cc
Oil Capacity (L)
0.6
Horsepower (HP)
3.5
Engine Fuel
Gasoline
Features
OHV
Runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy.
Lo-Tone™Muffler
Delivers exceptional sound and tonal quality.
Specifications
| XR® 3.5 HP Gasoline Engine | |
| Gross Power HP (kW) @3'600 rpm | 3.5 |
| Engine Displacement (cc) | 127 |
| Cylinders | Single |
| Start Type | Manual Choke |
| Engine Fuel | Gasoline |
| Length (in) | 261 |
| Width (in) | 347 |
| Height (in) | 326 |
| Weight (kg) | 13.0 |
| Bore (mm) | 62.0 |
| Stroke (mm) | 42.00 |
| Oil Capcity (L) | 0.60 |
| Lubrication System | Dura-Lube Splash Lubrication |
| Air Filter | Dual Element Cartridge |
| Muffler | Lo-Tone™ |
| Certified Power Rating | Download Power Curve |
| Fuel Tank Capacity (L) | 1.90 |
| Warranty | 2 Years |
*Power levels are stated gross horsepower per SAE J1940 as rated by Briggs & Stratton.
