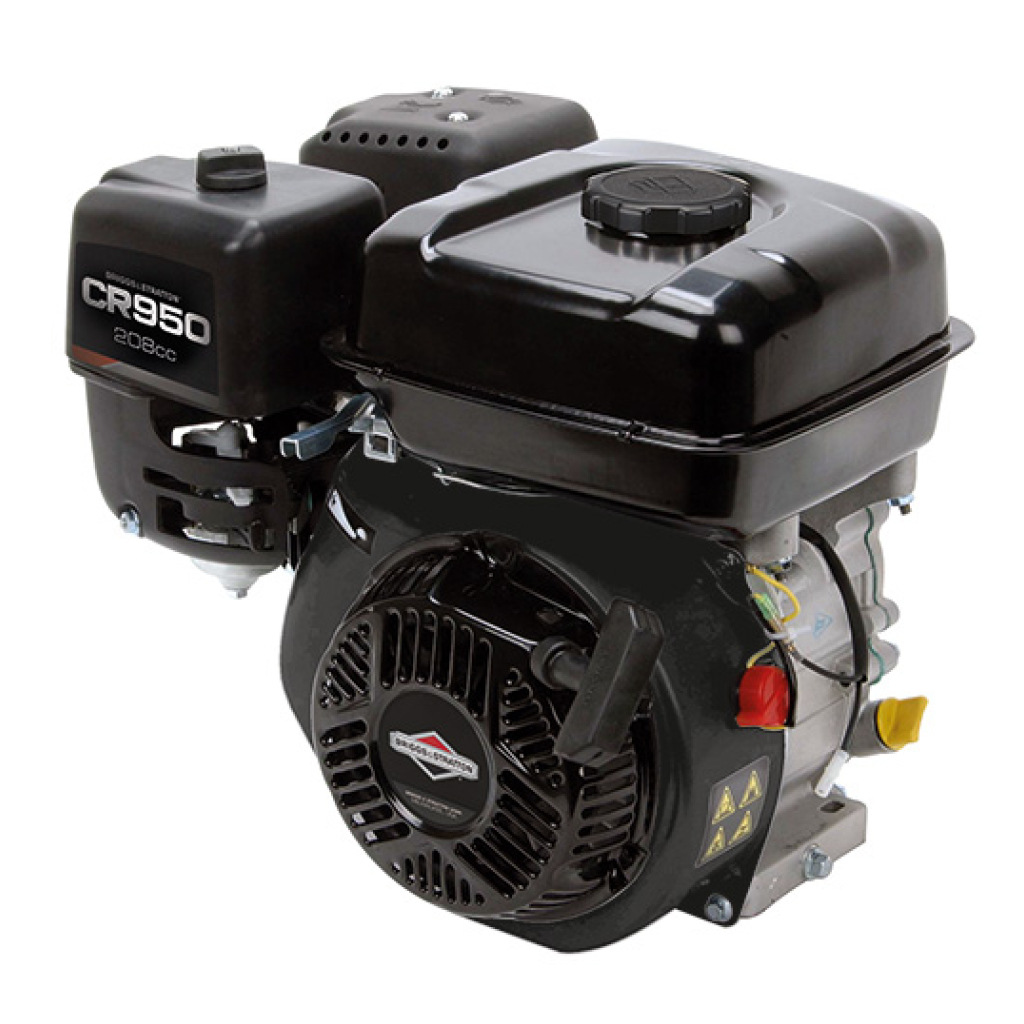

CR950

CR950

Reliable performance, exceptional value.

The CR950 horizontal shaft engines provide the best feature value available for light duty residential use. This engine features a Gross Torque* of 12,88 Nm, combined with a 208cc displacement.

208

Displacement (cc)

3,0

Fuel Tank Capacity (l)

OHV

Engine Type

Features

Splash Lubrication

Ensures adequate lubrication throughout the crankcase during normal operating conditions.

Lo-Tone™ Muffler

Delivers low noise and good tonal quality

Float Feed Carburettor

Optimized fuel delivery for improved startability and superior performance.

Paper Air Cleaner (Oval)

Provides improved protection against airborne debris entering the engine

Cast Iron Sleeve

Adds integrity and durability that withstand wear and abuse while providing improved oil control.

Magnetron® Electronic Ignition System

Ensures maintenance-free, easy starting.

OHV Technology

Optimized performance that delivers longer engine life and improved fuel economy.

Mechanical Governor

Controls the engine speed to deliver more usable power under heavy usage.

Dual Ball Bearings

Provides added durability and extends engine life

For More Information

Visit our Glossary of Engine Terms

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Technology
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number
13R2
Gross Torque* (Nm) @ 2'600 rpm
12,88
Displacement (cc)
208
Cylinder
Cast Iron sleeve
Bore (mm)
70,0
Stroke (mm)
54,0
Fuel Tank Capacity (l)
3,0
Oil Capacity (l)
0,6
Dry Weight (kg)
15,1
Dimensions Length (mm)
291
Dimensions Width (mm)
372
Dimensions Height (mm)
330
Certified Power Rating

* Power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
