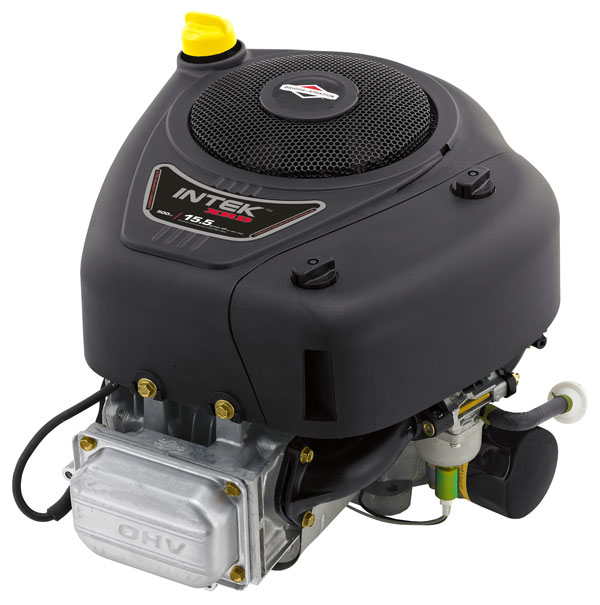

    Intek™ (Single Cylinder)

    Intek Single Cylinder

    Intek™ (Single Cylinder)

    Discover a new standard in reliability. The powerful Intek™ Series riding mower engines deliver superior performance and durability.

    Feature

    Features

    Intek Series™ Riding Mower Engine

    More durable. More efficient. More powerful. Mows the lawn and lasts long.

    Advanced Debris Management System

    Keeps the engine clean by deflecting and ejecting grass and debris for a longer engine life.

    Anti-Vibration System - AVS®

    Provides a smoother ride and more comfort.

    ReadyStart® Engine Starting System

    No prime, no choke, no worries. Just pull for power.

    Specifications

    Only 2 products can be compared at once. Please remove one of your selections to compare this product.

    Only 3 products can be compared at once. Please remove one of your selections to compare this product.

    At least one product must be displayed. Please select another option to remove this product

    Engine Type
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Gross Power HP* (kW) @3'600 rpm
    11.5*
    Engine Displacement (cc)
    344
    Cylinder
    Cast Iron Sleeve
    Bore (mm)
    87.3
    Stroke (mm)
    57.5
    Fuel Tank Capacity (L)
    2.6 (optional)
    Oil Capacity (L)
    1.40
    Weight (kg)
    26.8
    Length (mm)
    452
    Width (mm)
    393
    Height (mm)
    327
    Limited Consumer Warranty †
    2 Years
    Limited Commercial Warranty †
    90 Days
    Warranty Commercial Product
    90 Days Commercial Limited†

    *Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.

    †See briggsandstratton.com for warranty details.

    Engine Type
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Engine Configuration
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Gross Power HP* (kW) @3'600 rpm
    13.5
    Engine Displacement (cc)
    500
    Cylinder
    Cast Iron Sleeve
    Bore (mm)
    90.5
    Stroke (mm)
    77.8
    Fuel Tank Capacity (L)
    2.6 (optional)
    Oil Capacity (L)
    1.40
    Weight (kg)
    29.5
    Length (mm)
    479
    Width (mm)
    393
    Height (mm)
    327
    Limited Consumer Warranty †
    2 Years
    Limited Commercial Warranty †
    1 Year

    *Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.

    †See briggsandstratton.com for warranty details.

    Engine Type
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Engine Configuration
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Gross Power HP* (kW) @3'600 rpm
    15.5
    Engine Displacement (cc)
    500
    Cylinder
    Cast Iron Sleeve
    Bore (mm)
    90.5
    Stroke (mm)
    77.8
    Oil Capacity (L)
    1.40
    Weight (kg)
    29.5
    Length (mm)
    479
    Width (mm)
    393
    Height (mm)
    327
    Limited Consumer Warranty †
    2 Years
    Limited Commercial Warranty †
    1 Year

    *Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.

    †See briggsandstratton.com for warranty details.

    Engine Type
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Gross Power HP* (kW) @3'600 rpm
    11.5*
    13.5
    15.5
    Engine Displacement (cc)
    344
    500
    500
    Cylinder
    Cast Iron Sleeve
    Cast Iron Sleeve
    Cast Iron Sleeve
    Bore (mm)
    87.3
    90.5
    90.5
    Stroke (mm)
    57.5
    77.8
    77.8
    Fuel Tank Capacity (L)
    2.6 (optional)
    2.6 (optional)
    Oil Capacity (L)
    1.40
    1.40
    1.40
    Weight (kg)
    26.8
    29.5
    29.5
    Length (mm)
    452
    479
    479
    Width (mm)
    393
    393
    393
    Height (mm)
    327
    327
    327
    Limited Consumer Warranty †
    2 Years
    2 Years
    2 Years
    Limited Commercial Warranty †
    90 Days
    1 Year
    1 Year
    Warranty Commercial Product
    90 Days Commercial Limited†
    Engine Configuration
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)
    Single cylinder, 4-stroke, air cooled, OHV (Overhead Valve)

    *Power levels are stated gross horsepower at 3600rpm per SAE J1940 as rated by Briggs & Stratton.

    †See briggsandstratton.com for warranty details.
