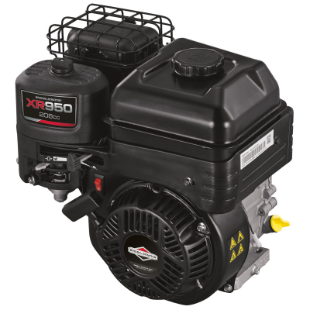

XR950
XR950

XR950

High Performance and Extended Durability.

Briggs & Stratton general purpose horizontal shaft engines are built to be tough, reliable and efficient.

This engine is equipped with 12,88 Nm Gross Torque* and 208cc. Designed for frequent use in demanding work environments.

12,88

Gross Torque (Nm)

208,0

Displacement (cc)

3,1

Fuel Tank Capacity (l)

OHV

Engine Type

Features

Cartridge Air Cleaner with foam pre-cleaner (dual element)

Provides improved protection against airborne debris entering the engine

Lo-Tone™ Muffler

Delivers low noise and good tonal quality

Cast Iron Sleeve

Adds integrity and durability that withstand wear and abuse while providing improved oil control.

OHV Technology

Optimized performance that delivers longer engine life and improved fuel economy.

Dual Ball Bearings

Provides added durability and extends engine life

Mechanical Governor

Controls the engine speed to deliver more usable power under heavy usage.

Magnetron® Electronic Ignition System

Ensures maintenance-free, easy starting.

Higher Torque

Provides more power resulting in improved equipment productivity.

Float Feed Carburetor

Optimized fuel delivery for improved startability and superior performance.

Specs

Engine Technology
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Gross Torque* (Nm) @ 2'600 rpm
12,88
Cylinder
Cast Iron sleeve
Stroke (mm)
55,9
Oil Capacity (l)
0,6
Dimensions Length (mm)
321
Dimensions Height (mm)
346
Model Number
130G
Displacement (cc)
208,0
Bore (mm)
68,3
Fuel Tank Capacity (l)
3,1
Dry Weight (kg)
16,0
Dimensions Width (mm)
376
Certified Power Rating

* Power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
