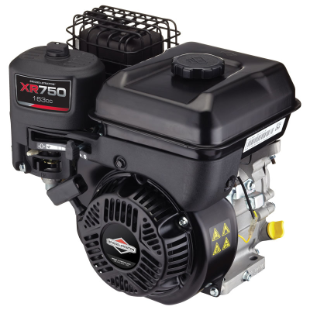

XR750

High Performance and Extended Durability.

Briggs & Stratton general purpose horizontal shaft engines are built to be tough, reliable and efficient.

This engine is equipped with 10,17 Nm Gross Torque* and 163cc. Designed for frequent use in demanding work environments.

10,17

Gross Torque (Nm)

163

Displacement (cc)

3,1

Fuel Tank Capacity (l)

OHV

Engine Type

Features

Lo-Tone™ Muffler

Delivers low noise and good tonal quality

Cartridge Air Cleaner with foam pre-cleaner (dual element)

Provides improved protection against airborne debris entering the engine

Cast Iron Sleeve

Adds integrity and durability that withstand wear and abuse while providing improved oil control.

OHV Technology

Optimized performance that delivers longer engine life and improved fuel economy.

Dual Ball Bearings

Provides added durability and extends engine life

Higher Torque

Provides more power resulting in improved equipment productivity.

Float Feed Carburettor

Optimized fuel delivery for improved startability and superior performance.

Magnetron® Electronic Ignition System

Ensures maintenance-free, easy starting.

Mechanical Governor

Controls the engine speed to deliver more usable power under heavy usage.

Specs

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Engine Technology
Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Gross Torque* (Nm) @ 2'600 rpm
10,17
Cylinder
Cast Iron sleeve
Stroke (mm)
45,0
Oil Capacity (l)
0.6
Dimensions Length (mm)
259
Dimensions Height (mm)
334
Model Number
1062
Displacement (cc)
163
Bore (mm)
68,0
Fuel Tank Capacity (l)
3,1
Dry Weight (kg)
15,5
Dimensions Width (mm)
370
Certified Power Rating

* Power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
