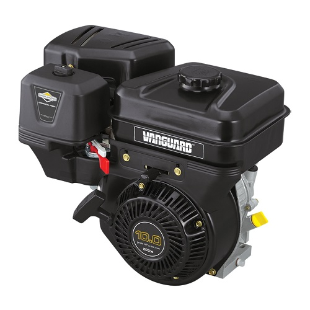

VANGUARD™ 8-10 Gross HP

The premium VANGUARD horizontal engine range has been designed and application engineered to deliver the most durable performance. The premium engine range offers a full 3-Year limited global warranty for commercial use which demonstrates our commitment to deliver the best performing products. For terms and conditions please visit www.vanguardengines.co.uk.

FIND A DEALER

Product Details

Super Lo-Tone™ Muffler

Significantly reduces noise and delivers exceptional tonal quality

Cartridge Air Cleaner with foam pre-cleaner (dual element)

Provides improved protection against airborne debris entering the engine

Cast Iron Sleeve

Adds integrity and durability that withstand wear and abuse while providing improved oil control.

OHV Technology

Optimized performance that delivers longer engine life and improved fuel economy

Dual Ball Bearings

Provides added durability and extends engine life

Reduced Evaporative Fuel Tank Cap

Reduces evaporative emissions from the fuel tank

Higher Torque

Provides more power resulting in improved equipment productivity

Magnetron® Electronic Ignition System

Ensures maintenance-free, easy starting

Mechanical Governor

Controls the engine speed to deliver more usable power under heavy usage

Optional Electric Start

Provides simple key starting

Stronger Forged Crankshaft and Cast Iron Camshaft

Provides added durability

For More Information

Visit our Glossary of Engine Terms

TransportGuard™

By simply operating one switch the engine ignition and fuel supply are shut off ensuring equipment is ready for transport.

Engine Technology Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number 19L2
Gross Power HP** (kW) @ 3’600 rpm 10.0 [7.5]
Displacement (cc) 305
Cylinder Cast Iron Sleeve
Bore (mm) 79.2
Stroke (mm) 61.9
Fuel Tank Capacity (l) 3.6
Oil Capacity (l) 0.8
Dry Weight (kg) 25.9
Dimensions Length (mm) 318
Dimensions Width (mm) 421
Dimensions Height (mm) 406

* Power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
** Power levels are stated gross power (horsepower) per SAE J1940 as rated by Briggs & Stratton.

Engine Technology Single cylinder, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number 19L1
Gross Power HP** (kW) @ 3’600 rpm 8.0 [5.9]
Displacement (cc) 305
Cylinder Cast Iron Sleeve
Bore (mm) 79.2
Stroke (mm) 61.9
Fuel Tank Capacity (l) 3.6
Oil Capacity (l) 0.8
Dry Weight (kg) 25.9
Dimensions Length (mm) 318
Dimensions Width (mm) 421
Dimensions Height (mm) 406

* Power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
** Power levels are stated gross power (horsepower) per SAE J1940 as rated by Briggs & Stratton.
