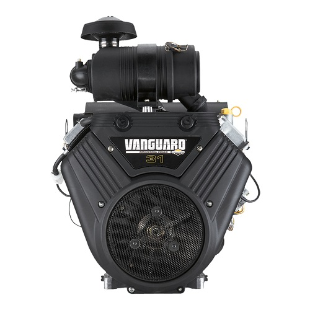

VANGUARD™ 25-31 Gross HP

The premium VANGUARD V-Twin horizontal engine range has been designed and application engineered to deliver the most durable performance. The premium engine range offers a full 3-Year limited global warranty for commercial use which demonstrates our commitment to deliver the best performing products. For terms and conditions please visit www.vanguardengines.co.uk.

FIND A DEALER

Product Details

Centrifugal Multi-Stage Air Cleaner

Provides maximum protection against airborne debris entering the engine

Cast Iron Sleeve

Adds integrity and durability that withstand wear and abuse while providing improved oil control.

OHV Technology

Optimized performance that delivers longer engine life and improved fuel economy

High Radial Load PTO Bearings

Provides extra durability and extends engine life

Full Pressure Lubrication with Oil Filter

Is similar to an automotive engine that continuously delivers oil under pressure to critical engine components for maximum lubrication and long engine life.

Higher Torque

Provides more power resulting in improved equipment productivity

Magnetron® Electronic Ignition System

Ensures maintenance-free, easy starting

Float Feed Carburetor

Optimized fuel delivery for improved startability and superior performance

Optional Dual Element Air Cleaner

For added protection against airborne debris

High Oil Fill Tube

Allows for easier maintenance

Mechanical Governor

Controls the engine speed to deliver more usable power under heavy usage

Stronger Forged Crankshaft and Cast Iron Camshaft

Provides added durability

For More Information

Visit our Glossary of Engine Terms

Twin Cylinders

V-Twin engine design provides better ballance and allows for increased power.

Engine Technology V-Twin, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number 5404
Gross Power HP** (kW) @ 3’600 rpm 25.0 [18.6]
Displacement (cc) 896
Cylinder Cast Iron Sleeve
Bore (mm) 85.5
Stroke (mm) 78.0
Oil Capacity (l) 2.3
Dry Weight (kg) 56.8
Dimensions Length (mm) 379
Dimensions Width (mm) 496
Dimensions Height (mm) 725

* Power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
** Power levels are stated gross power (horsepower) per SAE J1940 as rated by Briggs & Stratton.

Engine Technology V-Twin, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number 5424
Gross Power HP** (kW) @ 3’600 rpm 29.0 [21.6]
Displacement (cc) 896
Cylinder Cast Iron Sleeve
Bore (mm) 85.5
Stroke (mm) 78.0
Oil Capacity (l) 2.3
Dry Weight (kg) 56.8
Dimensions Length (mm) 379
Dimensions Width (mm) 496
Dimensions Height (mm) 725

* Power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
** Power levels are stated gross power (horsepower) per SAE J1940 as rated by Briggs & Stratton.

Engine Technology V-Twin, 4-stroke, air-cooled, OHV (Overhead Valve)
Model Number 5434
Gross Power HP** (kW) @ 3’600 rpm 31.0 [23.1]
Displacement (cc) 896
Cylinder Cast Iron Sleeve
Bore (mm) 85.5
Stroke (mm) 78.0
Oil Capacity (l) 2.3
Dry Weight (kg) 56.8
Dimensions Length (mm) 379
Dimensions Width (mm) 496
Dimensions Height (mm) 725

* Power levels are stated gross torque per SAE J1940 as rated by Briggs & Stratton.
** Power levels are stated gross power (horsepower) per SAE J1940 as rated by Briggs & Stratton.
