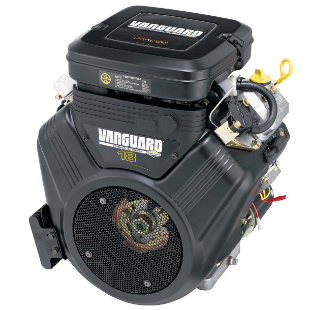

Vanguard™ 18.0 HP V-Twin

Each engine is design - engineered to dependably take on the most demanding commercial applications. As the lightest and most compact V-Twins among leading brands, the Vanguard “small blocks” feature a number of advanced technologies and integrated components to put more power in a smaller space.

briggsandstratton /

Product Details

V-Twin OHV Technology

Superior balance, low vibration, lower emissions, improved valve life, better fuel economy and higher HP/Weight.

Dura-Bore Cast Iron Cylinder Sleeve

Assures long engine life and improved oil control

Cooler Cleaner Technology

Efficiently reduces engine and oil temperatures by 25-30 degrees while effectively managing airborne debris

Vanguard™ 18.0 HP V-Twin
Displacement (cc) 570
Bore (mm) 72
Stroke (mm) 70
Weight (kg) 33.6
Oil Capacity 1.7
Cylinders 2 Cast Iron Sleeves
Air Cleaner Dual Clean™
Lubrication Full Pressure
Shaft Horizontal and Vertical
Certified Power Rating Download Power Curve
Marketing Model 3564

*All power levels are stated gross horsepower at 3600 rpm per SAE J1940 as rated by Briggs & Stratton.
