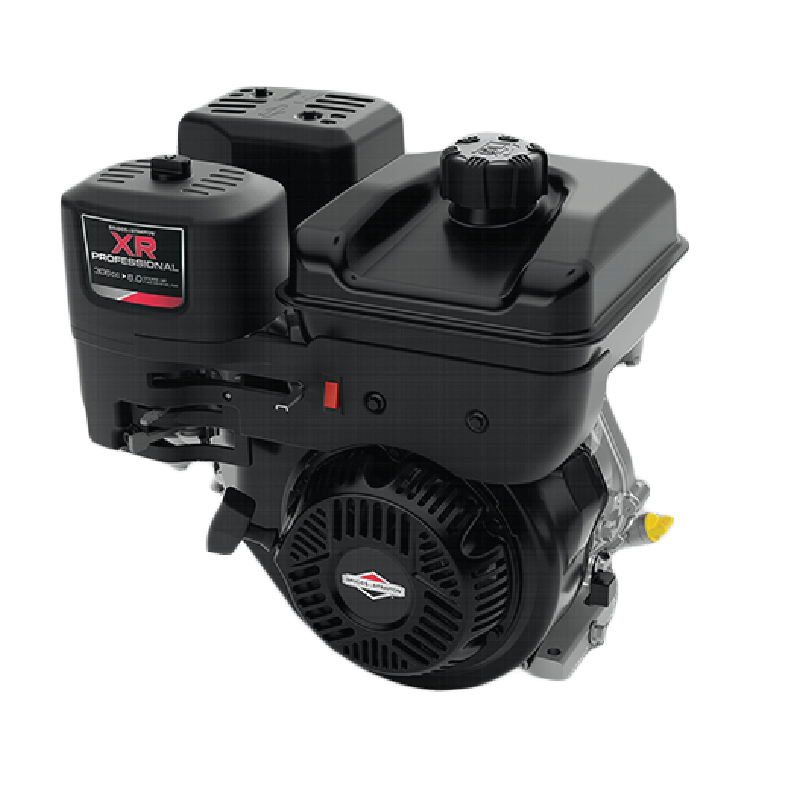

XR® 10.0 HP Gasoline Engine

XR® 10.0 HP Gasoline Engine

The XR® 3.5-13.5 HP Gasoline Engines deliver easy starting, quieter operation, and life-extending features. With OHV technology coupled with a Lo-Tone muffler, these engines save on fuel economy with optimal power, greater torque, and improved sound and tonal quality.

25

Weight (Kg)

306

Displacement (cc)

1.10

Oil Capacity (L)

82

Bore (mm)

Features

OHV

Runs cooler and cleaner, delivering more power, longer engine life and improved fuel economy.

Lo-ToneMuffler

Delivers exceptional sound and tonal quality.

Specifications

Only 2 products can be compared at once. Please remove one of your selections to compare this product.

Only 3 products can be compared at once. Please remove one of your selections to compare this product.

At least one product must be displayed. Please select another option to remove this product

Model Number
19N1
Horsepower (HP, gross)*
10.0
Torque (ft-lbs, gross)*
14.5
Displacement (cc)
306
Number of Cylinders
Single
Starter
Manual Choke
Bore (mm)
82
Stroke (mm)
58
Oil Capacity (L)
1.10
Fuel Type
Gasoline
Fuel Tank Capacity
3.0
Length (mm)
327
Width (mm)
309
Height (mm)
442
Weight (kg)
25
Air Filter
Dual Element Cartridge
Lubrication System
Dura-Lube Splash Lubrication
Muffler
Lo-Tone™
Certified Power Rating

*Power levels are stated gross horsepower per SAE J1940 as rated by Briggs & Stratton.
