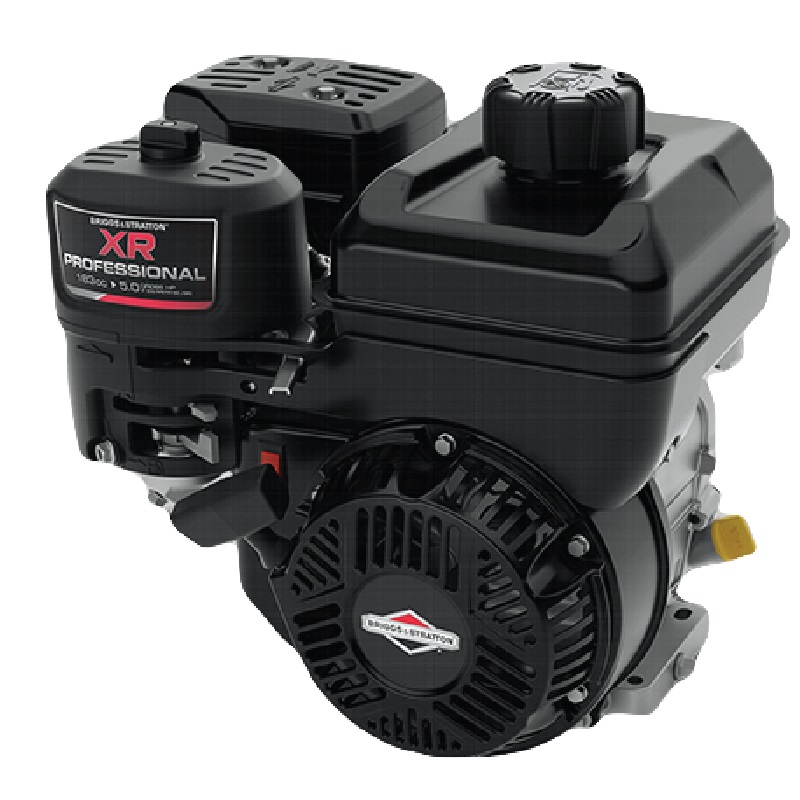

XR® 5.0 HP Gasoline Engine
XR® 5.0 HP Gasoline Engine

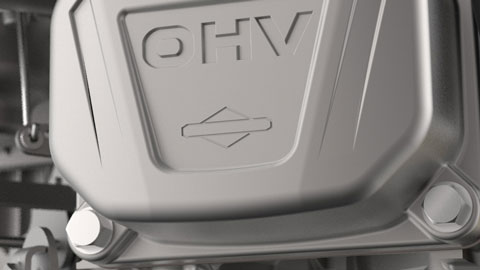

The XR® 3.5-13.5 HP Gasoline Engines deliver easy starting, quieter operation, and life-extending features. With OHV technology coupled with a Lo-Tone muffler, these engines save on fuel economy with optimal power, greater torque, and improved sound and tonal quality.
Click and drag image to rotate.
15
Weight (Kg)
163
Displacement (cc)
0.60
Oil Capacity (L)
68
Bore (mm)
Features
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Model Number
1062
Horsepower (HP, gross)*
5.0
Torque (ft-lbs, gross)*
7.5
Displacement (cc)
163
Number of Cylinders
Single
Starter
Manual Choke
Bore (mm)
68
Stroke (mm)
45
Oil Capacity (L)
0.60
Fuel Type
Gasoline
Fuel Tank Capacity
3.0
Length (mm)
287
Width (mm)
370
Height (mm)
323
Weight (kg)
15
Air Filter
Flat Panel or Dual Element Cartridge
Lubrication System
Dura-Lube Splash Lubrication
Muffler
Lo-Tone™
Certified Power Rating
*Power levels are stated gross horsepower per SAE J1940 as rated by Briggs & Stratton.
