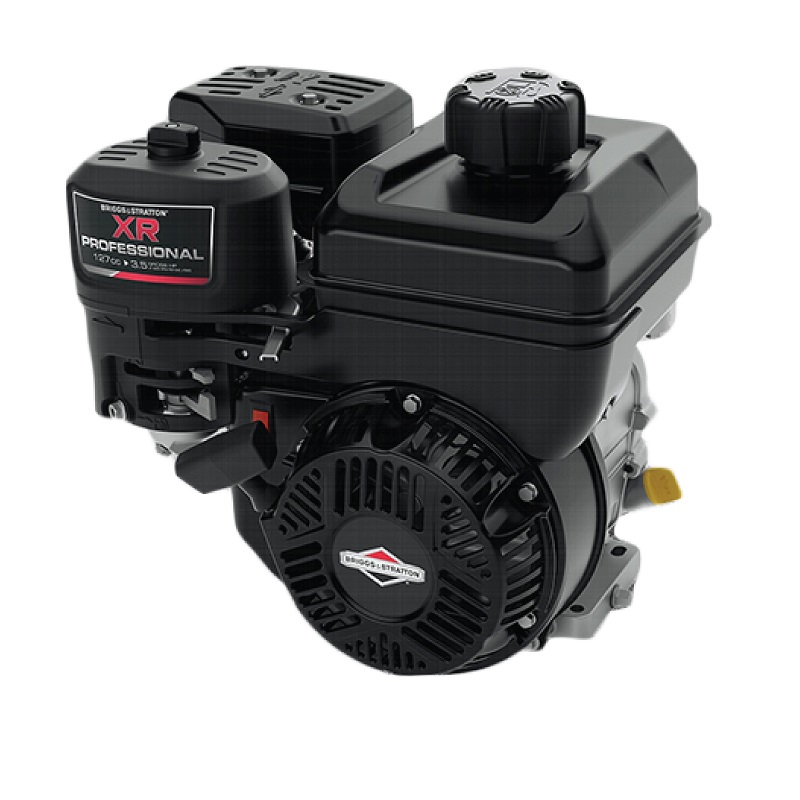

XR® 3.5 HP Gasoline Engine
XR® 3.5 HP Gasoline Engine
The XR® 3.5-13.5 HP Gasoline Engines deliver easy starting, quieter operation, and life-extending features. With OHV technology coupled with a Lo-Tone muffler, these engines save on fuel economy with optimal power, greater torque, and improved sound and tonal quality.
Click and drag image to rotate.
13
Weight (Kg)
127
Displacement (cc)
0.60
Oil Capacity (L)
62
Bore (mm)
Features
Specifications
Only 2 products can be compared at once. Please remove one of your selections to compare this product.
Only 3 products can be compared at once. Please remove one of your selections to compare this product.
At least one product must be displayed. Please select another option to remove this product
Model Number
0831
Horsepower (HP, gross)*
3.5
Torque (ft-lbs, gross)*
5.5
Displacement (cc)
127
Number of Cylinders
Single
Starter
Manual Choke
Bore (mm)
62
Stroke (mm)
42
Oil Capacity (L)
0.60
Fuel Type
Gasoline
Fuel Tank Capacity
1.9
Length (mm)
261
Width (mm)
347
Height (mm)
326
Weight (kg)
13
Air Filter
Dual Element Cartridge
Lubrication System
Dura-Lube Splash Lubrication
Muffler
Lo-Tone™
Certified Power Rating
*Power levels are stated gross horsepower per SAE J1940 as rated by Briggs & Stratton.
